GTX 2446 (14AZ809H063) - Troy-Bilt 46" Garden Tractor (2003) Deck Assembly H 46 Inch Parts Diagram

46" Garden Tractor

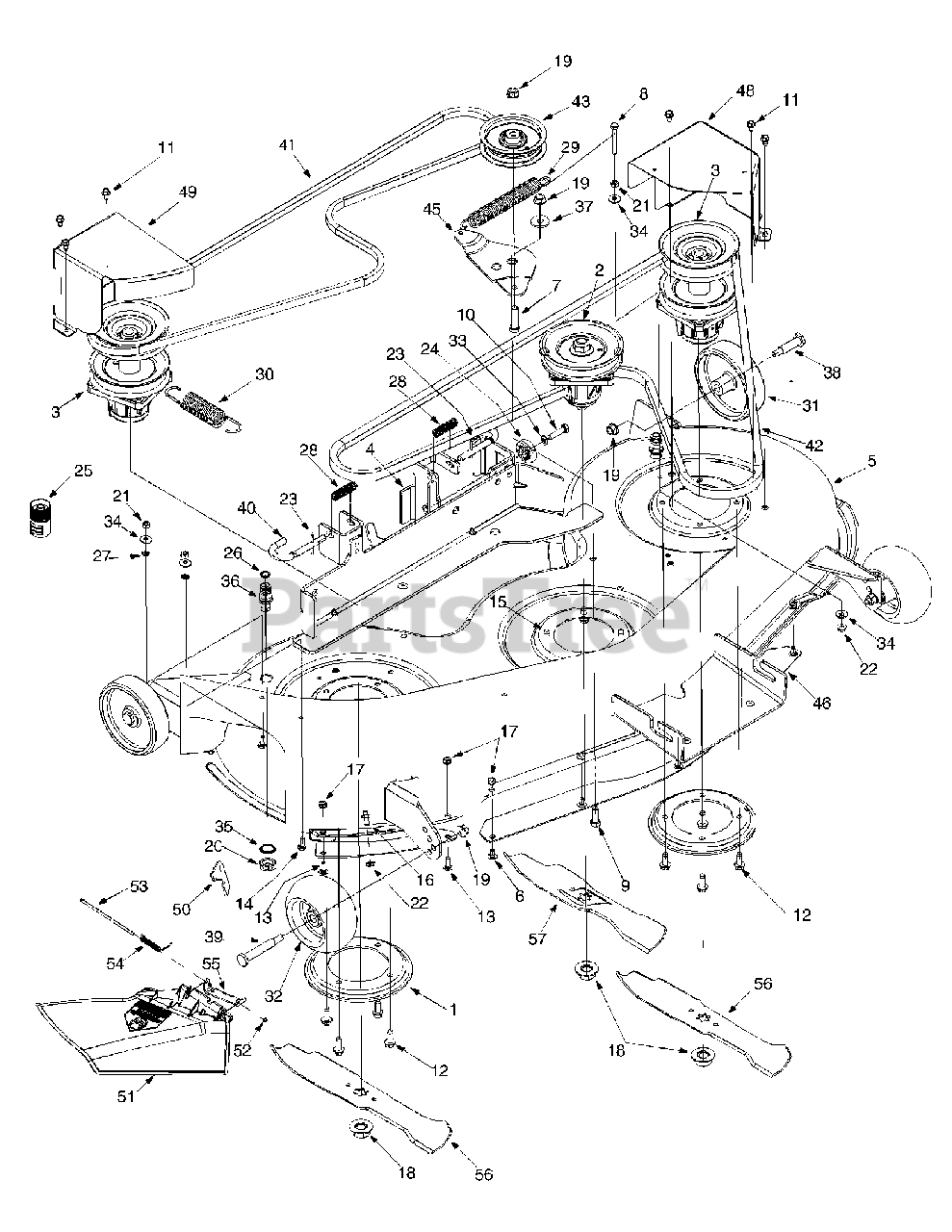

Deck Assembly H 46 Inch Parts Diagram

  • Title

1

Troy-Bilt 17982-0637

Spindle Reinforcement Plate

$35.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 918-0430B

Spindle Assembly, 5.0 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 756-1187

Pulley Only

$35.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 918-0595

Double Pulley Spindle Assembly
(Superseded to 918-0593A)

$178.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 756-1214

Double Pulley Only

$116.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-0254B

Deck Adjustment Bracket Assembly

Variations

Troy-Bilt 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 6

0

Troy-Bilt 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 6

0

Troy-Bilt 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 6

0

Troy-Bilt 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

5

MTD 983-04053-0637

46-inch Deck Assembly

$

$

Not available

6

Troy-Bilt 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0344

Hex Cap Screw, 3/8-16 x 1.5

$5.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-0501

Hex Cap Screw, 1/4-20 x 2.0

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Hex Cap Screw, 5/8-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Self-tapping Screw,1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0650

Self-tapping Screw,15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0703

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 911-04069

Grasscatcher Pin

$7.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

18

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 912-0641

Hex Nut M16
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 912-3027

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 917-04074

Deck Adjustment Gear

Note: Replaces 717-1553B

$12.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 921-04041

Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 921-0417

O-Ring Seal, 16mm x 11mm

$

$

Not available

27

Troy-Bilt 726-0233

Push Nut. .25 x .5

$3.99

$

In Stock, Qty 11

0

28

Troy-Bilt 932-0306A

Compression Spring, .406 x .531 x 1.75

$7.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 932-0594A

Extension Spring, .91 x 7.3

$13.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 732-0934

Extension Spring

$10.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 753-04856A

Deck Wheel

Note: Replaces 734-3058B

$19.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 12

0

35

Troy-Bilt 936-0760

Lock Washer

$3.99

$

In Stock, Qty 14

0

36

Troy-Bilt 737-04003D

Nozzle: Deck Wash-Out System

$21.99

$

In Stock, Qty 18

0

37

Troy-Bilt 938-0347

Shoulder Spacer, .625 x 1.16

$9.49

$

In Stock, Qty 13

0

38

Troy-Bilt 938-0373

Shoulder Screw

$8.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 938-3056

Shoulder Screw

$8.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 954-0349

Deck Belt, Poly

$40.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 954-0476

V-Belt

$72.99

$

In Stock, Qty 8

0

43

Troy-Bilt 756-0627D

Idler Pulley, 3.5

$28.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 783-0139B-0637

Idler Bracket

$20.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 783-0141-0637

Center Deck Skirt (Long)

$60.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 783-0142-0637

RH Deck Skirt (Short)

$45.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 783-1347C-0637

LH Belt Cover

$72.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 783-1450-0637

RH Belt Cover

$

$

Not available

50

N/A

Chute Stop

$

$

Not available

51

Troy-Bilt 931-1032B

Chute Deflector: Side Discharge
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 16

0

52

Troy-Bilt 926-0106

Speed Nut
(Superseded to 726-0106)

$

$

Not available

53

Troy-Bilt 911-0792

Hinge Pin

$4.49

$

In Stock, only 2 left!

0

54

Troy-Bilt 703-1693A

Mounting Bracket

$21.99

$

In Stock, only 4 left!

0

55

Troy-Bilt 732-0602A

Torsion Spring

$11.99

$

In Stock, Qty 5

0

56

Troy-Bilt 942-0611A

Blade: 16.28" Star

$29.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 942-0612A

Blade: 14.88" Star

$29.99

$

In Stock, Qty 20+
