GTX 2446 (14AZ809H063) - Troy-Bilt 46" Garden Tractor (2003) Hood Style 9 Parts Diagram

46" Garden Tractor

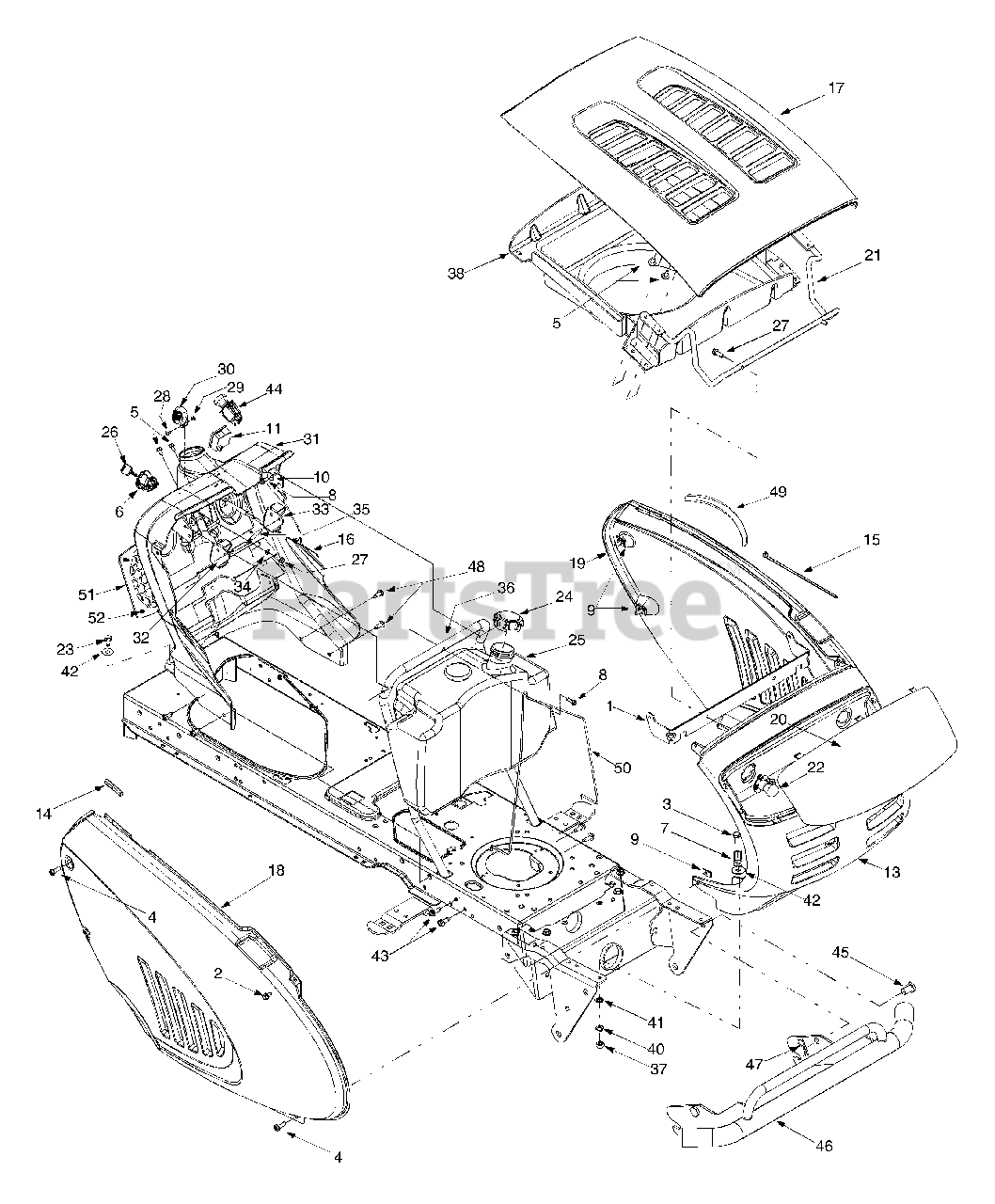

Hood Style 9 Parts Diagram

  • Title

1

Troy-Bilt 783-1346

Grill Support Bracket (9-style)
(Superseded to 783-1346A-0637)

Variations

Troy-Bilt 783-1346-0637

Support Bracket, Grill - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1017

Truss Phillips Screw, 1/4-20 x .625

$8.99

$

In Stock, Qty 14

0

6

Troy-Bilt 725-1741

Ignition Switch
(Superseded to 925-1741)

$47.99

$

In Stock, Qty 15

0

7

Troy-Bilt 726-0272

Clamp, 9/16

$7.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-1976

Systems Indicator Monitor
(Superseded to 925-1976)

$

$

Not available

?12

Troy-Bilt 712-3004A

Hex Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 731-2119A

Grille (9-style)
(Superseded to 731P2119A)

$

$

Not available

14

Troy-Bilt 731-0511

Trim Strip, 4

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 725-0175

Cable Tie, 3/16 x .05 x 7.4

$

$

Currently unavailable

16

Troy-Bilt 746-1085

Choke Knob/Cable
(Superseded to 946-1085A)

$32.99

$

In Stock, Qty 16

0

17

Troy-Bilt 783-0783

Hood (9-style)
(Superseded to 783-0783A)

Variations

Troy-Bilt 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

Troy-Bilt 783-0784

RH Side Panel
(Superseded to 783-0784A)

Variations

Troy-Bilt 783-0784-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0784-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0784-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

19

Troy-Bilt 783-04200

LH Side Panel

Variations

Troy-Bilt 783-04200-0638

PANEL-SIDE LH 9 ST - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-04200-0709

PANEL-SIDE LH 9 ST - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

MTD 731-2637

Headlight Lens
(Superseded to 931-2637)

$

$

Not available

21

Troy-Bilt 747-2138

Hood Hinge Rod

$

$

Not available

22

Troy-Bilt 625-0051

Headlight Assembly
(Superseded to 925-0051)

$17.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 710-0726

AB Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 10

0

25

Troy-Bilt 751-3213

Fuel Tank, 3 gallon
(Superseded to 751-10283B)

$185.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-3217

Truss Phillips Screw, #8-32 x .375

$7.49

$

In Stock, Qty 5

0

29

Troy-Bilt 712-0142

Hex Nut, #8-32

$4.99

$

In Stock, Qty 8

0

30

Troy-Bilt 731-1857

Throttle Control Knob

$15.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 731-2225C

Dash Panel, 8/9-style, Electric PTO
(Superseded to 631-04038)

$

$

Not available

32

Troy-Bilt 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

33

Troy-Bilt 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 747-1196

Brake/Cruise Pivot Rod

$16.99

$

Usually ships in 3-6 days

0

36

MTD 749-1087C

Dash Support Tube

$

$

Not available

37

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-2270

Hood Plenum
(Superseded to 731-2270A)

$

$

Not available

?39

Troy-Bilt 726-3046

Ratchet Clip

$4.49

$

In Stock, Qty 15

0

40

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 726-0201

Speed Nut, .3125

$7.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-3078

Flat Washer, .349 x 1.0 x .063

$4.99

$

In Stock, Qty 6

0

43

Troy-Bilt 710-0650

TT Screw, 5/16-18 x .875

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$74.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 711-0332

Clevis Pin, .50 x .78
(Superseded to 911-0332)

$17.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 768-0010

Bumper Assembly
(Superseded to OEM-190-679)

$98.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 714-0145

Internal Cotter Pin

$5.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 710-1611B

TT Screw 5/16-18 x 0.75

$7.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 735-04019

Seal: Panel
(Superseded to 935-04019)

$

$

Not available

50

Troy-Bilt 747-04132

Tank Support Rod
(Superseded to 747-04132A)

$

$

Not available

51

Troy-Bilt 735-04023

Cargo Net

$

$

Not available

52

Troy-Bilt 726-04029

Ratchet Clip

$4.49

$

Usually ships in 3-6 days

0

Troy-Bilt 629-0469A

Headlight Wire Harness
(Superseded to 929-0469B)

$

$

Not available

Troy-Bilt 629-1067

Tractor Wire Harness

$347.99

$

Usually ships in 3-6 days

0
