GV150 A1 (GV150) - Honda Engine, Made in Japan (SN: GV150-2000001 - GV150-2034737) GV150 CRANKSHAFT + CAMSHAFT + PISTON Parts Diagram

Engine, Made in Japan

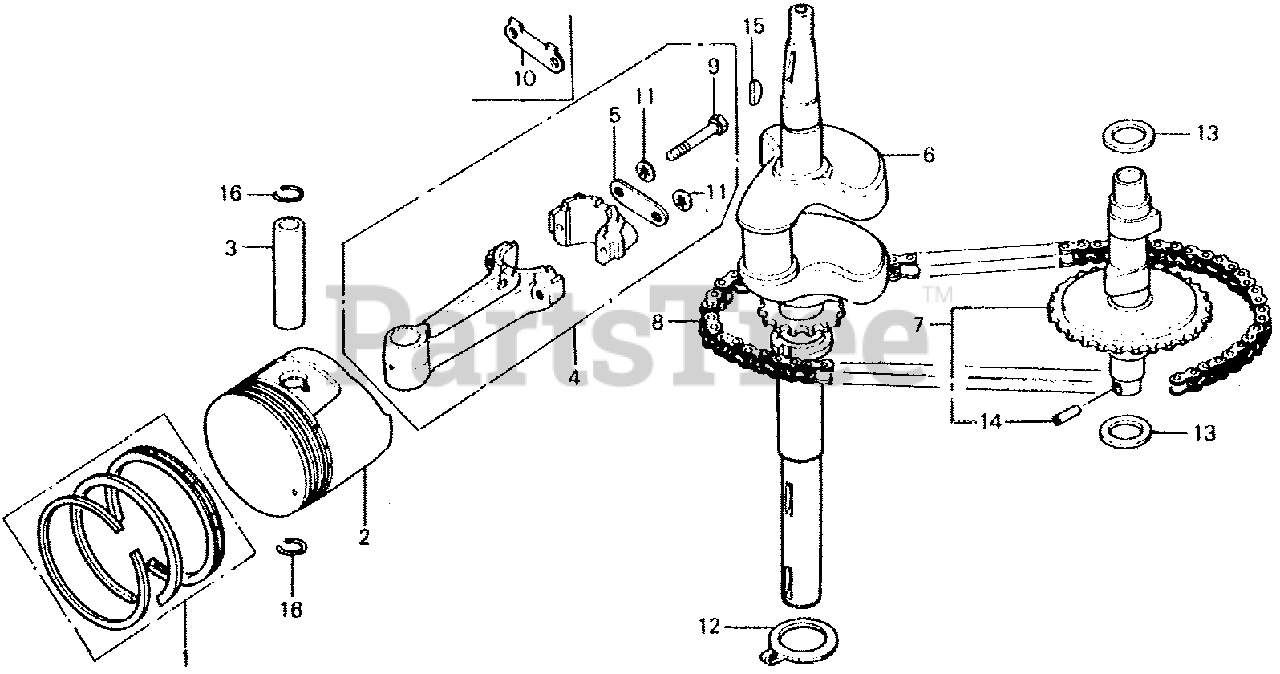

GV150 CRANKSHAFT + CAMSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-887-000

RING SET, PISTON (STD) (Honda Code 0635045).

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13011-887-000

RING SET, PISTON (OS 0.25) (Honda Code 0635052). (OS)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 0635060). (OS)

Note: (Optional).

$

$

Not available

1

Honda 13013-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (OS) (Honda Code 0635078).

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

2

Honda 13101-887-003

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 0707356).

$104.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (OS 0.25) (OS) (Honda Code 0635094).

Note: (Optional).

$

$

Not available

2

Honda 13103-887-000

PISTON (OS 0.50) (OS) (Honda Code 0635102).

Note: (Optional).

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (OS) (Honda Code 0635110).

Note: (Optional).

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON (Honda Code 0636183).

$13.99

$

Usually ships in 3-6 days

0

4

Honda 13200-888-030

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0871558).
(Superseded to 13200-888-505)

$71.99

$

Usually ships in 3-6 days

0

4

Honda 13200-888-305

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 0905620). (UNDER SIZE)

Note: (Optional). Use up to Engine SN 2055172.

$

$

Currently unavailable

4

Honda 13200-888-335

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 0871566). (US 0.25)

Note: (Optional).

$

$

Not available

5

Honda 13281-879-000

WASHER A, CONNECTING ROD (Honda Code 0452185).

Note: Use up to Engine SN 2088552.

$

$

Not available

5

Honda 13281-888-000

WASHER, CONNECTING ROD (Honda Code 0905638).

Note: Use from Engine SN 2088553.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 13311-888-000

CRANKSHAFT (N1) (Honda Code 0671750).

$470.99

$

Usually ships in 3-6 days

0

7

Honda 14110-888-000

CAMSHAFT ASSY. (Honda Code 0671776).

$170.99

$

Usually ships in 3-6 days

0

8

Honda 14411-888-003

SEE PART DETAILS - SUP; CHAIN, CAM (Honda Code 0671784).

$

$

Currently unavailable

8

Honda 14411-888-305

SEE PART DETAILS - PRI; CHAIN, CAM (Honda Code 0965012). (NOT AVAILABLE)

$45.99

$

Usually ships in 3-6 days

0

9

Honda 90001-883-000

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD (6MM) (Honda Code 0636837).

Note: Use up to Engine SN 2055172.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (Honda Code 0809145). (NOT AVAILABLE)

Note: Use from Engine SN 2055173 to 2088552.

$

$

Currently unavailable

9

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM) (Honda Code 0821272).

Note: Use from Engine SN 2088553.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90431-883-000

WASHER B, CONNECTING ROD (Honda Code 0636910).

Note: Use up to Engine SN 2055172.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90432-883-000

WASHER, LOCK (6MM) (Honda Code 0809160). (N/A: SEE ASSEMBLY)

Note: Use from Engine SN 2055173 to 2088552.

$

$

Currently unavailable

11

Honda 90432-889-003

SEE PART DETAILS - PRI; WASHER, LOCK (7MM) (Honda Code 0821280).

Note: Use from Engine SN 2088553.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90450-888-000

WASHER, THRUST (35MM) (Honda Code 0671610).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94305-25162

PIN, SPRING (2.5X16) (Honda Code 0671644).

$2.49

$

Usually ships in 3-6 days

0

15

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0053777).

$1.99

$

In Stock, Qty 11

0

16

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM) (Honda Code 0747808).
(Superseded to 94601-15000)

Note: Use from Engine SN 2001163.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM) (Honda Code 0156018).

$1.49

$

Usually ships in 3-6 days

0
