GV150 A2 (GV150) - Honda Engine, Made in Japan (SN: GV150-2000001 - GV150-2041727) CYLINDER BARREL + OIL PAN Parts Diagram

Engine, Made in Japan

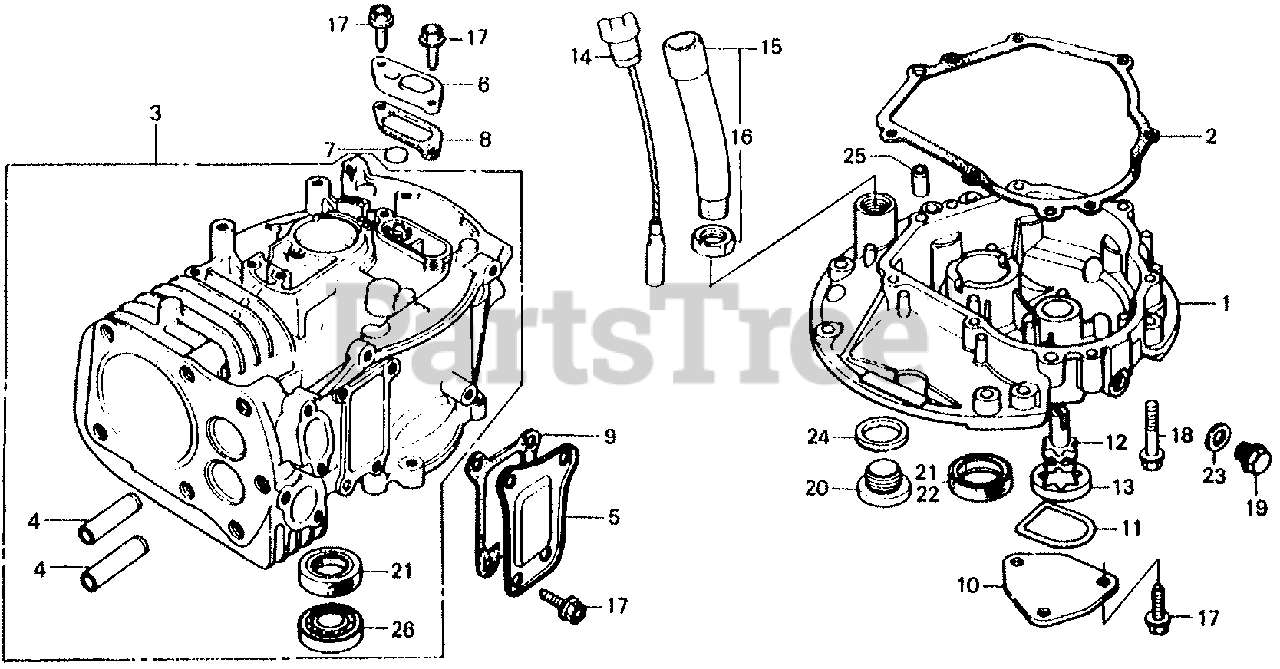

CYLINDER BARREL + OIL PAN Parts Diagram

  • Title

1

Honda 11310-888-010

SEE PART DETAILS - PRI; PAN, OIL (Honda Code 0747709).

$

$

Not available

2

Honda 11381-888-000

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 0671677). (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 12000-888-335

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 0806653).

$

$

Currently unavailable

4

Honda 12133-887-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4231213).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 12134-887-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS) (Honda Code 0676288).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 12361-888-000

COVER, TAPPET (Honda Code 0671719).

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER (Honda Code 0671727).

$14.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.99

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP (Honda Code 0671735).

$3.49

$

In Stock, only 1 left!

0

9

Honda 12375-888-000

GASKET, TAPPET COVER (Honda Code 0671743).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 15130-888-000

COVER, OIL PUMP (Honda Code 0671834).

$

$

Not available

11

Honda 15131-888-000

O-RING, COVER (Honda Code 0671842).

$

$

Not available

12

Honda 15330-888-000

ROTOR (INNER) (Honda Code 0671859).

$

$

Currently unavailable

13

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER) (Honda Code 0307751).

$

$

Not available

14

Honda 15620-888-671

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 0688127).

$21.99

$

Usually ships in 3-6 days

0

15

Honda 15630-888-670

PIPE, OIL FILLER (Honda Code 0671883).

$38.99

$

Usually ships in 3-6 days

0

16

Honda 90011-883-630

NUT, OIL FILLER (Honda Code 0671511).

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

18

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.99

$

In Stock, Qty 6

0

19

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

Note: Use from Engine SN 2025878.

$

$

Not available

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

Note: Use from Engine SN 2025878.

$5.99

$

In Stock, only 2 left!

0

20

Honda 90131-888-010

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 0747741).

$

$

Not available

21

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$10.99

$

In Stock, only 3 left!

0

21

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$10.99

$

In Stock, only 3 left!

0

22

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$5.49

$

In Stock, only 1 left!

0

22

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$5.49

$

In Stock, only 1 left!

0

23

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

Note: Use from Engine SN 2025878.

$1.99

$

In Stock, Qty 20+

0

24

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, Qty 15

0

25

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0

26

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$27.99

$

In Stock, only 4 left!

0
