GV150 K1 A1D (GV150) - Honda Engine, Made in Japan (SN: GV150-3000001 - GV150-3294909) CARBURETOR Parts Diagram

Engine, Made in Japan

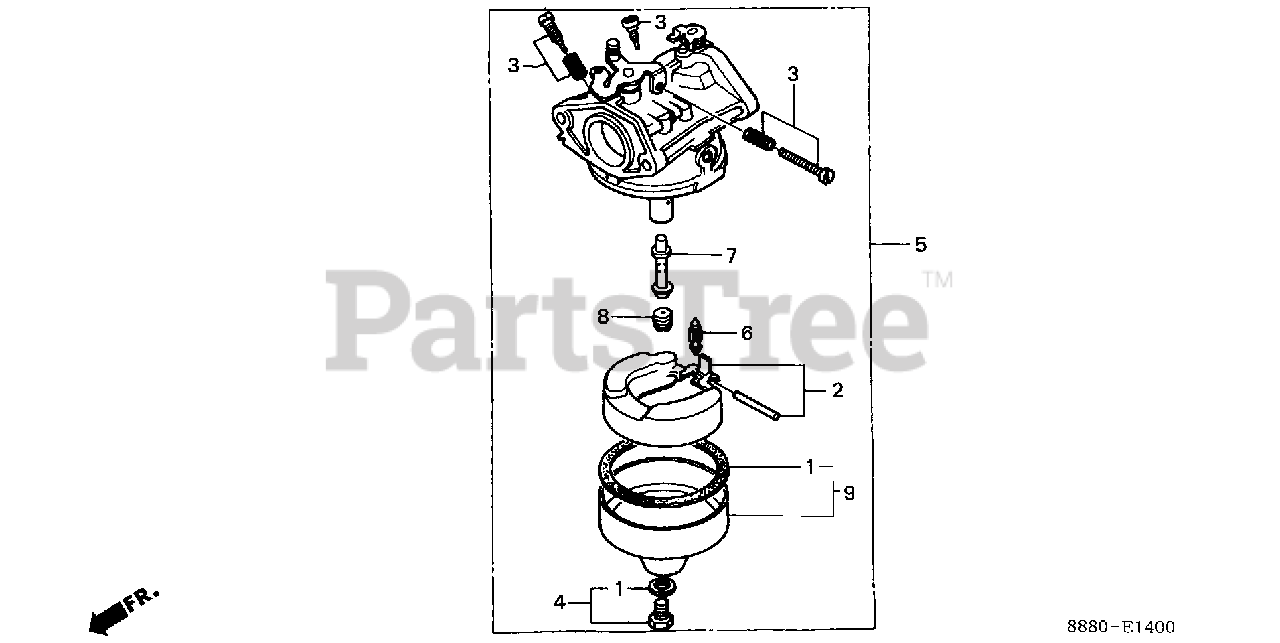

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET (CARBURETOR NO.)

Note: Use up to Engine SN BB27A D.

$14.99

$

In Stock, Qty 20+

0

1

Honda 16010-883-015

GASKET SET (CARBURETOR NO.)

Note: Use from Engine SN BB27A E.

$14.99

$

In Stock, Qty 20+

0

2

Honda 16013-883-005

FLOAT SET

$44.99

$

In Stock, only 2 left!

0

3

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use up to Engine SN BB27A C.

$

$

Not available

3

Honda 16016-888-005

SCREW SET A (CARBURETOR NO.)

Note: Use from Engine SN BB27A D to BB27A D.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16016-894-005

SCREW SET A (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BB27A E.

$

$

Currently unavailable

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16100-888-065

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB27A E)
(Superseded to 16100-888-075)

$

$

Not available

6

Honda 16155-883-005

VALVE, FLOAT

$30.99

$

In Stock, only 1 left!

0

7

Honda 16166-888-005

NOZZLE, MAIN

$

$

Not available

8

Honda 99101-124-0580

JET, MAIN (#58)

$12.99

$

In Stock, only 1 left!

0

8

Honda 99101-124-0600

JET, MAIN (#60)

$14.99

$

In Stock, only 2 left!

0

8

Honda 99101-124-0620

JET, MAIN (#62)

$12.99

$

In Stock, only 2 left!

0

8

Honda 99101-124-0650

JET, MAIN (#65)

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BB27A E.

$29.99

$

Usually ships in 3-6 days

0

9

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB27A D.

$29.99

$

Usually ships in 3-6 days

0
