GV150 K1 A1D (GV150) - Honda Engine, Made in Japan (SN: GV150-3000001 - GV150-3294909) FLYWHEEL + POINTS Parts Diagram

Engine, Made in Japan

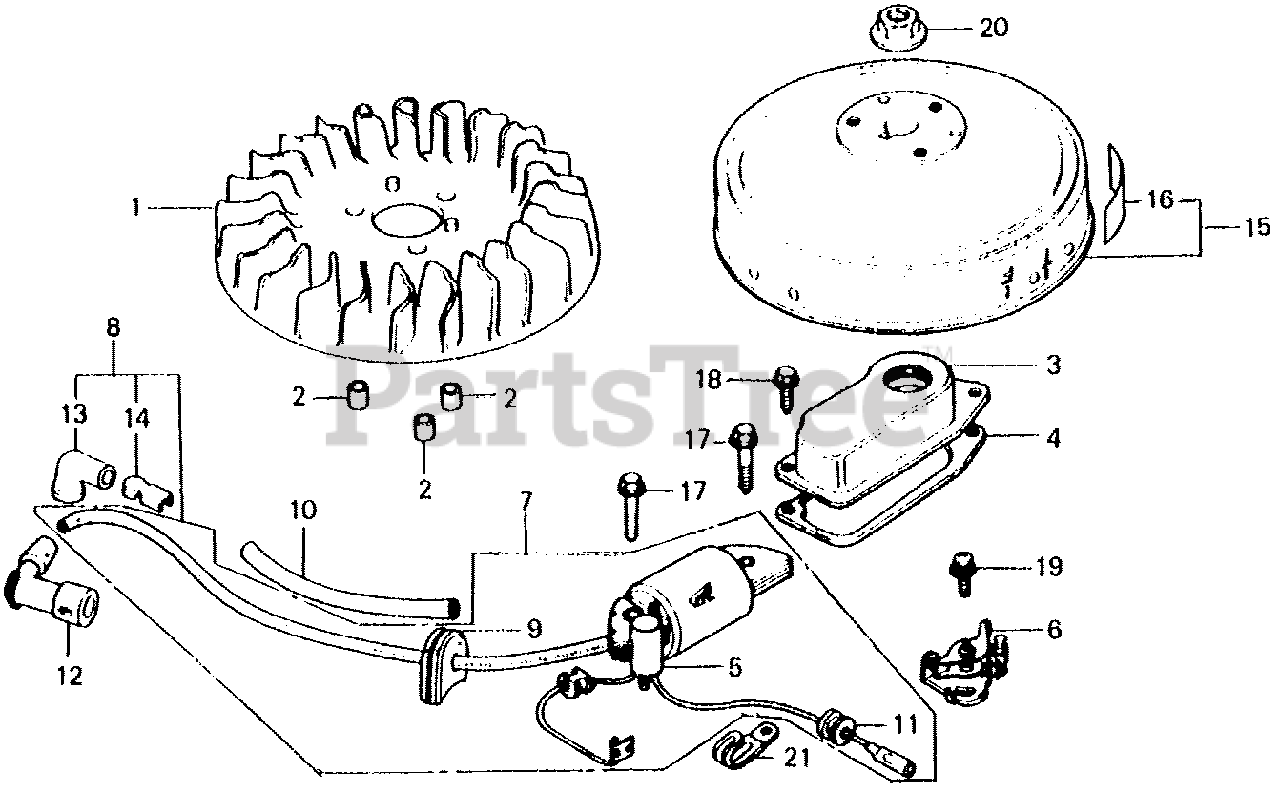

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-887-020

SEE PART DETAILS - PRI; FAN, COOLING (Honda Code 0747758).

$

$

Not available

2

Honda 19512-883-000

COLLAR, FAN (Honda Code 0636589).

$2.49

$

In Stock, Qty 5

0

3

Honda 30211-883-000

COVER, POINTS (Honda Code 0636720).

$

$

Not available

4

Honda 30215-883-000

SEE PART DETAILS - SUP; GASKET, POINT COVER (NOT AVAILABLE) (Honda Code 0636738).

$

$

Currently unavailable

4

Honda 30215-883-306

SEE PART DETAILS - PRI; GASKET, POINT COVER (Honda Code 4357380).

$

$

Not available

5

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

Note: Use from Engine SN 3040634.

$19.99

$

Usually ships in 3-6 days

0

6

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

$31.99

$

Usually ships in 3-6 days

0

8

Honda 30560-888-035

SEE PART DETAILS - PRI; COIL, IGNITION (Honda Code 0938399).

$

$

Currently unavailable

9

Honda 30563-883-000

GROMMET, WIRE (Honda Code 0636753).

$

$

Currently unavailable

9

Honda 30563-883-790

SEE PART DETAILS - PRI; GROMMET, WIRE (Honda Code 1063817).

$

$

Currently unavailable

11

Honda 30569-888-000

GROMMET, PRIMARY WIRE (Honda Code 0671446).

$

$

Currently unavailable

13

Honda 30701-888-013

SEE PART DETAILS - SUP; CAP, IGNITION (SUMITOMO) (Honda Code 1024439).

$

$

Currently unavailable

13

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

$

$

Not available

14

Honda 30702-888-003

TERMINAL, PLUG (Honda Code 0747782).

$8.49

$

Usually ships in 3-6 days

0

15

Honda 31100-887-010

SEE PART DETAILS - SUP; FLYWHEEL (Honda Code 0672410).

$

$

Currently unavailable

15

Honda 31100-887-030

SEE PART DETAILS - PRI; FLYWHEEL (POINT) (Honda Code 5975248).

$

$

Currently unavailable

16

Honda 87541-896-000

MARK, FLYWHEEL CAUTION (Honda Code 0929711).

Note: Use from Engine SN 3049024.

$

$

Not available

17

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

18

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.49

$

In Stock, only 2 left!

0

21

Honda 91405-671-000

CLIP, CABLE (Honda Code 0612549).

$11.99

$

Usually ships in 3-6 days

0
