GV200 N1B (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) FLYWHEEL + POINTS Parts Diagram

Engine, Made in Japan

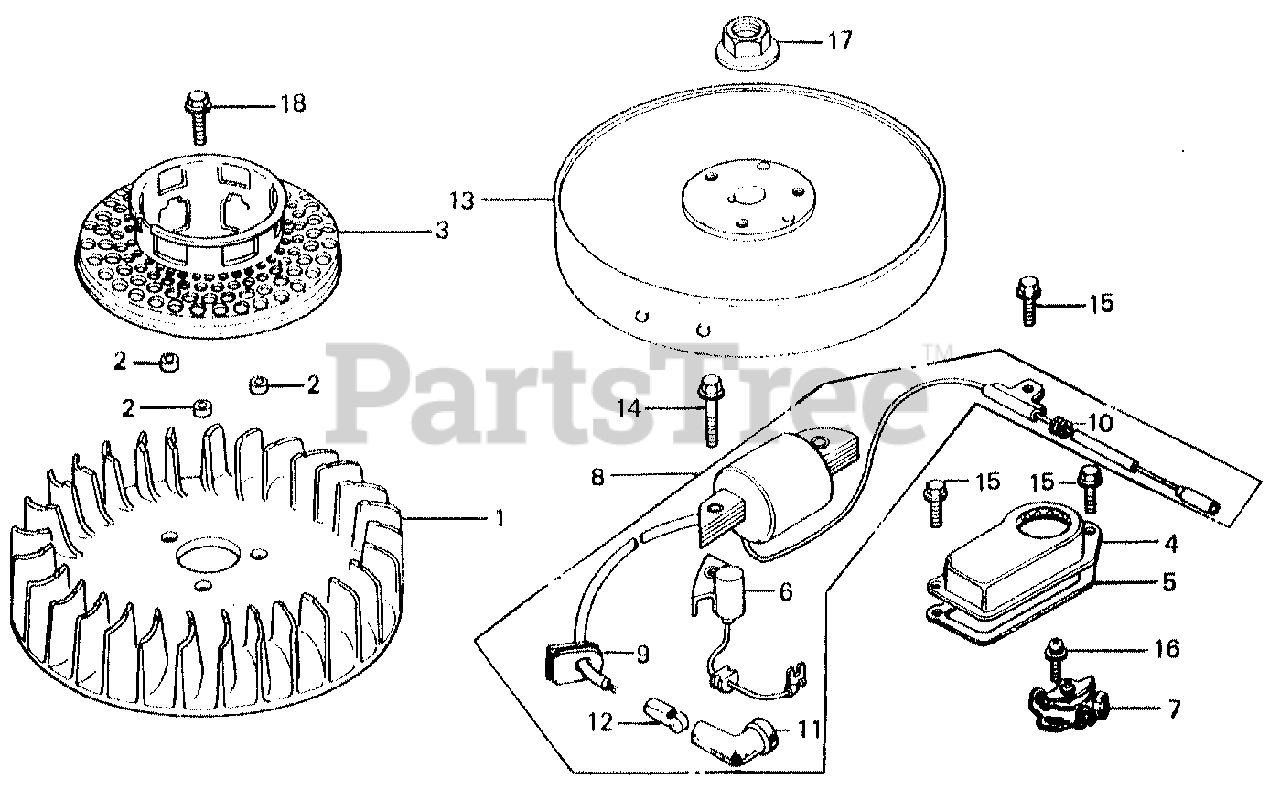

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-883-010

SEE PART DETAILS - SUP; FAN, COOLING (Honda Code 0635854).

$

$

Currently unavailable

2

Honda 19512-883-000

COLLAR, FAN (Honda Code 0636589).

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1010487).

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS (Honda Code 0636720).

$

$

Not available

5

Honda 30215-883-306

SEE PART DETAILS - PRI; GASKET, POINT COVER (Honda Code 4357380).

$

$

Not available

6

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

Note: Use from Engine SN 1026689.

$19.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

$31.99

$

Usually ships in 3-6 days

0

8

Honda 30560-894-003

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 0821157).

Note: Use up to Engine SN 1021707.

$

$

Currently unavailable

8

Honda 30560-894-013

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (NOT AVAILABLE) (Honda Code 1024421).

Note: Use from Engine SN 1021708.

$

$

Not available

9

Honda 30563-883-000

GROMMET, WIRE (Honda Code 0636753).

$

$

Currently unavailable

9

Honda 30563-883-790

SEE PART DETAILS - PRI; GROMMET, WIRE (Honda Code 1063817).

$

$

Currently unavailable

10

Honda 30569-888-000

GROMMET, PRIMARY WIRE (Honda Code 0671446).

$

$

Currently unavailable

11

Honda 30701-888-013

SEE PART DETAILS - SUP; CAP, IGNITION (SUMITOMO) (Honda Code 1024439).

$

$

Currently unavailable

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

$

$

Not available

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO) (Honda Code 4483301).

Note: Use from Engine SN 1040180.

$

$

Not available

12

Honda 30702-888-003

TERMINAL, PLUG (Honda Code 0747782).

$8.49

$

Usually ships in 3-6 days

0

13

Honda 31100-883-040

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5989405).

$87.99

$

Usually ships in 3-6 days

0

14

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.49

$

In Stock, only 2 left!

0

18

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0
