GV200 N4C (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) MUFFLER (DRUM TYPE) Parts Diagram

Engine, Made in Japan

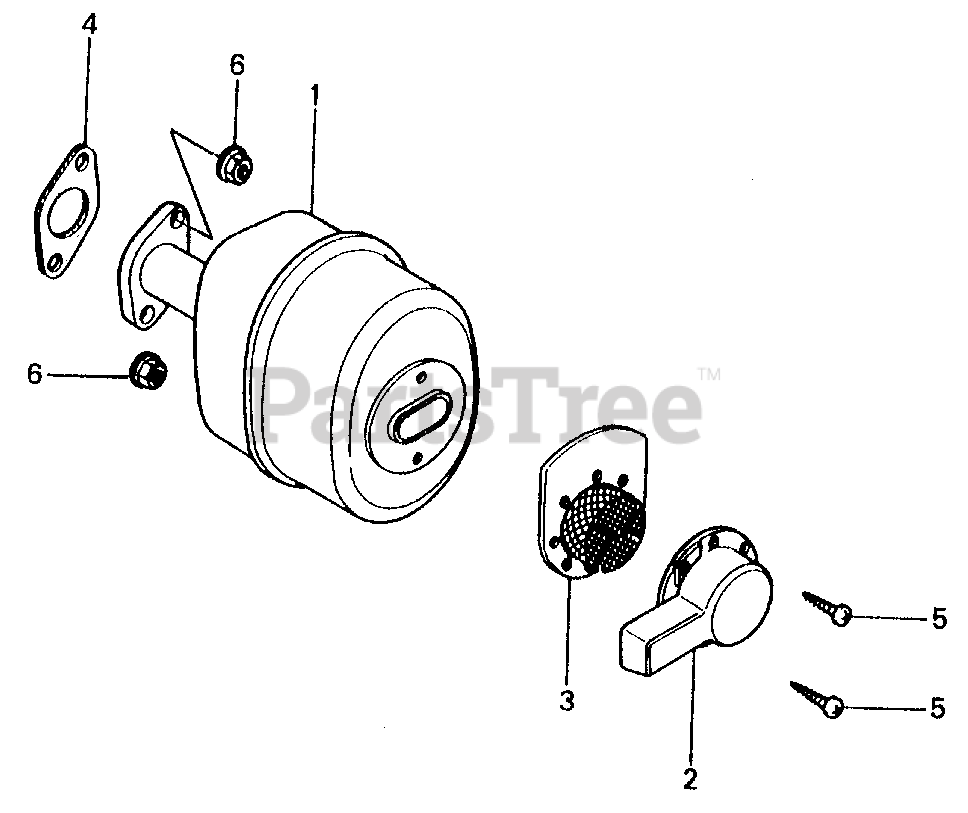

MUFFLER (DRUM TYPE) Parts Diagram

  • Title

1

Honda 18310-883-020

SEE PART DETAILS - PRI; MUFFLER ASSY. (Honda Code 0929810).
(Superseded to 18310-883-N00)

$48.99

$

Usually ships in 3-6 days

0

2

Honda 18331-894-660

CAP, MUFFLER (Honda Code 0821629).

$

$

Currently unavailable

3

Honda 18355-894-810

ARRESTER, SPARK (NOT AVAILABLE) (Honda Code 0821637).

Note: (Optional).

$16.99

$

Usually ships in 3-6 days

0

4

Honda 18381-883-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4327581).

$4.99

$

Usually ships in 3-6 days

0

5

Honda 90183-671-003

SCREW, TAPPING (4X8) (Honda Code 0752345).
(Superseded to 90002-ZG0-003)

$1.49

$

Usually ships in 3-6 days

0

6

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0
