GV200 N50 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) AIR CLEANER Parts Diagram

Engine, Made in Japan

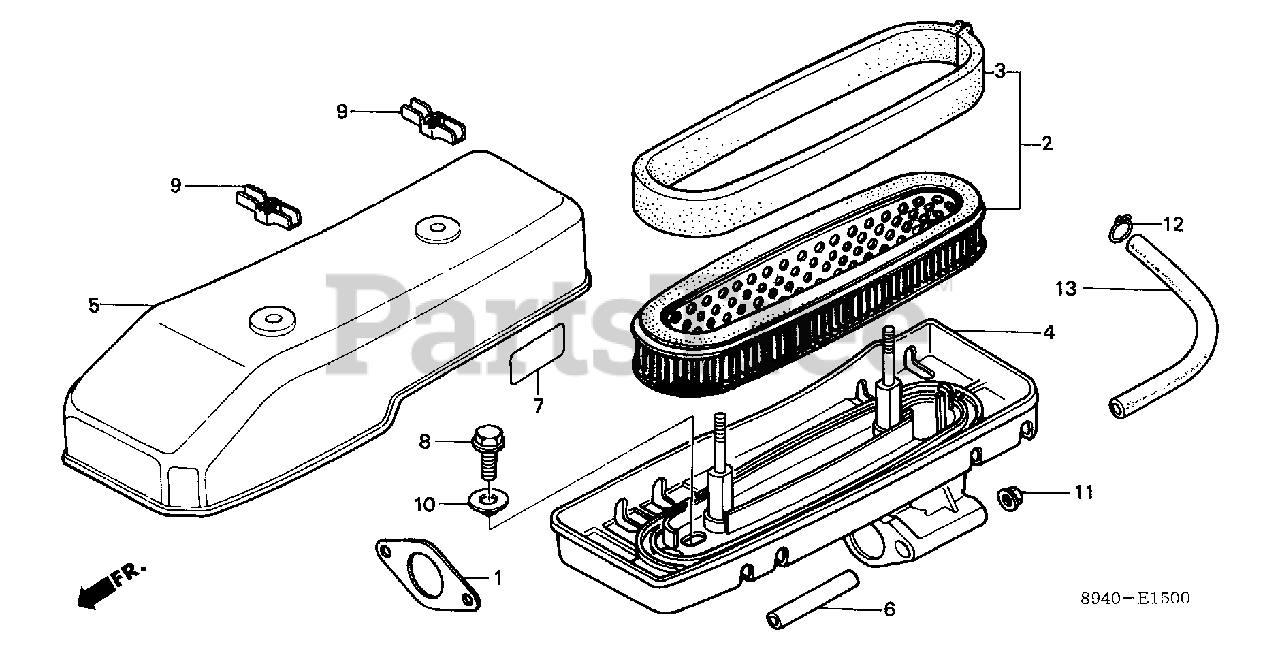

AIR CLEANER Parts Diagram

  • Title

1

Honda 16269-883-800

GASKET, AIR CLEANER

$1.99

$

In Stock, Qty 9

0

2

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE6-305)

$20.99

$

In Stock, Qty 9

0

3

Honda 17218-888-003

SEE PART DETAILS - SUP; FILTER (OUTER)
(Superseded to 17218-ZE6-505)

Note: Use from Engine SN 1025945.

$

$

Not available

4

Honda 17220-894-000

HOUSING, AIR CLEANER

$36.99

$

Usually ships in 3-6 days

0

5

Honda 17231-888-010ZA

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH1* (BLACK)

$

$

Currently unavailable

6

Honda 17238-888-000

COLLAR, AIR CLEANER HOUSING

$

$

Not available

7

Honda 87524-888-671

MARK, AIR CLEANER CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

9

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

$11.99

$

In Stock, only 2 left!

0

10

Honda 90522-034-000

WASHER, HEADLIGHT CASE

$

$

Not available

11

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

12

Honda 95002-02130

CLIP, TUBE (B12.5)

Note: Use from Engine SN 1003269.

$1.99

$

In Stock, Qty 18

0

13

Honda 95005-75001-20M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (7.3X1000) (7.5X160)

$37.99

$

Usually ships in 3-6 days

0
