GV200 N50 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) GOVERNOR ARM + CONTROL UNIT Parts Diagram

Engine, Made in Japan

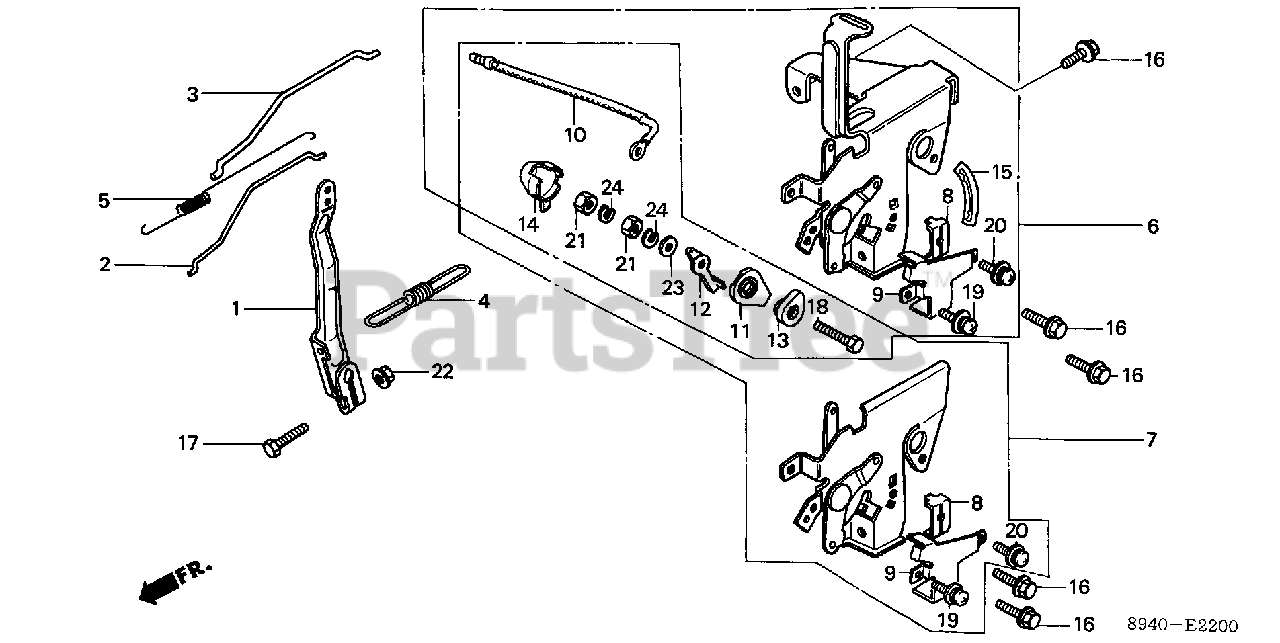

GOVERNOR ARM + CONTROL UNIT Parts Diagram

  • Title

1

Honda 16551-894-000

ARM, GOVERNOR

$16.99

$

Usually ships in 3-6 days

0

2

Honda 16555-894-010

ROD, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

3

Honda 16556-894-000

ROD, CHOKE

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16561-894-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Not available

5

Honda 16562-894-000

SPRING, THROTTLE RETURN (NOT AVAILABLE)

$

$

Not available

6

Honda 16570-894-000

CONTROL ASSY.

$49.99

$

Usually ships in 3-6 days

0

8

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 2 left!

0

9

Honda 17100-894-000

PROTECTOR, CONTROL

Note: Use up to Engine SN 1024484.

$

$

Not available

9

Honda 17100-960-651

PROTECTOR, CONTROL

Note: Use from Engine SN 1024485.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 30562-894-000

WIRE, STOP SWITCH

$

$

Currently unavailable

11

Honda 36111-894-010

BASE, SWITCH

$

$

Not available

12

Honda 36112-894-000

CONTACT, SWITCH

$

$

Not available

13

Honda 36113-894-010

WASHER, INSULATOR

$

$

Not available

14

Honda 36115-894-000

CAP, STOP SWITCH

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

17

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1209695.

$2.99

$

In Stock, only 2 left!

0

17

Honda 92101-06020-0A

BOLT, HEX. (6X20)

Note: Use up to Engine SN 1209694.

$1.49

$

Usually ships in 3-6 days

0

18

Honda 92000-04020-0A

BOLT, HEX. (4X20)

$

$

Not available

19

Honda 93893-05012-00

SCREW-WASHER (5X12)

$1.99

$

In Stock, only 4 left!

0

20

Honda 93893-05020-00

SCREW-WASHER (5X20)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

22

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

23

Honda 94101-04000

WASHER, PLAIN (4MM)

$1.49

$

In Stock, only 1 left!

0

24

Honda 94111-04000

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0
