GV200 N50 (GV200) - Honda Engine, Made in Japan (SN: GV200-1000001 - GV200-1215266) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in Japan

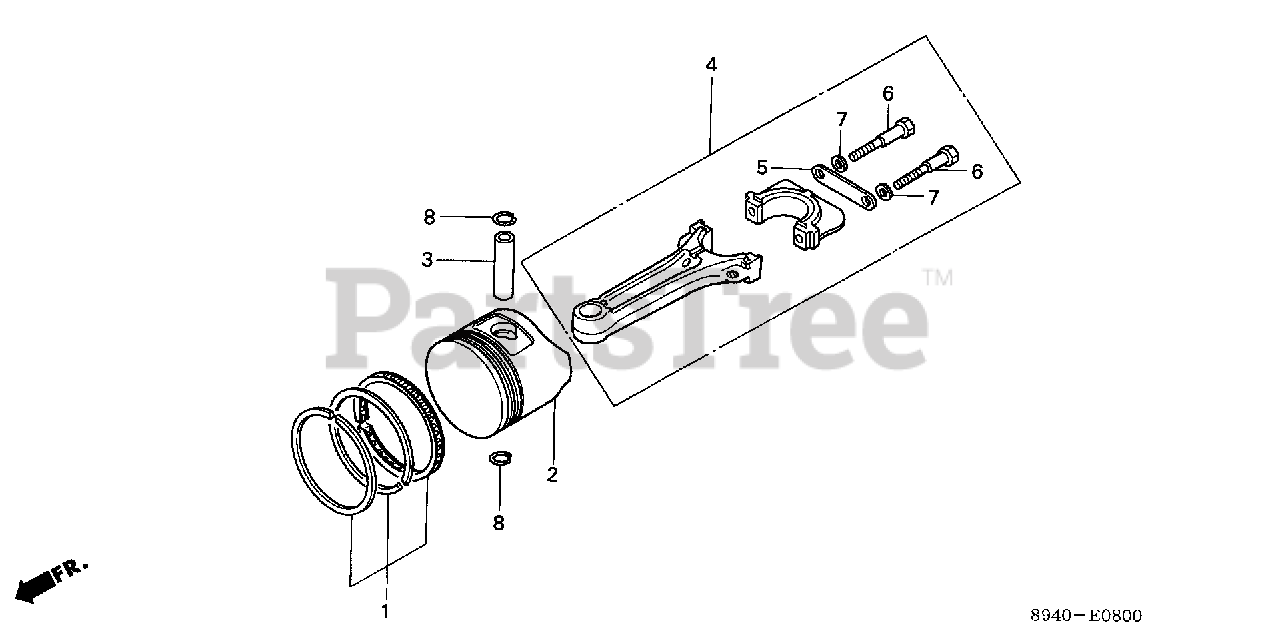

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13011-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13011-YA0-004)

$

$

Not available

1

Honda 13012-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13012-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$

$

Currently unavailable

1

Honda 13012-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)
(Superseded to 13012-YA0-004)

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA0-004

RING SET, PISTON (0.75)

$43.99

$

Usually ships in 3-6 days

0

2

Honda 13101-883-003

SEE PART DETAILS - PRI; PISTON (STD)

$65.99

$

Usually ships in 3-6 days

0

2

Honda 13102-883-003

PISTON (OS 0.25)

$

$

Not available

2

Honda 13103-883-003

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-883-003

PISTON (0.75)

$49.99

$

Usually ships in 3-6 days

0

3

Honda 13111-883-000

PIN, PISTON

$10.99

$

In Stock, only 1 left!

0

4

Honda 13200-894-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

$79.99

$

Usually ships in 3-6 days

0

4

Honda 13200-894-315

ROD ASSY., CONNECTING

$

$

Currently unavailable

5

Honda 13281-879-000

WASHER A, CONNECTING ROD

Note: Use up to Engine SN 1000012.

$

$

Not available

5

Honda 13281-888-000

WASHER, CONNECTING ROD

Note: Use from Engine SN 1000013.

$2.49

$

Usually ships in 3-6 days

0

6

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (NOT AVAILABLE)

Note: Use up to Engine SN 1000012.

$

$

Currently unavailable

6

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

Note: Use from Engine SN 1000013.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90432-883-000

WASHER, LOCK (6MM) (N/A: SEE ASSEMBLY)

Note: Use up to Engine SN 1000012.

$

$

Currently unavailable

7

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use from Engine SN 1000013.

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
