GV35 A1 (GV35) - Honda Engine, Made in Japan (SN: GV35-1000001 - GV35-1026807) GOVERNOR Parts Diagram

Engine, Made in Japan

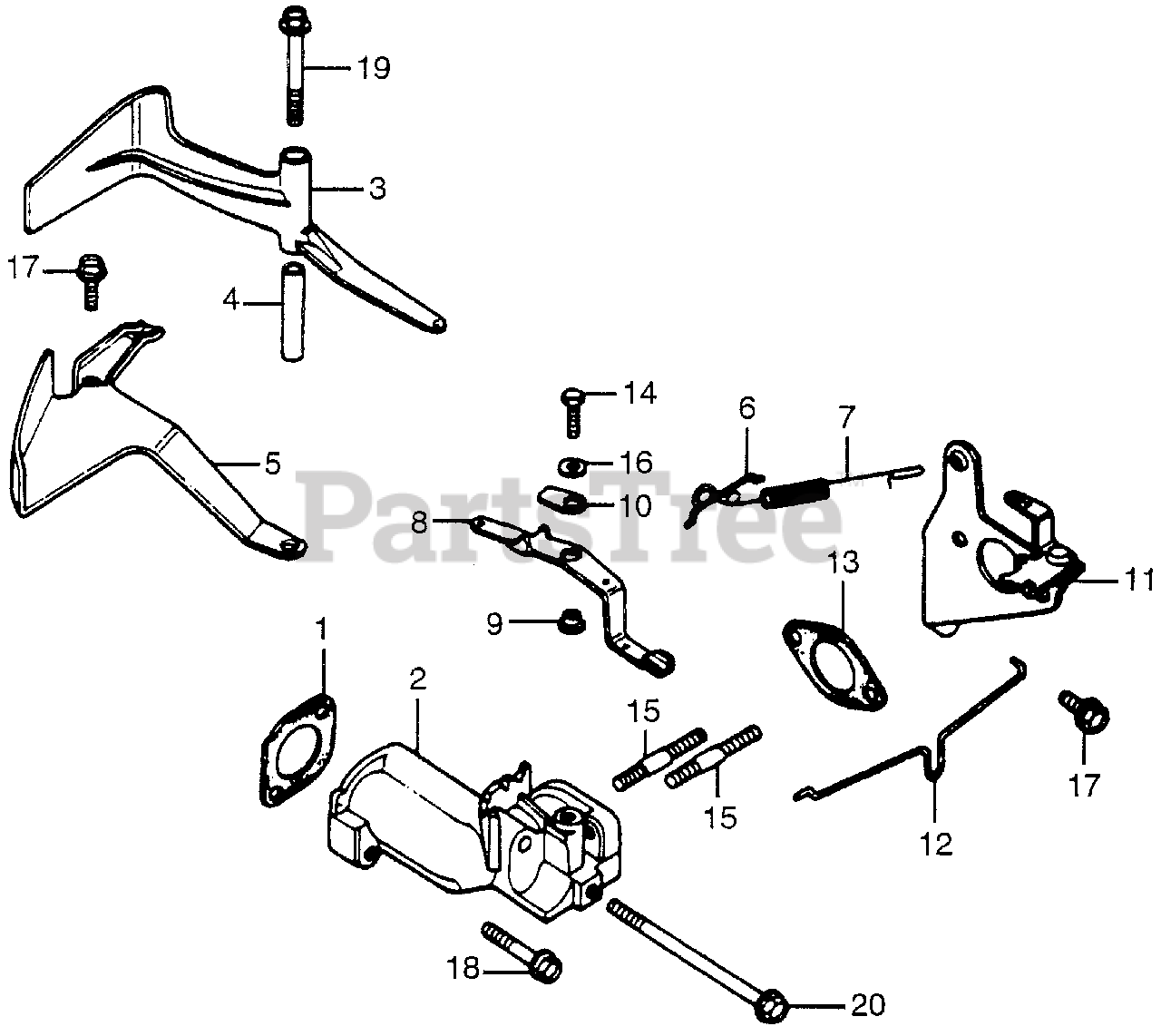

GOVERNOR Parts Diagram

  • Title

1

Honda 16221-879-000

GASKET, ELBOW (Honda Code 0452276).

$

$

Currently unavailable

2

Honda 16224-879-000

ELBOW, CARBURETOR (NOT AVAILABLE) (Honda Code 0452284).

$

$

Currently unavailable

3

Honda 16512-879-000

FLUTTER, GOVERNOR (Honda Code 0452292).

$

$

Not available

4

Honda 16513-879-000

COLLAR, FLUTTER (Honda Code 0452300).

$

$

Not available

5

Honda 16521-879-010

GUIDE, WIND (Honda Code 0452318).

$

$

Not available

6

Honda 16555-879-000

ROD, GOVERNOR (NOT AVAILABLE) (Honda Code 0452326).

$

$

Currently unavailable

7

Honda 16561-879-010

SPRING, GOVERNOR (Honda Code 0452334).

$

$

Currently unavailable

8

Honda 16571-879-010

LEVER, CONTROL (Honda Code 0452342).

$

$

Not available

9

Honda 16572-879-010

COLLAR, LEVER SETTING (Honda Code 0452359).

$

$

Currently unavailable

10

Honda 16573-879-010

SPRING, LEVER SETTING (NOT AVAILABLE) (Honda Code 0452367).

$

$

Currently unavailable

11

Honda 16630-879-000

LEVER, CHOKE (NOT AVAILABLE) (Honda Code 0452375).

$

$

Currently unavailable

12

Honda 16634-879-000

ROD, CHOKE (NOT AVAILABLE) (Honda Code 0452383).

$

$

Currently unavailable

13

Honda 17481-878-000

SEE PART DETAILS - SUP; GASKET, AIR CLEANER ELBOW (Honda Code 0441683).

$

$

Currently unavailable

14

Honda 92101-05014-0H

SEE PART DETAILS - PRI; BOLT, HEX. (5X14) (Honda Code 7522253).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 92700-06037-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X37) (Honda Code 0454306).

$

$

Currently unavailable

15

Honda 92900-06025-0B

SEE PART DETAILS - PRI; BOLT 2, STUD (6X25) (Honda Code 1737725).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

17

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 2 left!

0

18

Honda 95700-06025-08

BOLT, FLANGE (6X25) (Honda Code 0258731).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06025-08

BOLT, FLANGE (6X25) (Honda Code 2259711).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2552537).

$2.99

$

In Stock, only 3 left!

0

20

Honda 95700-06070-08

BOLT, FLANGE (6X70) (Honda Code 0583625).

$

$

Currently unavailable

20

Honda 95701-06070-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X70) (Honda Code 3678323).

$2.99

$

Usually ships in 3-6 days

0
