GV400 ADAA (GV400) - Honda Engine, Made in Japan (SN: GV400-1000001 - GV400-1006101) CARBURETOR + INLET MANIFOLD Parts Diagram

Engine, Made in Japan

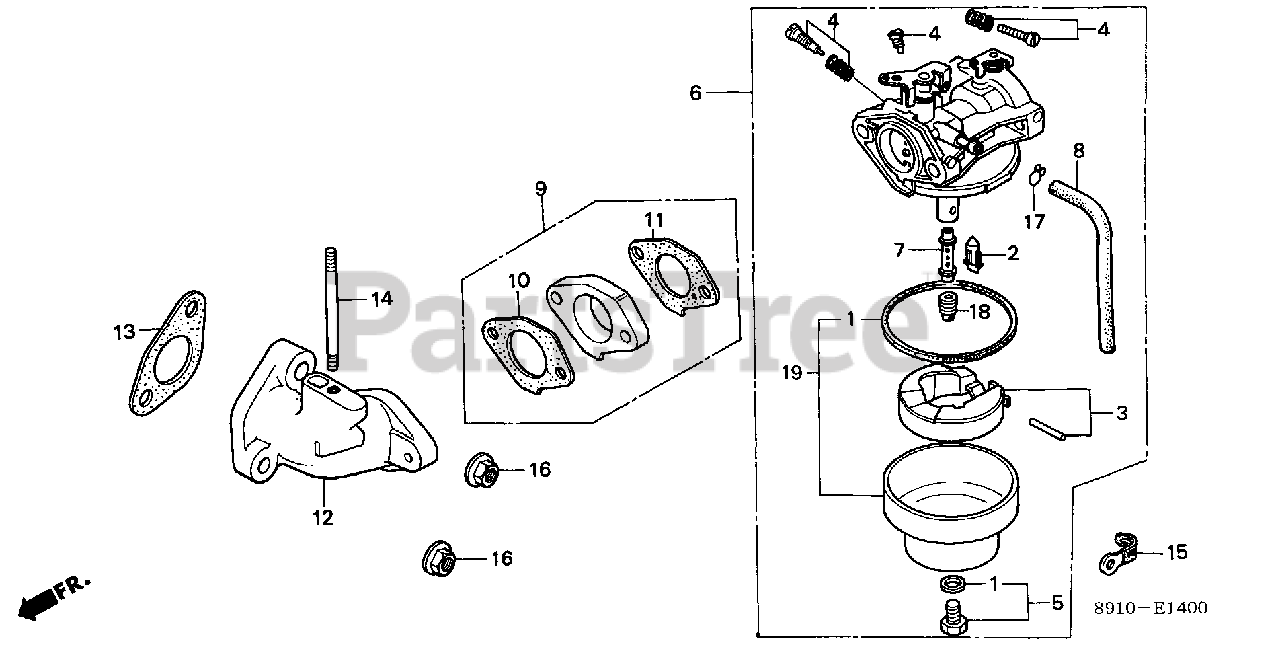

CARBURETOR + INLET MANIFOLD Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET (CARBURETOR NO.)

$12.99

$

In Stock, Qty 20+

0

2

Honda 16011-KCK-910

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$40.99

$

In Stock, Qty 5

0

2

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$40.99

$

In Stock, Qty 5

0

3

Honda 16013-890-015

FLOAT SET (CARBURETOR NO.)

$

$

Not available

4

Honda 16016-728-631

SCREW SET A (CARBURETOR NO.)

Note: Use from Engine SN BB38A B.

$

$

Currently unavailable

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB38A A.

$

$

Currently unavailable

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$12.99

$

In Stock, only 3 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$12.99

$

In Stock, only 3 left!

0

6

Honda 16100-891-073

CARBURETOR ASSY. (BB38A H)

$

$

Currently unavailable

7

Honda 16166-890-005

NOZZLE, MAIN

$

$

Not available

9

Honda 16210-891-000

INSULATOR, CARBURETOR

$

$

Currently unavailable

10

Honda 16212-891-300

GASKET, INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16221-891-306

GASKET, CARBURETOR

$

$

Currently unavailable

12

Honda 16224-891-315

MANIFOLD, IN.

$

$

Currently unavailable

13

Honda 16226-891-306

GASKET, IN. MANIFOLD

$

$

Currently unavailable

14

Honda 90048-891-000

BOLT, STUD (6X87)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

18

Honda 99101-124-0920

JET, MAIN (#92)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0950

JET, MAIN (#95)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0980

JET, MAIN (#98)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1000

JET, MAIN (#100)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1020

JET, MAIN (#102)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1050

JET, MAIN (#105)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 16015-896-702

CHAMBER SET, FLOAT

$

$

Not available
