GV400 ADAB (GV400) - Honda Engine, Made in Japan (SN: GV400-1000001 - GV400-1006101) CARBURETOR + INLET MANIFOLD Parts Diagram

Engine, Made in Japan

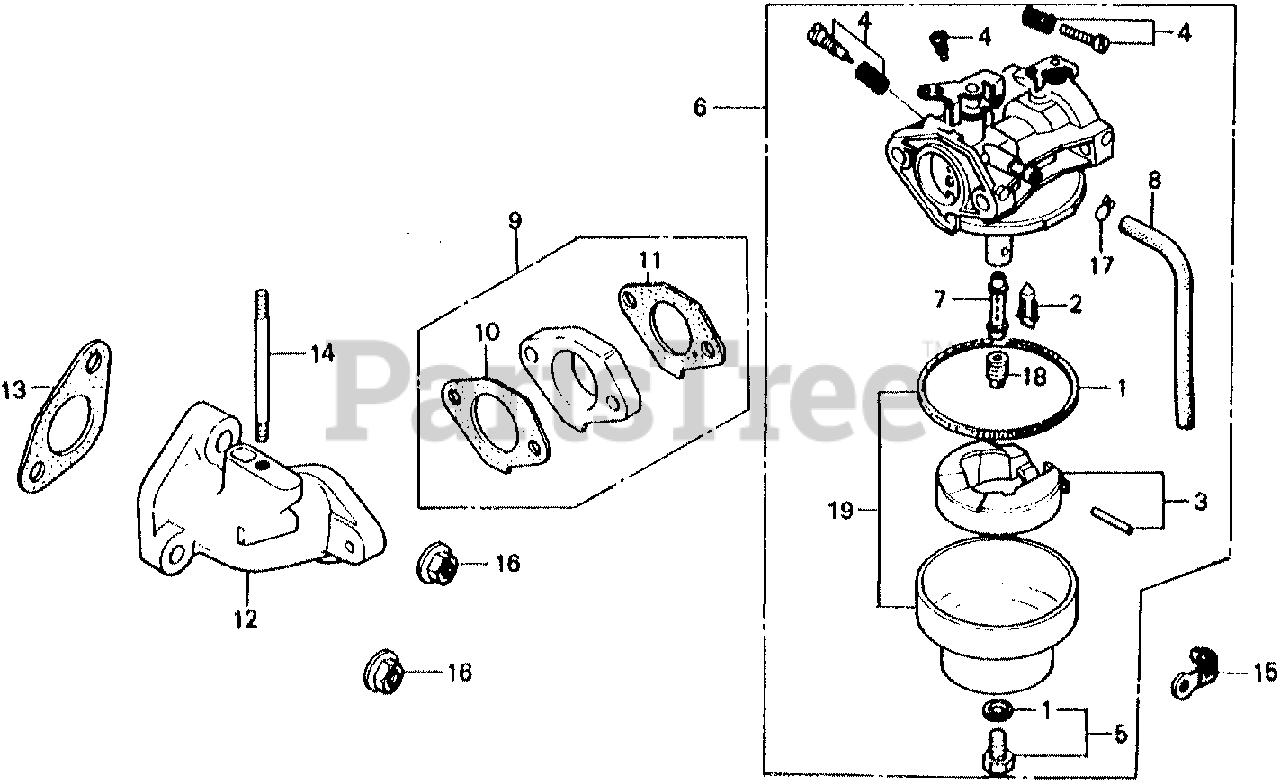

CARBURETOR + INLET MANIFOLD Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 20+

0

2

Honda 16011-382-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT (Honda Code 0714436).
(Superseded to 16011-KCK-910)

$40.99

$

In Stock, Qty 5

0

3

Honda 16013-890-015

SEE PART DETAILS - PRI; FLOAT SET (Honda Code 1303072).

$

$

Not available

4

Honda 16016-728-631

SCREW SET A (Honda Code 0941229).

Note: Use from Engine SN BB38A B.

$

$

Currently unavailable

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A (Honda Code 1007442).

Note: Use up to Engine SN BB38A A.

$

$

Currently unavailable

5

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$12.99

$

In Stock, only 3 left!

0

5

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B (Honda Code 0636274).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 16100-891-073

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB38A H) (Honda Code 3265287).

$

$

Currently unavailable

7

Honda 16166-890-005

NOZZLE, MAIN (Honda Code 0755124).

$

$

Not available

9

Honda 16210-891-000

INSULATOR, CARBURETOR (Honda Code 0800326).

$

$

Currently unavailable

10

Honda 16212-891-306

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4832440).

$

$

Not available

11

Honda 16221-891-306

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 5318183).

$

$

Currently unavailable

12

Honda 16224-891-315

MANIFOLD, IN. (Honda Code 0800367).

$

$

Currently unavailable

13

Honda 16226-891-306

SEE PART DETAILS - PRI; GASKET, IN. MANIFOLD (Honda Code 7337009).

$

$

Currently unavailable

14

Honda 90048-891-000

BOLT, STUD (6X87) (Honda Code 0801035).

$5.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

18

Honda 99101-124-0920

JET, MAIN (#92) (Honda Code 0761387).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0950

JET, MAIN (#95) (Honda Code 0761395).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0980

JET, MAIN (#98) (Honda Code 0761403).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1000

JET, MAIN (#100) (Honda Code 0810218).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1020

JET, MAIN (#102) (Honda Code 0942060).

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-1050

JET, MAIN (#105) (Honda Code 0810226).

$10.99

$

Usually ships in 3-6 days

0

19

Honda 16015-891-003

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT (Honda Code 3476744).

$

$

Currently unavailable
