GV400 K1 ADJD (GV400) - Honda Engine, Made in Japan (SN: GV400-2000001 - GV400-2094026) OIL PAN + OIL PUMP (GV400K1) Parts Diagram

Engine, Made in Japan

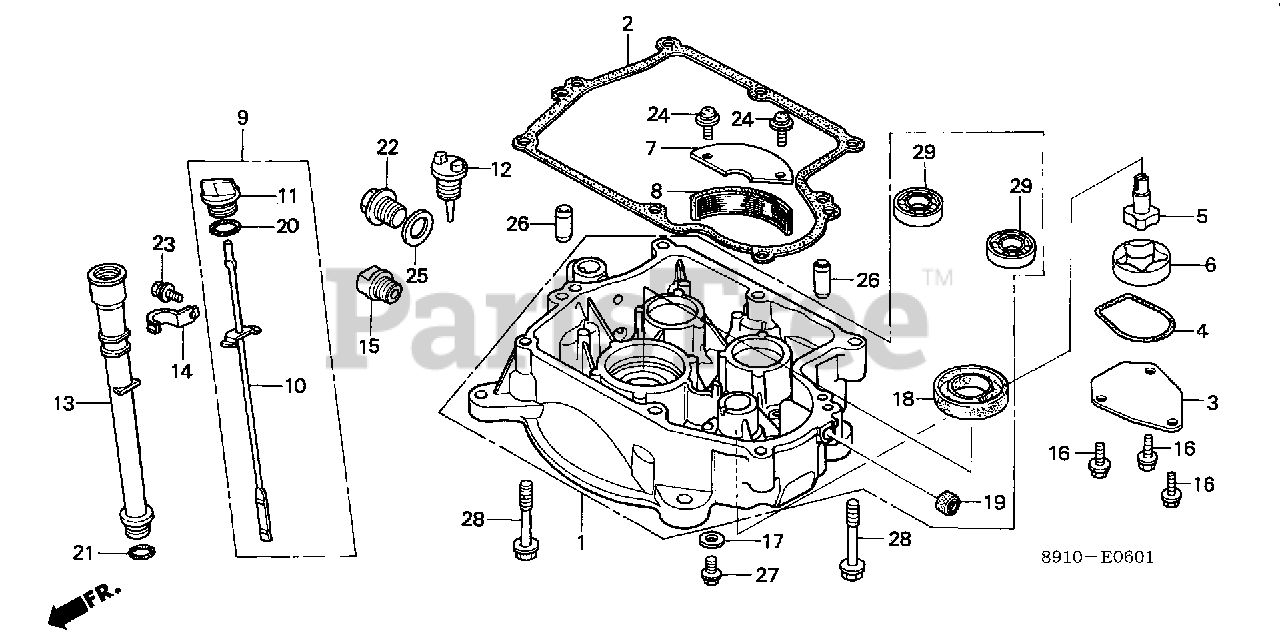

OIL PAN + OIL PUMP (GV400K1) Parts Diagram

  • Title

1

Honda 11300-891-335

PAN ASSY., OIL

$

$

Not available

2

Honda 11381-891-306

GASKET, OIL PAN

$

$

Not available

3

Honda 15130-891-010

COVER, OIL PUMP

$

$

Not available

4

Honda 15131-891-013

O-RING (42X2.9)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 15330-891-000

ROTOR (INNER)

$20.99

$

Usually ships in 3-6 days

0

6

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$17.99

$

Usually ships in 3-6 days

0

7

Honda 15334-891-000

PLATE, OIL FILTER

$

$

Not available

8

Honda 15421-891-000

SCREEN, OIL FILTER

$

$

Currently unavailable

9

Honda 15600-891-680

GAUGE ASSY., OIL LEVEL

$

$

Not available

10

Honda 15610-891-680

GAUGE, OIL LEVEL

$

$

Not available

11

Honda 15611-921-000

CAP, OIL (YELLOW)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 15630-891-680

EXTENSION, OIL FILLER

$52.99

$

Usually ships in 3-6 days

0

14

Honda 15632-891-680

CLAMP, EXTENSION

$6.49

$

Usually ships in 3-6 days

0

15

Honda 15641-891-000

ADAPTER, OIL DRAIN EXTENSION

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

17

Honda 90488-700-000

WASHER A (8MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 91201-890-003

OIL SEAL (30X46X8)

$10.99

$

In Stock, Qty 7

0

19

Honda 91231-891-003

OIL SEAL (6X11X4) (ARAI)

$2.99

$

In Stock, Qty 5

0

20

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91303-891-680

O-RING (16.8X2.4)

$

$

Not available

22

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$6.99

$

In Stock, only 1 left!

0

23

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$1.99

$

In Stock, Qty 5

0

23

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$1.99

$

In Stock, Qty 5

0

24

Honda 93892-05012-00

SCREW-WASHER (5X12)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, Qty 10

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

27

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 4 left!

0

28

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 3 left!

0

28

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, only 3 left!

0

29

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$10.99

$

Usually ships in 3-6 days

0
