GX100 KRG/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) CARBURETOR (KRG) Parts Diagram

Engine, Made in Japan

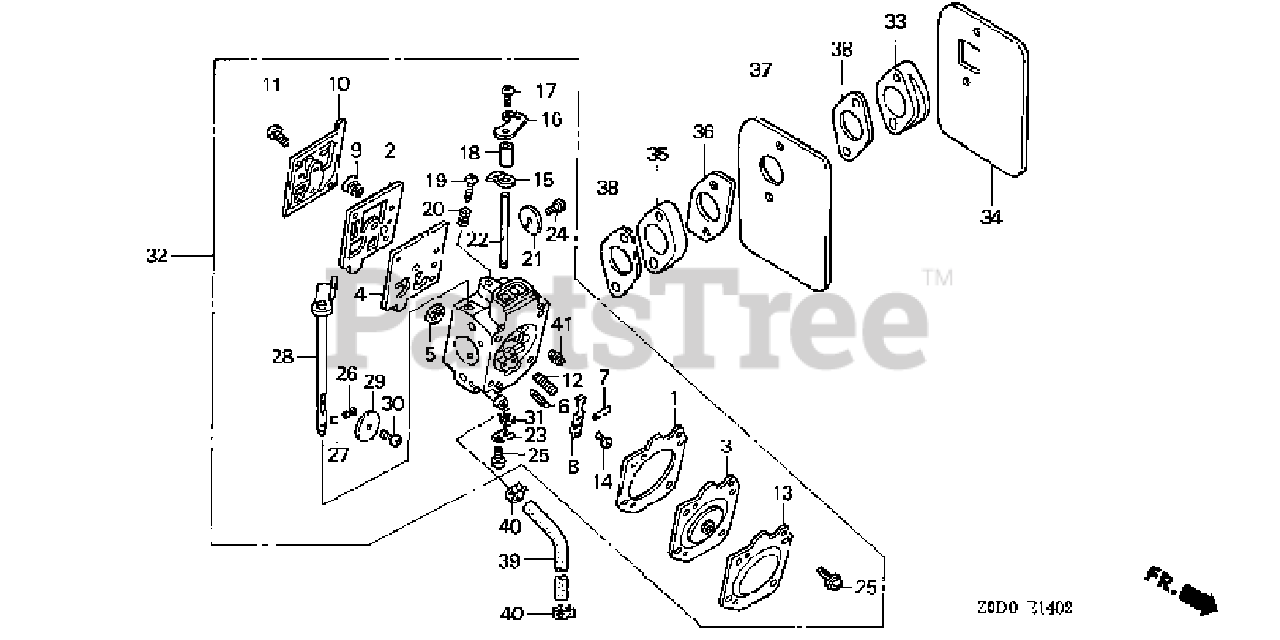

CARBURETOR (KRG) Parts Diagram

  • Title

1

Honda 16010-Z0D-V02

GASKET, METERING DIAPHRAGM

Note: (Honda Code 6843312).

$2.99

$

Usually ships in 3-6 days

0

2

Honda 16011-Z0D-V02

GASKET, PUMP

Note: (Honda Code 6843338).

$3.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0D-V02

DIAPHRAGM ASSY., METERING

Note: (Honda Code 6843346).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 16014-Z0D-V02

DIAPHRAGM, PUMP

Note: (Honda Code 6843353).

$7.99

$

In Stock, only 2 left!

0

5

Honda 16018-ZM3-004

SCREEN, INLET

Note: (Honda Code 5581194).

$2.49

$

In Stock, only 4 left!

0

6

Honda 16019-ZM3-004

VALVE, IN. NEEDLE

Note: (Honda Code 5581202).

$4.99

$

In Stock, only 1 left!

0

7

Honda 16022-ZM3-004

PIN, METERING LEVER

Note: (Honda Code 5581236).

$

$

Currently unavailable

8

Honda 16023-Z0D-V02

LEVER, METERING

Note: (Honda Code 6843379).

$3.49

$

Usually ships in 3-6 days

0

9

Honda 16030-ZM3-004

SPRING, PUMP

Note: (Honda Code 5581319).

$1.99

$

In Stock, Qty 5

0

10

Honda 16040-Z0D-V02

COVER, PUMP

Note: (Honda Code 6843395).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16041-Z0D-V02

SCREW

Note: (Honda Code 6843403).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 16042-Z0D-V02

SPRING

Note: (Honda Code 6843411).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 16043-Z0D-V02

SEE PART DETAILS - PRI; COVER, METERING DIAPHRAGM

Note: (Honda Code 6843429).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 16044-Z0D-V02

SCREW

Note: (Honda Code 6843437).

$0.99

$

Usually ships in 3-6 days

0

15

Honda 16045-Z0D-V02

STOPPER, THROTTLE LEVER

Note: (Honda Code 6843452).

$3.99

$

Usually ships in 3-6 days

0

16

Honda 16046-Z0D-V72

LEVER, THROTTLE
(Superseded to 16046-Z0D-V73)

Note: (Honda Code 7040637).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 16047-Z0D-V02

SCREW

Note: (Honda Code 6843486).

$0.99

$

Usually ships in 3-6 days

0

18

Honda 16048-Z0D-V02

SPACER, THROTTLE LEVER

Note: (Honda Code 6843494).

$6.99

$

Usually ships in 3-6 days

0

19

Honda 16049-Z0D-V02

SCREW, IDLE ADJUSTING

Note: (Honda Code 6843502).

$5.99

$

Usually ships in 3-6 days

0

20

Honda 16050-Z0D-V02

SPRING

Note: (Honda Code 6843510).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 16051-Z0D-V02

VALVE, THROTTLE

Note: (Honda Code 6843528).

$5.49

$

Usually ships in 3-6 days

0

22

Honda 16052-Z0D-V02

SHAFT, THROTTLE

Note: (Honda Code 6843536).

$29.99

$

Usually ships in 3-6 days

0

23

Honda 16053-Z0D-V02

CLIP, THROTTLE SHAFT

Note: (Honda Code 6843544).

$3.99

$

Usually ships in 3-6 days

0

24

Honda 16054-Z0D-V02

SCREW, VALVE

Note: (Honda Code 6843551).

$0.99

$

Usually ships in 3-6 days

0

25

Honda 16055-Z0D-V02

SCREW ASSY.

Note: (Honda Code 6843569).

$0.99

$

Usually ships in 3-6 days

0

26

Honda 16056-Z0D-V02

SPRING

Note: (Honda Code 6843577).

$1.99

$

Usually ships in 3-6 days

0

27

Honda 16057-Z0D-V02

BALL

Note: (Honda Code 6843585).

$0.99

$

Usually ships in 3-6 days

0

28

Honda 16058-Z0D-V72

SHAFT ASSY., CHOKE

Note: (Honda Code 7059389).

$29.99

$

Usually ships in 3-6 days

0

29

Honda 16059-Z0D-V02

VALVE, CHOKE

Note: (Honda Code 6843601).

$

$

Currently unavailable

30

Honda 16060-Z0D-V02

SCREW

Note: (Honda Code 6843619).

$0.99

$

Usually ships in 3-6 days

0

31

Honda 16061-Z0D-V02

DUST SEAL

Note: (Honda Code 6843627).

$1.99

$

Usually ships in 3-6 days

0

32

Honda 16100-Z0D-V72

CARBURETOR ASSY. (HDA 206A)

Note: (Honda Code 7040645).

$

$

Currently unavailable

33

Honda 16211-Z0D-V00

INSULATOR, CARBURETOR

Note: (Honda Code 6843718).

$

$

Not available

34

Honda 16212-Z0D-V00

GASKET, INSULATOR

Note: (Honda Code 6843726).

$1.99

$

In Stock, Qty 5

0

35

Honda 16213-Z0D-V00

INSULATOR B, CARBURETOR

Note: (Honda Code 6843759).

$11.99

$

In Stock, only 2 left!

0

36

Honda 16214-Z0D-V00

GASKET B, INSULATOR
(Superseded to 16214-Z0D-V01)

Note: (Honda Code 6843767).

$1.49

$

In Stock, Qty 5

0

37

Honda 16215-Z0D-V00

PLATE, INSULATOR

Note: (Honda Code 6843775).

$4.99

$

Usually ships in 3-6 days

0

38

Honda 16221-Z0D-V00

GASKET, CARBURETOR

Note: (Honda Code 6843791).

$1.99

$

In Stock, Qty 20+

0

41

Honda 99101-Z0D-0500

JET (#50)

Note: (Optional). (Honda Code 6852917).

$9.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0520

JET (#52)

Note: (Optional). (Honda Code 6852925).

$9.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0540

JET (#54)

Note: (Honda Code 6852933).

$9.99

$

Usually ships in 3-6 days

0
