GX100 QA2/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

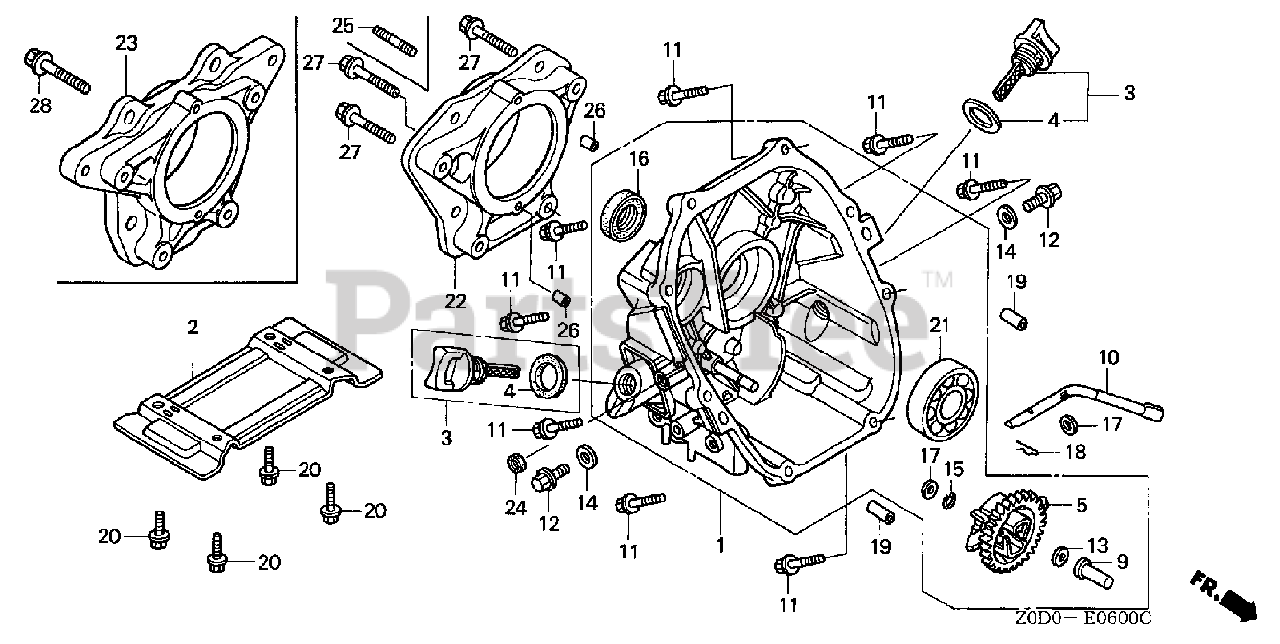

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z0D-406

COVER ASSY., CRANKCASE

Note: (Honda Code 6763833).

$314.99

$

Usually ships in 3-6 days

0

2

Honda 12351-Z0D-000

BED, ENGINE

Note: (Honda Code 6763866).

$25.99

$

Usually ships in 3-6 days

0

3

Honda 15600-ZM7-003

CAP ASSY., OIL FILLER
(Superseded to 15600-ZDF-000)

Note: (Honda Code 6005573).

$1.99

$

In Stock, Qty 5

0

4

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.99

$

In Stock, Qty 20+

0

5

Honda 16510-ZL8-000

GOVERNOR ASSY.

Note: (Honda Code 5611108).

$13.99

$

In Stock, only 1 left!

0

9

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$4.49

$

In Stock, only 1 left!

0

10

Honda 16541-Z0D-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 6763981).

$9.99

$

In Stock, only 2 left!

0

11

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$3.49

$

In Stock, Qty 7

0

12

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

Note: (Honda Code 1431246).

$3.49

$

In Stock, only 3 left!

0

13

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$2.49

$

In Stock, only 1 left!

0

14

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

Note: (Honda Code 1436583).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

16

Honda 91202-KJ9-003

OIL SEAL (20X32X6)

Note: (Honda Code 3741006).

$7.49

$

In Stock, only 4 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 11

0

19

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

Note: (Honda Code 1417369).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, Qty 15

0

21

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

Note: (Honda Code 0674390).

$18.99

$

In Stock, only 3 left!

0
