GX100 QA2/A (GCANM) - Honda Engine, Made in Japan (SN: GCANM-1100001 - GCANM-1299999) MUFFLER (QA2, VA2) Parts Diagram

Engine, Made in Japan

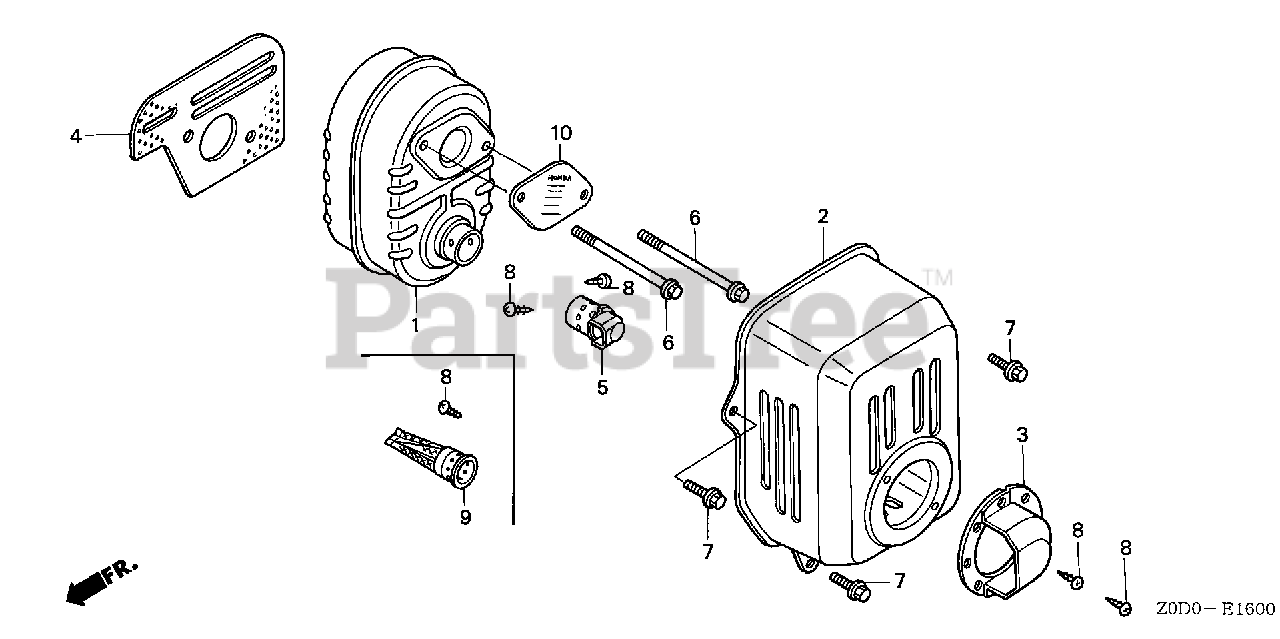

MUFFLER (QA2, VA2) Parts Diagram

  • Title

1

Honda 18310-ZM0-000

MUFFLER
(Superseded to 18310-ZM0-010)

Note: (Honda Code 5580485).

$30.99

$

In Stock, only 2 left!

0

2

Honda 18321-ZL8-000

PROTECTOR, MUFFLER
(Superseded to 18321-ZL8-010)

Note: (Honda Code 5580501).

$12.99

$

In Stock, only 2 left!

0

3

Honda 18348-ZL8-000

CAP, MUFFLER

Note: (Optional). (Honda Code 5738315).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 18381-Z0D-000

GASKET, MUFFLER

Note: (Honda Code 6764104).

$11.99

$

In Stock, only 1 left!

0

5

Honda 18430-ZL8-000

DEFLECTOR, MUFFLER

Note: (Optional). (Honda Code 5738307).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200)

Note: (Honda Code 5580972).

$2.49

$

In Stock, Qty 20+

0

7

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$3.49

$

In Stock, Qty 20+

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional). (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

9

Honda 18350-ZL8-000

ARRESTER, SPARK

Note: (Optional). (Honda Code 5656012).

$44.99

$

In Stock, only 1 left!

0

10

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER

Note: (Optional). (Honda Code 5611397).

$5.49

$

In Stock, only 2 left!

0
