GX100 U KRGA (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

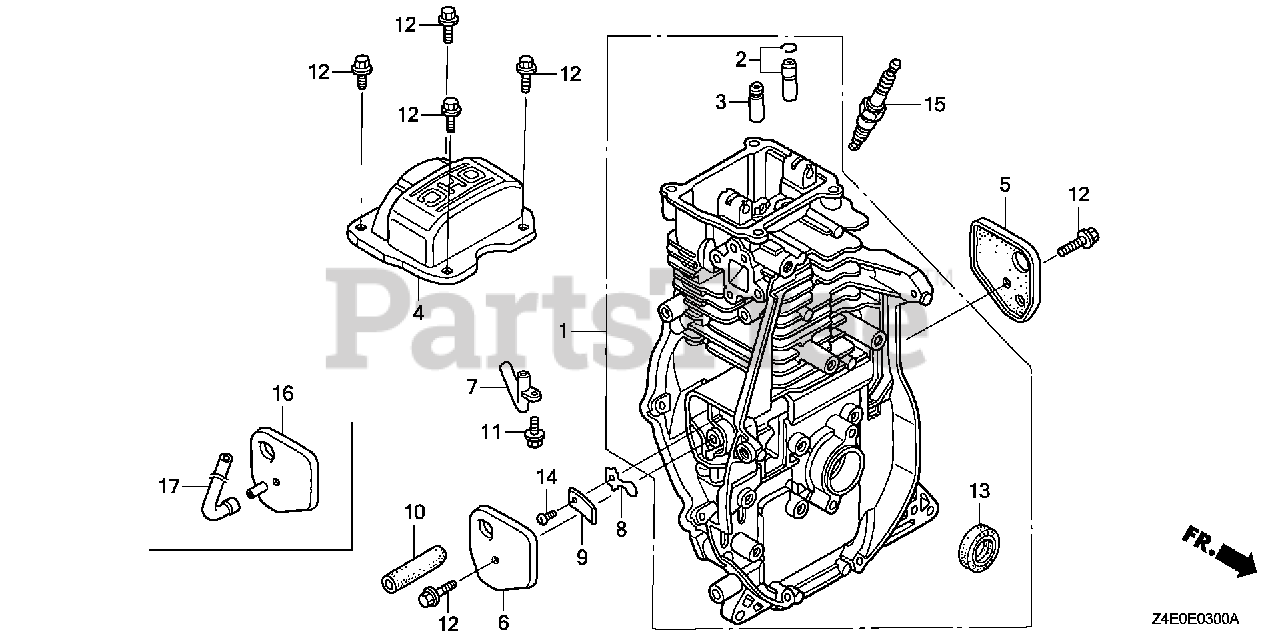

CYLINDER BARREL Parts Diagram

  • Title
1

Honda Part# 12000-Z0D-405

SEE PART DETAILS - PRI; CYLINDER ASSY.
Usually ships in 3 to 5 days

$

$267.90

0

2

Honda Part# 12201-Z0D-305

GUIDE ASSY., EX. VALVE (OVER SIZE)
Usually ships same day

Not available

$

$

3

Honda Part# 12204-Z0D-305

GUIDE, VALVE (OVER SIZE)
Usually ships in 1 day

$

$8.88

0

Usually ships in 3 to 5 days

$

$19.81

0

5

Honda Part# 12355-Z0D-000

COVER A, BREATHER
Usually ships in 1 day

$

$8.56

0

7

Honda Part# 15171-Z0D-V00

PIPE, BREATHER
Usually ships in 3 to 5 days

$

$6.93

0

8

Honda Part# 15571-ZM7-003

VALVE, OIL OUTLET
Usually ships in 1 day

$

$3.09

0

9

Honda Part# 15572-ZM7-000

PLATE, STOPPER
Usually ships in 1 day

$

$1.68

0

10

Honda Part# 15721-Z0D-000

TUBE, BREATHER
Usually ships in 3 to 5 days

$

$2.59

0

11
Usually ships in 1 day

$

$1.97

0

12

Honda Part# 90014-952-000

BOLT, FLANGE (6X14) (CT200)
Usually ships in 1 day

$

$2.44

0

13

Honda Part# 91202-KJ9-003

OIL SEAL (20X32X6)
Usually ships in 1 day

$

$5.39

0

14

Honda Part# 93500-03005-0A

SCREW, PAN (3X5)
Usually ships in 3 to 5 days

$

$0.85

0

15

Honda Part# 98056-55777

SEE PART DETAILS - PRI; SPARK PLUG (CR5HSB)
Usually ships in 1 day

$

$3.34

0

16

Honda Part# 12365-Z0D-U00

COVER B, BREATHER
Usually ships in 3 to 5 days

$

$9.03

0

17

Honda Part# 16882-Z0D-U00

TUBE, DIAPHRAGM
Usually ships in 3 to 5 days

$

$4.92
