GX100 U KRSU (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) AIR CLEANER Parts Diagram

Engine, Made in Japan

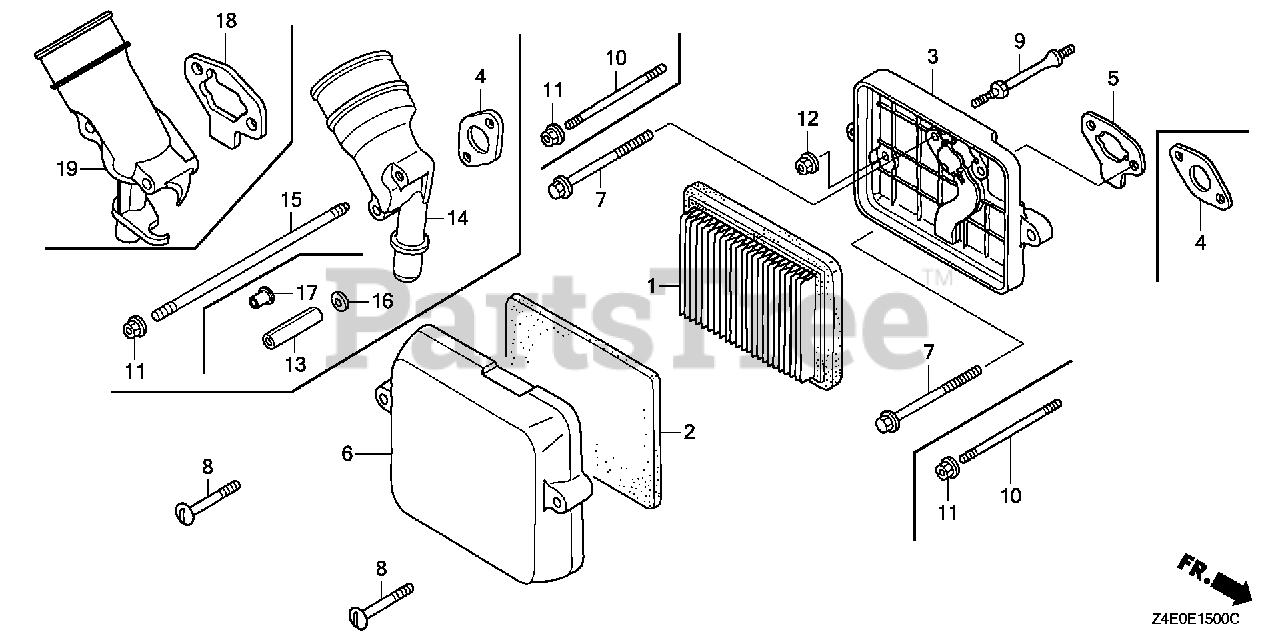

AIR CLEANER Parts Diagram

  • Title

1

Honda 17211-ZL8-023

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (TOYO ROKI)

$6.49

$

In Stock, Qty 20+

0

3

Honda 17220-Z0D-V00

SEE PART DETAILS - SUP; HOUSING, AIR CLEANER
(Superseded to 17220-Z0D-V02)

$14.99

$

In Stock, only 1 left!

0

3

Honda 17220-Z0D-V02

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$14.99

$

In Stock, only 1 left!

0

4

Honda 17228-Z0D-V01

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 20+

0

6

Honda 17231-Z0D-V61

SEE PART DETAILS - SUP; COVER, AIR CLEANER
(Superseded to 17231-Z0D-V62)

Note: Use up to Engine SN 1188360.

$33.99

$

Usually ships in 3-6 days

0

6

Honda 17231-Z0D-V62

SEE PART DETAILS - PRI; COVER, AIR CLEANER

Note: Use up to Engine SN 1188360.

$33.99

$

Usually ships in 3-6 days

0

6

Honda 17231-Z0D-V62

SEE PART DETAILS - PRI; COVER, AIR CLEANER

Note: Use from Engine SN 1188361 to 1260359.

$33.99

$

Usually ships in 3-6 days

0

6

Honda 17231-Z4E-S11

COVER, AIR CLEANER

Note: Use from Engine SN 1260360.

$23.99

$

Usually ships in 3-6 days

0

8

Honda 90011-Z0D-000

BOLT, AIR CLEANER COVER

$1.99

$

In Stock, only 2 left!

0

9

Honda 90041-Z0D-V00

BOLT, STUD

Note: Use up to Engine SN 1184913.

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90041-Z4E-800

BOLT, STUD

Note: Use from Engine SN 1184914.

$9.99

$

Usually ships in 3-6 days

0

10

Honda 90042-Z0D-V00

BOLT, STUD (5X85) (CT200)

Note: Use up to Engine SN 1184913.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90042-Z4E-800

BOLT, STUD (5X88) (CT200)

Note: Use from Engine SN 1184914.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
