GX100 U KRT2 (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) CARBURETOR (RAMMER FLOATLESS) Parts Diagram

Engine, Made in Japan

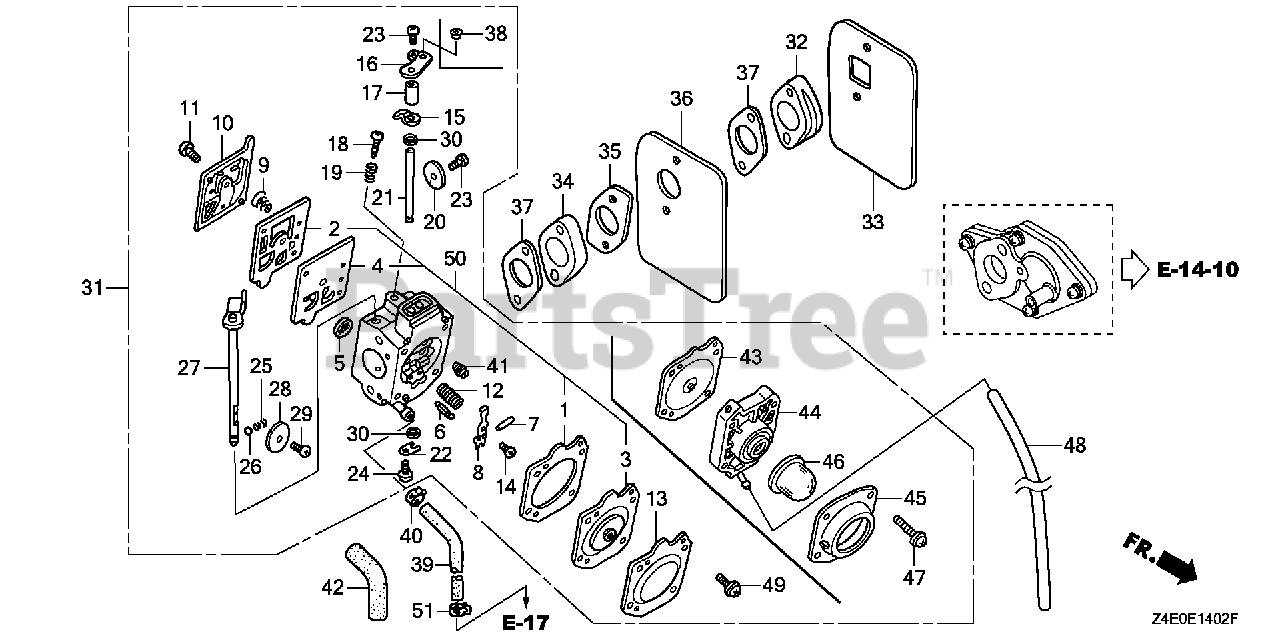

CARBURETOR (RAMMER FLOATLESS) Parts Diagram

  • Title

1

Honda 16010-Z0D-V02

GASKET, METERING DIAPHRAGM (CARBURETOR NO.)

$2.99

$

Usually ships in 3-6 days

0

2

Honda 16011-Z0D-V02

GASKET, PUMP

$3.99

$

In Stock, only 1 left!

0

4

Honda 16014-Z0D-V02

DIAPHRAGM, PUMP

$7.99

$

In Stock, only 2 left!

0

5

Honda 16018-ZM3-004

SCREEN, INLET

$2.49

$

In Stock, only 4 left!

0

6

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$4.99

$

In Stock, only 1 left!

0

7

Honda 16022-ZM3-014

PIN, METERING LEVER

$1.99

$

In Stock, only 3 left!

0

8

Honda 16023-Z0D-V02

LEVER, METERING

$3.49

$

Usually ships in 3-6 days

0

9

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, Qty 5

0

10

Honda 16040-Z4E-802

COVER, PUMP (CARBURETOR NO.)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 16041-Z0D-V02

SCREW

$1.99

$

Usually ships in 3-6 days

0

12

Honda 16042-Z0D-V02

SPRING (CARBURETOR NO.)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 16044-Z4E-802

SCREW (CARBURETOR NO.)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 16045-Z0D-V02

STOPPER, THROTTLE LEVER

$3.99

$

Usually ships in 3-6 days

0

16

Honda 16046-Z0D-V73

SEE PART DETAILS - PRI; LEVER, THROTTLE (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 16048-Z0D-V02

SPACER, THROTTLE LEVER

$6.99

$

Usually ships in 3-6 days

0

18

Honda 16049-Z4E-S12

SCREW, IDLE ADJUSTING (CARBURETOR NO.)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 16050-Z0D-V02

SPRING

$3.99

$

Usually ships in 3-6 days

0

20

Honda 16051-Z4E-S44

VALVE, THROTTLE (CARBURETOR NO.)

Note: Use from Engine SN HDA 278B.

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16051-Z4E-S44

VALVE, THROTTLE (CARBURETOR NO.)

Note: Use from Engine SN HDA 278B.

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16052-Z0D-V02

SHAFT, THROTTLE (CARBURETOR NO.)

$29.99

$

Usually ships in 3-6 days

0

22

Honda 16053-Z0D-V02

CLIP, THROTTLE SHAFT

$3.99

$

Usually ships in 3-6 days

0

23

Honda 16054-Z0D-V02

SCREW, VALVE

$0.99

$

Usually ships in 3-6 days

0

24

Honda 16055-Z0D-V02

SCREW ASSY.

$0.99

$

Usually ships in 3-6 days

0

25

Honda 16056-Z0D-V02

SPRING

$1.99

$

Usually ships in 3-6 days

0

26

Honda 16057-Z0D-V02

BALL

$0.99

$

Usually ships in 3-6 days

0

27

Honda 16058-Z0D-V02

SHAFT ASSY., CHOKE (CARBURETOR NO.)

$26.99

$

Usually ships in 3-6 days

0

28

Honda 16059-Z0D-V03

VALVE, CHOKE

$8.49

$

Usually ships in 3-6 days

0

29

Honda 16060-Z0D-V02

SCREW

$0.99

$

Usually ships in 3-6 days

0

30

Honda 16061-Z0D-V02

DUST SEAL

$1.99

$

Usually ships in 3-6 days

0

31

Honda 16100-Z4E-S46

SEE PART DETAILS - PRI; CARBURETOR ASSY. (HDA 278C)

$98.99

$

In Stock, only 1 left!

0

32

Honda 16211-Z0D-V01

INSULATOR, CARBURETOR

$7.49

$

Usually ships in 3-6 days

0

33

Honda 16212-Z0D-V00

GASKET, INSULATOR

$1.99

$

In Stock, Qty 5

0

34

Honda 16213-Z4E-S10

INSULATOR B, CARBURETOR

$10.99

$

Usually ships in 3-6 days

0

35

Honda 16214-Z0D-V01

SEE PART DETAILS - PRI; GASKET B, INSULATOR

$1.49

$

In Stock, Qty 5

0

36

Honda 16215-Z0D-V00

PLATE, INSULATOR

$4.99

$

Usually ships in 3-6 days

0

37

Honda 16221-Z0D-V00

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 20+

0

38

Honda 16552-896-650

COLLAR, LEVER (CARBURETOR NO.)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 91434-Z4E-902

HOSE, FUEL (4.2X330) (FKM)
(Superseded to 91434-Z4E-903)

Note: Use from Engine SN 1352972.

$31.99

$

Usually ships in 3-6 days

0

40

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, only 2 left!

0

41

Honda 99101-Z0D-0460

JET (#46) (CARBURETOR NO.)

Note: (Optional). Use from Engine SN HDA 278B.

$9.49

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0480

JET (#48) (CARBURETOR NO.)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0500

JET (#50) (CARBURETOR NO.)

Note: Use from Engine SN HDA 278B.

$9.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0520

JET (#52) (CARBURETOR NO.)

Note: Use up to Engine SN HDA 278A.

$9.99

$

Usually ships in 3-6 days

0

41

Honda 99101-Z0D-0540

JET (#54) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN HDA 278A.

$9.99

$

Usually ships in 3-6 days

0

42

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X260)

$

$

Currently unavailable

43

Honda 16013-Z4E-S44

DIAPHRAGM ASSY., METERING (CARBURETOR NO.)

Note: Use from Engine SN HDA 278B.

$12.99

$

In Stock, only 2 left!

0

44

Honda 16017-Z4E-S32

BODY ASSY., AIR PURGE (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

45

Honda 16026-Z4E-S32

COVER, PRIMER PUMP (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

46

Honda 16032-Z4E-S32

PUMP, PRIMER (CARBURETOR NO.)

$16.99

$

In Stock, only 3 left!

0

47

Honda 16055-Z4E-S32

SCREW ASSY. (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0

51

Honda 90602-MT7-003

CLAMP, TUBE (D9.4)

Note: Use from Engine SN 1352972.

$2.49

$

Usually ships in 3-6 days

0

51

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

Note: Use up to Engine SN 1352971.

$3.49

$

In Stock, only 2 left!

0
