GX100 U QA26 (GCAGK) - Honda Engine, Made in Japan (SN: GCAGK-1000001 - GCAGK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

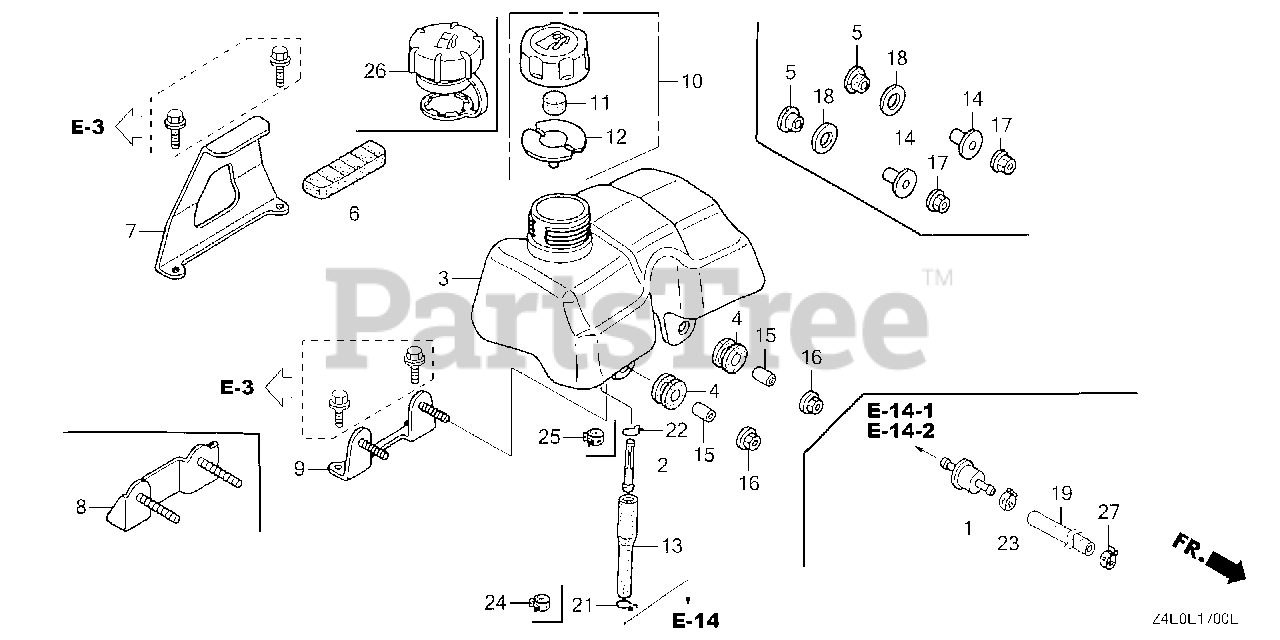

FUEL TANK Parts Diagram

  • Title

2

Honda 16952-ZE6-000

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

3

Honda 17511-ZM7-010

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use up to Engine SN 1066448.

$29.99

$

Usually ships in 3-6 days

0

3

Honda 17511-Z4C-810

SEE PART DETAILS - PRI; TANK, FUEL
(Superseded to 17511-Z4C-305)

Note: Use from Engine SN 1303830.

$

$

Not available

5

Honda 17532-Z0D-T00

RUBBER A, TANK MOUNTING

$2.49

$

Usually ships in 3-6 days

0

6

Honda 17533-Z0D-T00

RUBBER B, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17561-Z0D-000

STAY A, FUEL TANK

$6.99

$

In Stock, only 1 left!

0

8

Honda 17566-Z0D-T02

SEE PART DETAILS - PRI; STAY B, FUEL TANK

$8.99

$

Usually ships in 3-6 days

0

10

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

Note: Use up to Engine SN 1066448.

$5.49

$

In Stock, Qty 8

0

10

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

Note: Use up to Engine SN 1066448.

$5.49

$

In Stock, Qty 8

0

11

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

Note: Use up to Engine SN 1066448.

$1.49

$

In Stock, only 3 left!

0

12

Honda 17624-ZL8-013

GASKET, FUEL CAP

Note: Use up to Engine SN 1066448.

$2.99

$

In Stock, Qty 10

0

13

Honda 17701-Z0D-000

TUBE, FUEL

Note: Use up to Engine SN 1009677.

$2.99

$

In Stock, only 2 left!

0

13

Honda 17701-Z4E-023

TUBE, FUEL (FKM)
(Superseded to 17701-Z4E-033)

Note: Use from Engine SN 1009678 to 1161428.

$6.49

$

Usually ships in 3-6 days

0

13

Honda 17701-Z4E-023

TUBE, FUEL (FKM)
(Superseded to 17701-Z4E-033)

Note: Use from Engine SN 1161429.

$6.49

$

Usually ships in 3-6 days

0

14

Honda 19052-MB4-880

COLLAR, CANISTER MOUNTING

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

18

Honda 90510-KY1-000

WASHER, PLAIN (15MM)

$3.49

$

In Stock, Qty 5

0

21

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1009677.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1009677.

$2.49

$

In Stock, Qty 16

0

24

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1009678.

$2.99

$

In Stock, Qty 17

0

25

Honda 95002-41050-08

CLAMP, TUBE (D10.5)

Note: Use from Engine SN 1009678.

$3.49

$

In Stock, only 3 left!

0

26

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

Note: Use from Engine SN 1066449.

$22.99

$

In Stock, Qty 15

0
