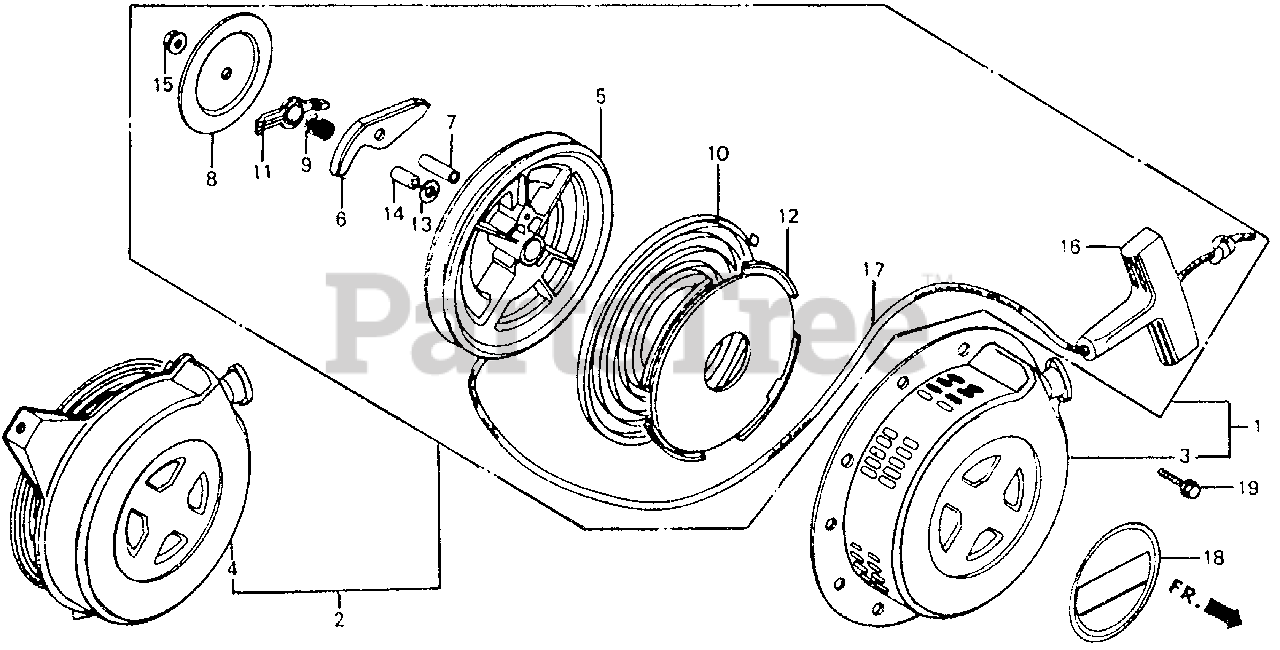

GX110 QA (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) RECOIL STARTER Parts Diagram

Engine, Made in Japan

RECOIL STARTER Parts Diagram

  • Title

2

Honda 28400-ZE1-811ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 3628831).
(Superseded to 28400-ZE1-811ZF)

$

$

Not available

2

Honda 28400-ZE1-811ZF

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 7540289).

$

$

Not available

4

Honda 28410-ZE1-811ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED) (Honda Code 3735503).

$

$

Not available

5

Honda 28420-ZE1-003

PULLEY, RECOIL STARTER (Honda Code 1428598).

$50.99

$

In Stock, only 1 left!

0

6

Honda 28422-ZE1-003

RATCHET, STARTER (Honda Code 1428606).

$6.99

$

In Stock, only 1 left!

0

7

Honda 28423-ZE1-003

PIN, STARTER RATCHET (Honda Code 1428614).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 28431-ZE1-003

PLATE, FRICTION (Honda Code 1428622).

$7.99

$

Usually ships in 3-6 days

0

9

Honda 28441-ZE1-003

SPRING, FRICTION (Honda Code 1428630).

$7.49

$

In Stock, only 2 left!

0

10

Honda 28442-ZE1-003

SPRING, RECOIL STARTER (Honda Code 1428648).

$25.99

$

In Stock, only 2 left!

0

11

Honda 28443-ZE1-003

GUIDE, RATCHET (Honda Code 1428655).

$17.99

$

In Stock, only 1 left!

0

12

Honda 28445-ZE1-003

CASE, RECOIL STARTER SPRING (Honda Code 1428663).

$18.99

$

Usually ships in 3-6 days

0

13

Honda 28446-ZE1-003

WASHER, STARTER (Honda Code 1428671).

$6.49

$

In Stock, only 1 left!

0

14

Honda 28447-ZE1-003

SHAFT, SUB (Honda Code 1428689).

$7.49

$

Usually ships in 3-6 days

0

15

Honda 28448-ZE1-003

NUT (Honda Code 1428697).

$

$

Not available

16

Honda 28461-ZE1-003

KNOB, RECOIL STARTER (Honda Code 1428747).
(Superseded to 28461-ZE1-013)

$9.99

$

In Stock, only 2 left!

0

17

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11) (Honda Code 1428754).

$10.99

$

In Stock, only 2 left!

0

18

Honda 87521-ZE0-810

EMBLEM (EXTERNAL) (Honda Code 1430990).

$

$

Not available

19

Honda 90011-ZG0-000

BOLT, FLANGE (6X8) (Honda Code 1795723).
(Superseded to 95701-06008-00)

Note: Use from Engine SN 1749365.

$4.99

$

In Stock, Qty 20+

0

19

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: Use up to Engine SN 1749364.

$1.99

$

In Stock, Qty 20+

0
