GX110 QXC (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) FAN COVER Parts Diagram

Engine, Made in Japan

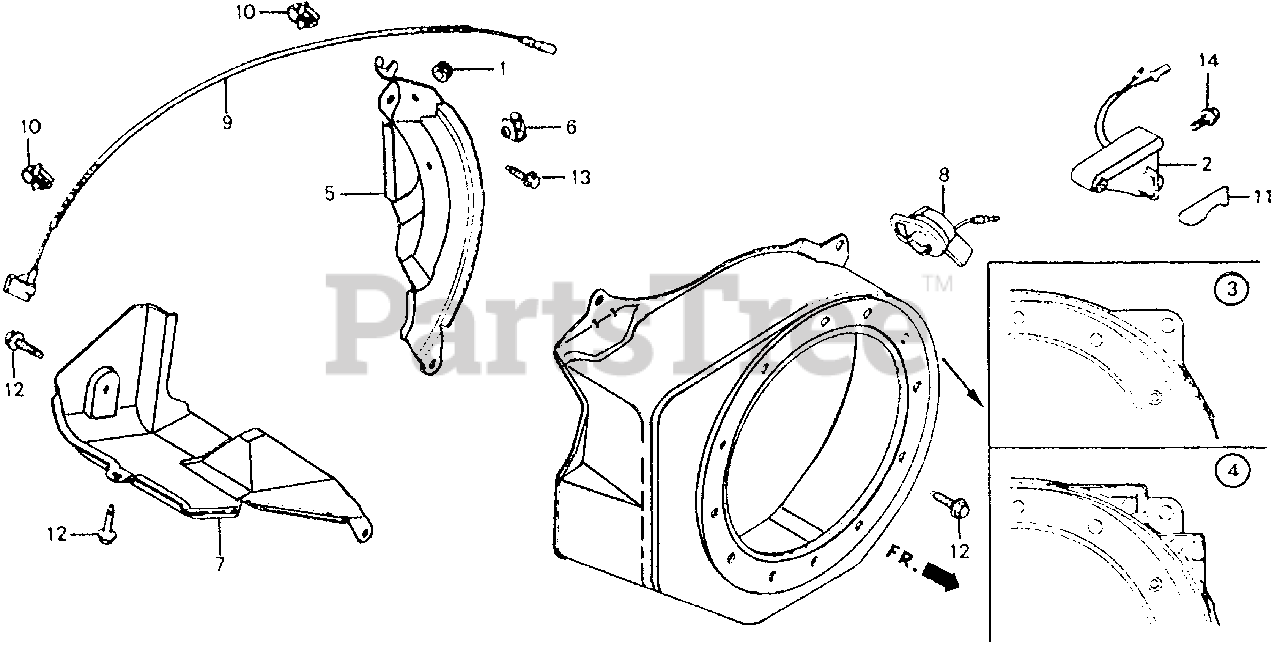

FAN COVER Parts Diagram

  • Title

1

Honda 11347-371-300

GROMMET, ADJUSTING COVER (Honda Code 0403352).

$2.49

$

Usually ships in 3-6 days

0

2

Honda 15520-ZE1-003

SEE PART DETAILS - PRI; ALERT UNIT, OIL (Honda Code 1554401).

$

$

Not available

4

Honda 19610-ZE0-810ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (OIL ALERT) (BRIGHT RED) (Honda Code 3720828).

$

$

Not available

5

Honda 19612-ZH7-810

SEE PART DETAILS - PRI; PLATE, SIDE (OIL ALERT) (Honda Code 3695640).

$

$

Not available

6

Honda 19613-ZE1-010

SEE PART DETAILS - PRI; CLAMP, CORD (Honda Code 5891544).

$1.99

$

Usually ships in 3-6 days

0

7

Honda 19631-ZE0-000

SHROUD (Honda Code 1428176).

$

$

Not available

9

Honda 36101-ZB2-000

SEE PART DETAILS - PRI; WIRE, STOP SWITCH (Honda Code 1497247).

Note: Use up to Engine SN 2255396.

$

$

Not available

9

Honda 36101-ZE1-000

SEE PART DETAILS - SUP; WIRE, STOP SWITCH (Honda Code 1429133).

Note: Use up to Engine SN 2255396.

$

$

Currently unavailable

9

Honda 36101-ZE1-010

WIRE, STOP SWITCH (370MM) (Honda Code 3684032).

Note: Use from Engine SN 2255397.

$10.99

$

In Stock, Qty 20+

0

10

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE (Honda Code 1429141).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 87532-ZE1-810

MARK, OIL ALERT (EXTERNAL) (Honda Code 1540988).

$

$

Not available

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 1 left!

0

14

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, Qty 6

0
