GX110 TX (GX110) - Honda Engine, Made in Japan (SN: GX110-1000001 - GX110-2454428) CARBURETOR Parts Diagram

Engine, Made in Japan

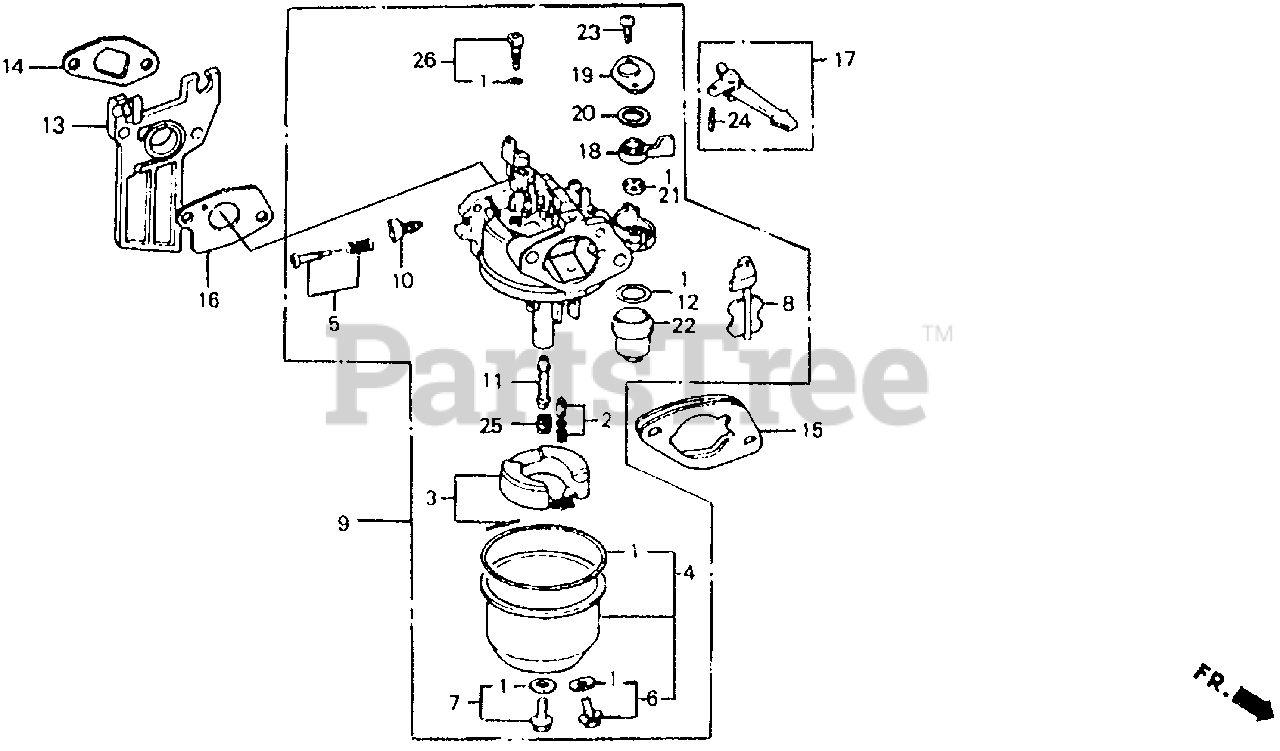

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-821

GASKET SET (Honda Code 1441468).

Note: Use up to Engine SN BE01C B.

$

$

Currently unavailable

1

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 1672179).
(Superseded to 16010-ZE1-812)

Note: Use from Engine SN BE01C C to BE01B F.

$22.99

$

In Stock, Qty 20+

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3477171).

Note: Use from Engine SN BE01C C to BE01B F.

$22.99

$

In Stock, Qty 20+

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3477171).

Note: Use from Engine SN BE01B G.

$22.99

$

In Stock, Qty 20+

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (Honda Code 1441476).

$33.99

$

In Stock, Qty 8

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$35.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (Honda Code 2464287).
(Superseded to 16015-ZE0-831)

Note: Use from Engine SN BE01C E.

$42.99

$

In Stock, only 3 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187).

Note: Use from Engine SN BE01C C.

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$15.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE0-005

CHOKE SET (Honda Code 1441526).

Note: Use up to Engine SN BE01C A.

$40.99

$

Usually ships in 3-6 days

0

8

Honda 16044-733-005

CHOKE SET (Honda Code 1493121).

Note: Use from Engine SN BE01C B.

$27.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE0-817

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE01B G) (Honda Code 3475027).

Note: Use from Engine SN 2006311.

$138.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE0-817

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE01B G) (Honda Code 3475027).

$138.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE0-821

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE01C A) (Honda Code 1517218).

Note: Use up to Engine SN 1143606.

$

$

Currently unavailable

9

Honda 16100-ZE0-823

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE01C C) (Honda Code 1831494).

Note: Use from Engine SN 1143607 to 1215360.

$

$

Currently unavailable

9

Honda 16100-ZE0-824

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE01C D) (NOT AVAILABLE) (Honda Code 1983915).

Note: Use from Engine SN 1215361 to 1290556.

$

$

Currently unavailable

9

Honda 16100-ZE0-827

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3521747).

Note: Use from Engine SN 1290557 to 2006310.

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE0-005

NOZZLE, MAIN (NOT AVAILABLE) (Honda Code 1441567).

Note: Use up to Engine SN BE01C C.

$

$

Currently unavailable

11

Honda 16166-ZE0-015

NOZZLE, MAIN (Honda Code 1929983).

Note: Use from Engine SN BE01C D.

$

$

Not available

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$8.49

$

In Stock, Qty 10

0

13

Honda 16211-ZE0-000

INSULATOR, CARBURETOR (Honda Code 1427129).

$22.99

$

In Stock, only 2 left!

0

14

Honda 16212-ZE0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4567582).

$4.49

$

In Stock, only 2 left!

0

15

Honda 16220-ZE1-000

SEE PART DETAILS - SUP; SPACER, CARBURETOR (Honda Code 1427152).
(Superseded to 16220-ZE1-020)

Note: Use up to Engine SN 1549317.

$9.99

$

In Stock, Qty 20+

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$9.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4301172).
(Superseded to 16221-ZH8-801)

$2.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-800

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357315).

$

$

Currently unavailable

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.99

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$12.99

$

In Stock, Qty 17

0

18

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

Note: Use from Engine SN BE01C C.

$16.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (Honda Code 5148135).

Note: Use from Engine SN BE01C C.

$4.99

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

Note: Use from Engine SN BE01C C.

$4.99

$

In Stock, Qty 5

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use from Engine SN BE01C C to BE01B F.

$4.99

$

In Stock, only 4 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE01C C to BE01B F.

$4.99

$

In Stock, only 4 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE01B G.

$4.99

$

In Stock, only 4 left!

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$24.99

$

In Stock, only 2 left!

0

23

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0420505).

Note: Use from Engine SN BE01B G.

$

$

Not available

23

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use from Engine SN BE01C C to BE01B F.

$1.49

$

In Stock, only 4 left!

0

24

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 9

0

25

Honda 99101-124-0550

JET, MAIN (#55) (Honda Code 0635458).

Note: (Optional).

$13.99

$

In Stock, only 1 left!

0

25

Honda 99101-124-0580

JET, MAIN (#58) (Honda Code 0635466).

Note: (Optional).

$12.99

$

In Stock, only 1 left!

0

25

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474).

Note: Use from Engine SN BE01C D.

$14.99

$

In Stock, only 2 left!

0

25

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482).

Note: Use up to Engine SN BE01C C.

$12.99

$

In Stock, only 1 left!

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$26.99

$

In Stock, only 3 left!

0
