GX120 K1 Q1 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CAMSHAFT Parts Diagram

Engine, Made in Japan

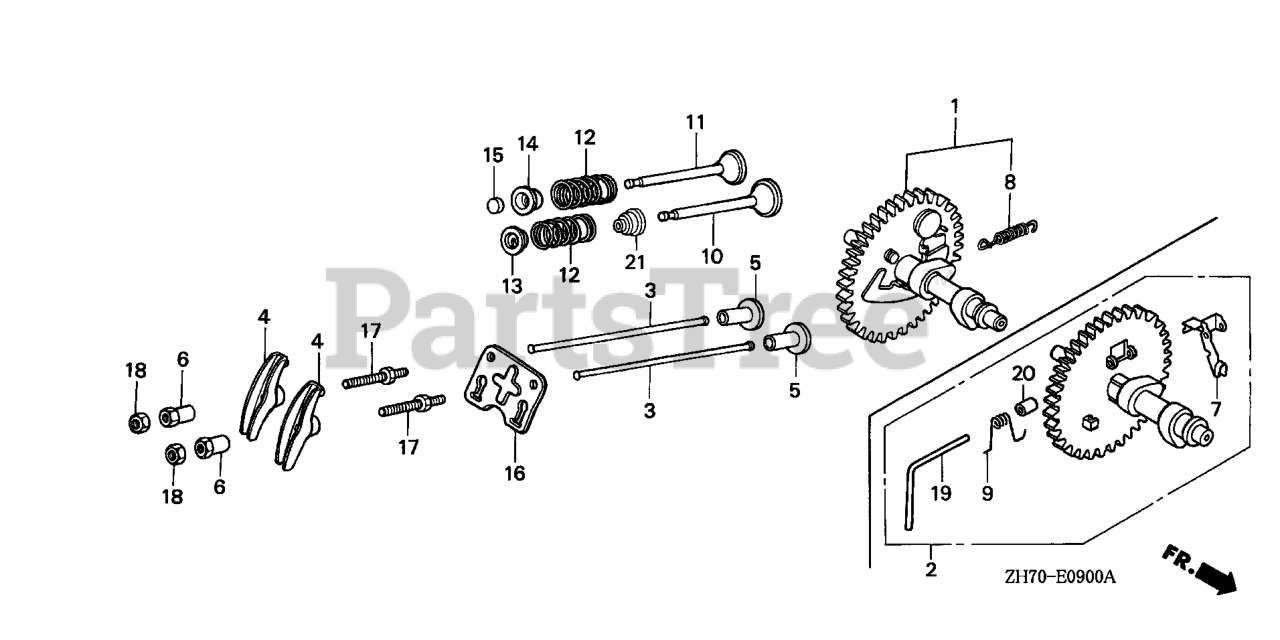

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE0-812

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1929595).

$162.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE0-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3337854).

$10.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$8.49

$

In Stock, Qty 13

0

5

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE (Honda Code 1426832).
(Superseded to 14441-ZE1-010)

Note: Use up to Engine SN 2828018.

$16.99

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$16.99

$

In Stock, only 2 left!

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$7.49

$

In Stock, Qty 17

0

8

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.99

$

In Stock, only 2 left!

0

10

Honda 14711-ZF0-010

SEE PART DETAILS - PRI; VALVE, IN.

$25.99

$

In Stock, only 1 left!

0

11

Honda 14721-ZE0-810

SEE PART DETAILS - PRI; VALVE, EX. (STELLITE)

Note: (Optional)

$

$

Not available

11

Honda 14721-ZF0-000

VALVE, EX.

Note: (Optional)

$69.99

$

Usually ships in 3-6 days

0

11

Honda 14721-ZH7-810

VALVE, EX. (STELLITE)

Note: (Optional)

$69.99

$

Usually ships in 3-6 days

0

12

Honda 14751-ZF1-000

SPRING, VALVE (Honda Code 3683489).

$5.49

$

In Stock, Qty 8

0

13

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 20+

0

14

Honda 14773-ZE1-000

SEE PART DETAILS - PRI; RETAINER, EX. VALVE SPRING

$11.99

$

In Stock, only 1 left!

0

15

Honda 14781-ZE1-000

ROTATOR, VALVE (Honda Code 1427004).

$6.99

$

In Stock, only 2 left!

0

16

Honda 14791-ZE0-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE (Honda Code 1929769).

$4.99

$

In Stock, only 2 left!

0

17

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$9.99

$

In Stock, Qty 17

0

18

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.99

$

In Stock, Qty 17

0

21

Honda 12209-ZH8-003

SEE PART DETAILS - PRI; SEAL, VALVE STEM (Honda Code 6854335).

Note: Use from Engine SN 3993726.

$5.99

$

In Stock, Qty 11

0
