GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) AIR CLEANER (OIL BATH) Parts Diagram

Engine, Made in Japan

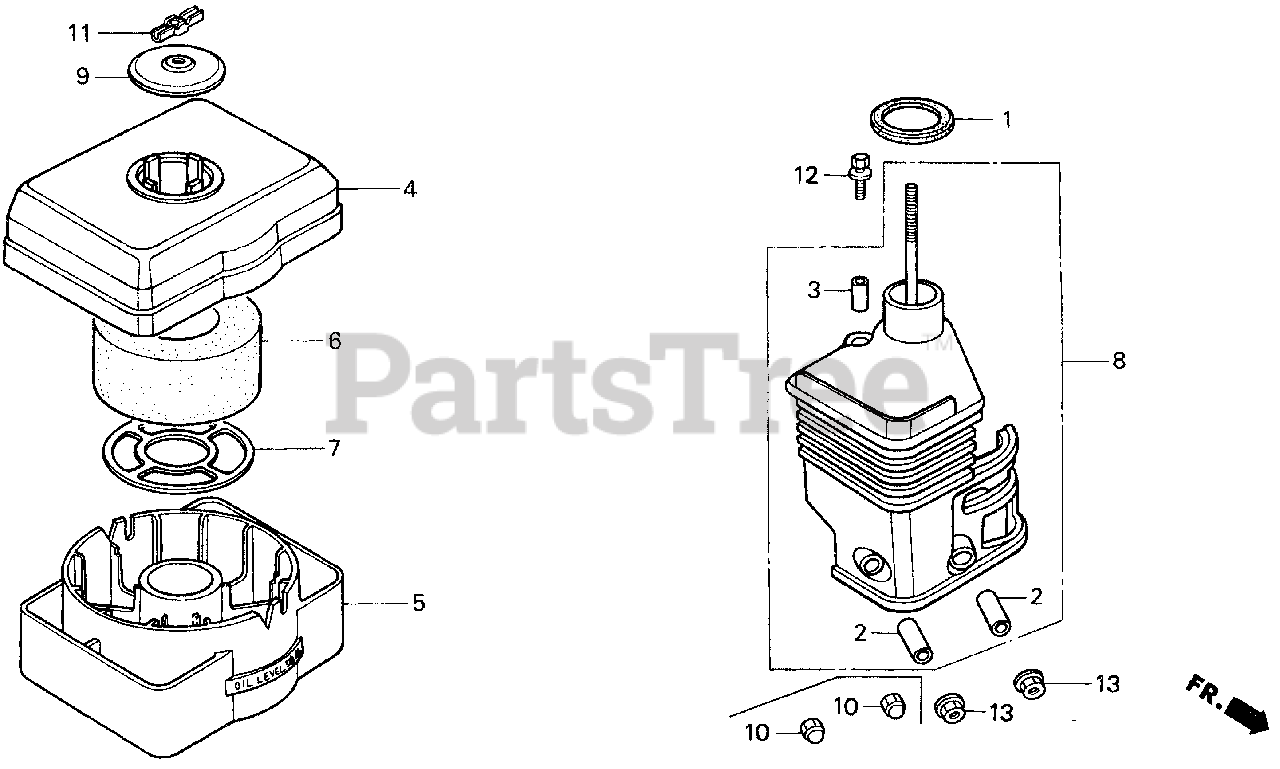

AIR CLEANER (OIL BATH) Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: (Honda Code 1427194).

$4.49

$

In Stock, Qty 20+

0

2

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

Note: (Honda Code 2535037).

$4.49

$

Usually ships in 3-6 days

0

3

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

Note: (Honda Code 1427533).

$4.49

$

In Stock, Qty 9

0

4

Honda 17401-ZE1-810

BODY, CLEANER (OIL BATH)

Note: (Honda Code 1427574).

$32.99

$

Usually ships in 3-6 days

0

5

Honda 17402-ZE1-810

PAN, CLEANER OIL (OIL BATH)

Note: (Honda Code 1427582).

$32.99

$

Usually ships in 3-6 days

0

6

Honda 17403-ZE1-810

ELEMENT, AIR CLEANER (OIL BATH)

Note: (Honda Code 1427590).

$5.99

$

In Stock, only 1 left!

0

7

Honda 17404-841-000

GRID, AIR CLEANER

Note: (Honda Code 0181180).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZE0-811

ELBOW, AIR CLEANER
(Superseded to 17410-ZE0-812)

Note: (Honda Code 2790269).

$8.49

$

Usually ships in 3-6 days

0

9

Honda 17421-ZE1-000

CAP, CLEANER

Note: (Honda Code 1427616).

$11.99

$

In Stock, Qty 6

0

10

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2299856. (Honda Code 0670729).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: (Honda Code 1742238).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 93404-06020-08

BOLT-WASHER (6X20)

Note: Use up to Engine SN 2519854. (Honda Code 2410694).

$1.99

$

In Stock, only 3 left!

0

12

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: Use from Engine SN 2519855. (Honda Code 2105815).

$1.99

$

In Stock, only 4 left!

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2299857. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
