GX120 K1 QA2 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CARBURETOR Parts Diagram

Engine, Made in Japan

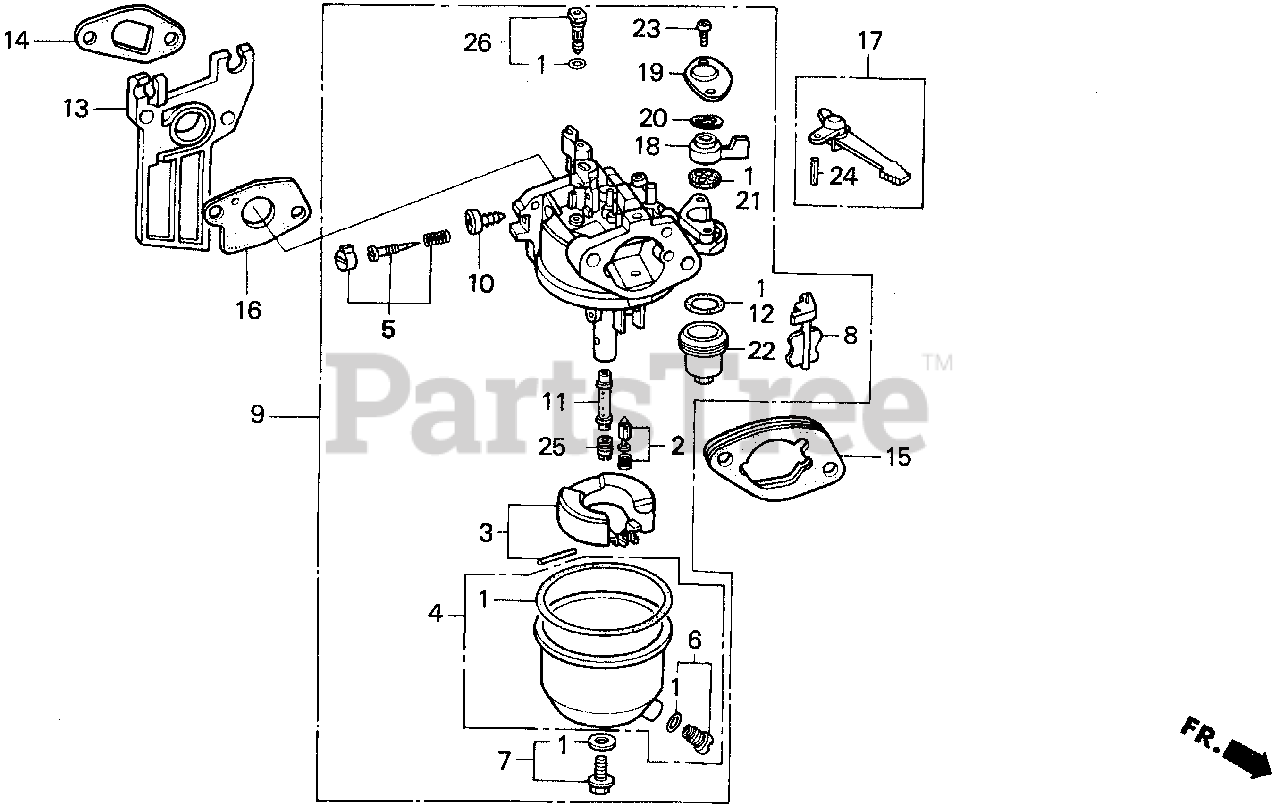

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-812

GASKET SET

Note: (Honda Code 3477171).

$21.99

$

In Stock, Qty 17

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

Note: (Honda Code 1441476).

$32.99

$

In Stock, Qty 6

0

3

Honda 16013-ZE0-005

FLOAT SET

Note: (Honda Code 1441492).

$34.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

Note: (Honda Code 2464287).

$41.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

SCREW SET

Note: (Honda Code 4219879).

$23.99

$

In Stock, only 4 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$11.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZE0-005

SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$14.99

$

In Stock, only 2 left!

0

9

Honda 16100-ZH7-W61

CARBURETOR ASSY. (BE60C B)

Note: (Honda Code 5266002).

$120.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$20.99

$

In Stock, only 2 left!

0

11

Honda 16166-ZH7-W50

NOZZLE, MAIN
(Superseded to 16166-ZK7-S91)

Note: (Honda Code 4229555).

$24.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.99

$

In Stock, Qty 20+

0

13

Honda 16211-ZE0-000

INSULATOR, CARBURETOR

Note: (Honda Code 1427129).

$22.99

$

In Stock, only 2 left!

0

14

Honda 16212-ZH7-800

GASKET, INSULATOR

Note: (Honda Code 3694833).

$3.49

$

In Stock, Qty 6

0

15

Honda 16220-ZE1-020

SPACER, CARBURETOR

Note: (Honda Code 2534055).

$9.49

$

In Stock, only 1 left!

0

16

Honda 16221-ZH8-801

GASKET, CARBURETOR

Note: (Honda Code 4725289).

$2.99

$

In Stock, Qty 20+

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Honda Code 1440114).

$11.99

$

In Stock, Qty 5

0

18

Honda 16953-ZE1-812

LEVER, VALVE

Note: (Honda Code 5140876).

$11.99

$

In Stock, only 2 left!

0

19

Honda 16954-ZE1-811

PLATE, LEVER SETTING

Note: (Honda Code 1807791).

$4.99

$

Usually ships in 0 days

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER

Note: (Honda Code 1807809).

$4.99

$

In Stock, only 2 left!

0

21

Honda 16957-ZE1-812

GASKET, VALVE

Note: (Honda Code 3440708).

$4.99

$

In Stock, only 3 left!

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Honda Code 1441583).

$24.99

$

In Stock, only 2 left!

0

23

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: (Honda Code 0420505).

$

$

Not available

24

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Honda Code 1441591).

$2.49

$

In Stock, only 2 left!

0

25

Honda 99101-ZH8-0580

JET, MAIN (#58)

Note: (Optional). (Honda Code 6128482).

$

$

Currently unavailable

25

Honda 99101-ZH8-0600

JET, MAIN (#60)

Note: (Optional). (Honda Code 6126650).

$

$

Not available

25

Honda 99101-ZH8-0620

JET, MAIN (#62)

Note: (Honda Code 6010227).

$

$

Currently unavailable

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: (Honda Code 1441609).

$25.99

$

In Stock, only 2 left!

0
