GX120 K1 QXC (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

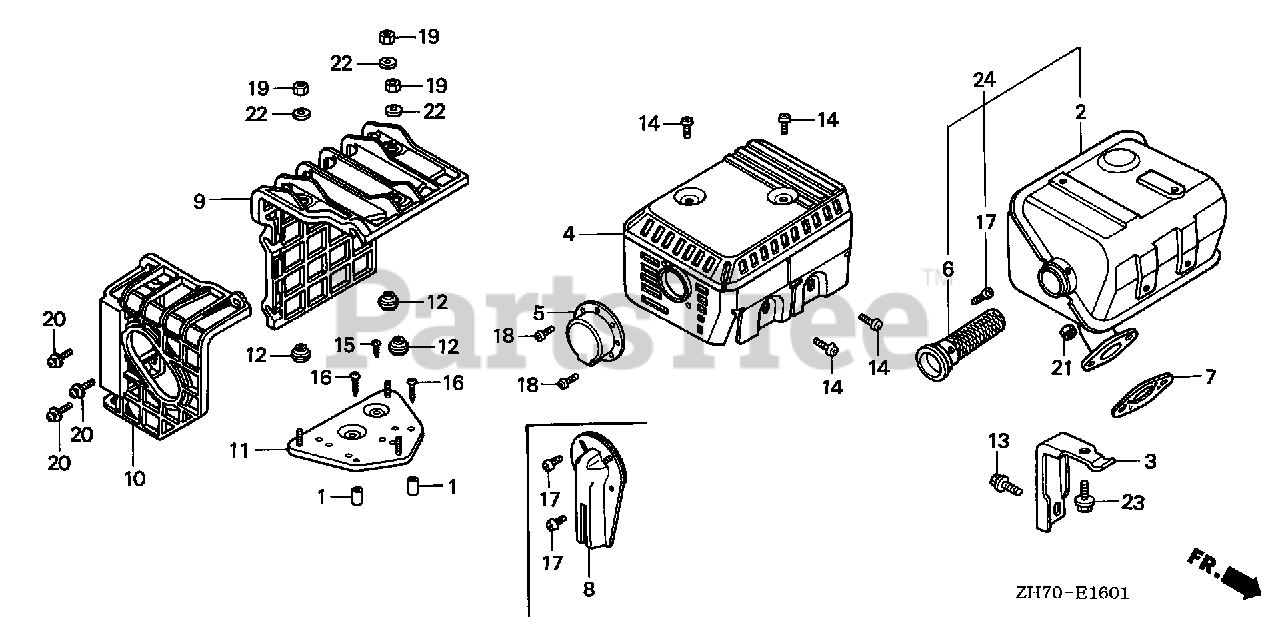

MUFFLER (2) Parts Diagram

  • Title

3

Honda 18315-ZE1-000

STAY, MUFFLER

$20.99

$

In Stock, only 2 left!

0

4

Honda 18320-ZF1-H51

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER (SILENT)
(Superseded to 18320-ZF1-H52)

Note: Use from Engine SN 2030019.

$47.99

$

In Stock, only 2 left!

0

4

Honda 18320-ZF1-H52

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER (SILENT)

Note: Use from Engine SN 2030019.

$47.99

$

In Stock, only 2 left!

0

4

Honda 18321-ZH8-820

PROTECTOR, MUFFLER (OUTER) (SILENT)
(Superseded to 18320-ZF1-H52)

Note: Use up to Engine SN 2030018.

$47.99

$

In Stock, only 2 left!

0

5

Honda 18331-883-810

CAP, MUFFLER

$12.99

$

In Stock, Qty 12

0

6

Honda 18355-ZE1-810

ARRESTER, SPARK (SILENT)

$22.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZH8-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

$4.99

$

In Stock, Qty 20+

0

7

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

$4.99

$

In Stock, Qty 20+

0

13

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

Note: Use up to Engine SN 2299936.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

17

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 20+

0

18

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 20+

0

21

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 7

0

24

Honda 183A1-ZE1-821

MUFFLER (SILENT)

$

$

Not available
