GX120 K1 S1 (GC01) - Honda Engine, Made in Japan (SN: GC01-2000001 - GC01-4299999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

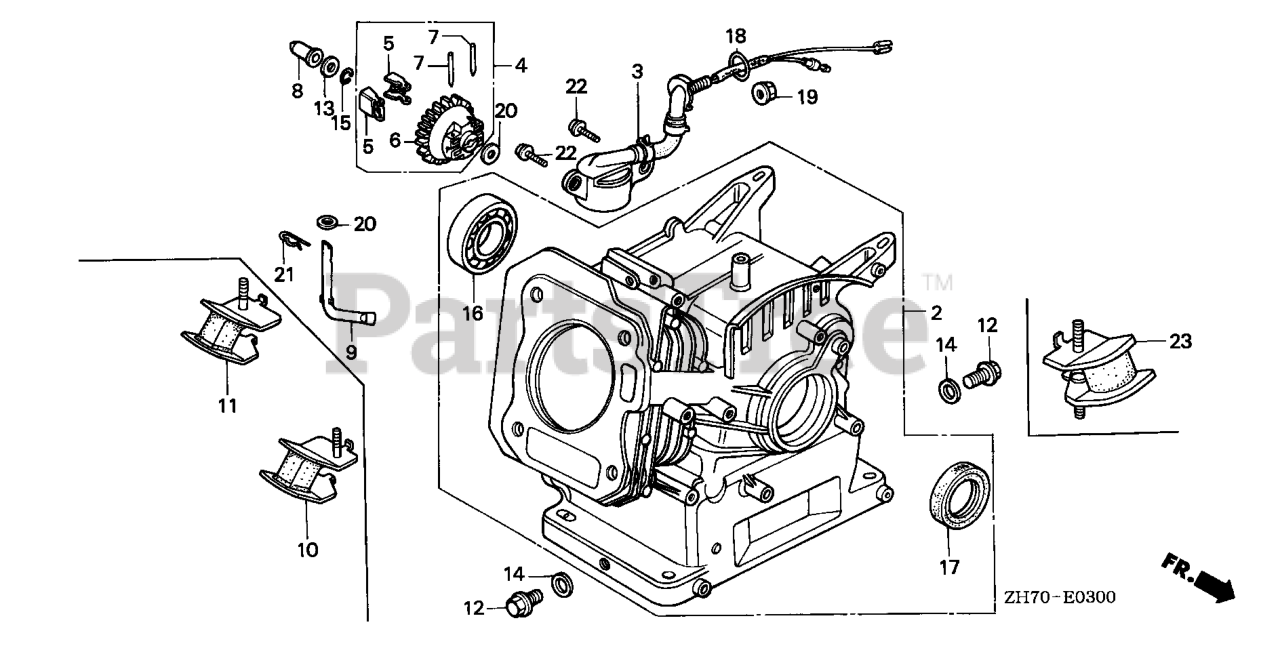

CYLINDER BARREL Parts Diagram

  • Title

2

Honda 12000-ZF0-425

CYLINDER ASSY.

Note: (Optional)

$535.99

$

Usually ships in 3-6 days

0

2

Honda 12000-ZH7-425

SEE PART DETAILS - PRI; CYLINDER ASSY.

Note: (Optional)

$512.99

$

Usually ships in 3-6 days

0

3

Honda 15510-ZE1-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

Note: Use from Engine SN 2186370. (Optional) Use up to Engine SN 2186369.

$75.99

$

In Stock, only 2 left!

0

4

Honda 16510-ZE1-000

GOVERNOR ASSY. (Honda Code 2414225).

$19.99

$

In Stock, Qty 5

0

5

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1427236).

$28.99

$

In Stock, only 1 left!

0

7

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.99

$

In Stock, only 2 left!

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, Qty 9

0

9

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM (Honda Code 1427277).

$14.99

$

Usually ships in 3-6 days

0

12

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

13

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

Note: (Optional)

$2.49

$

In Stock, Qty 17

0

14

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$0.99

$

In Stock, Qty 20+

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 20+

0

16

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

Note: (Optional)

$43.99

$

In Stock, only 2 left!

0

17

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756).

Note: (Optional)

$11.99

$

In Stock, Qty 16

0

18

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

Note: (Optional)

$4.49

$

In Stock, Qty 20+

0

19

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

Note: (Optional)

$2.49

$

In Stock, Qty 19

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

21

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

22

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0
