GX120 UT1 QX2 (GCAGT) - Honda Engine, Made in Thailand (SN: GCAGT-1000001 - GCAGT-9999999) RECOIL STARTER Parts Diagram

Engine, Made in Thailand

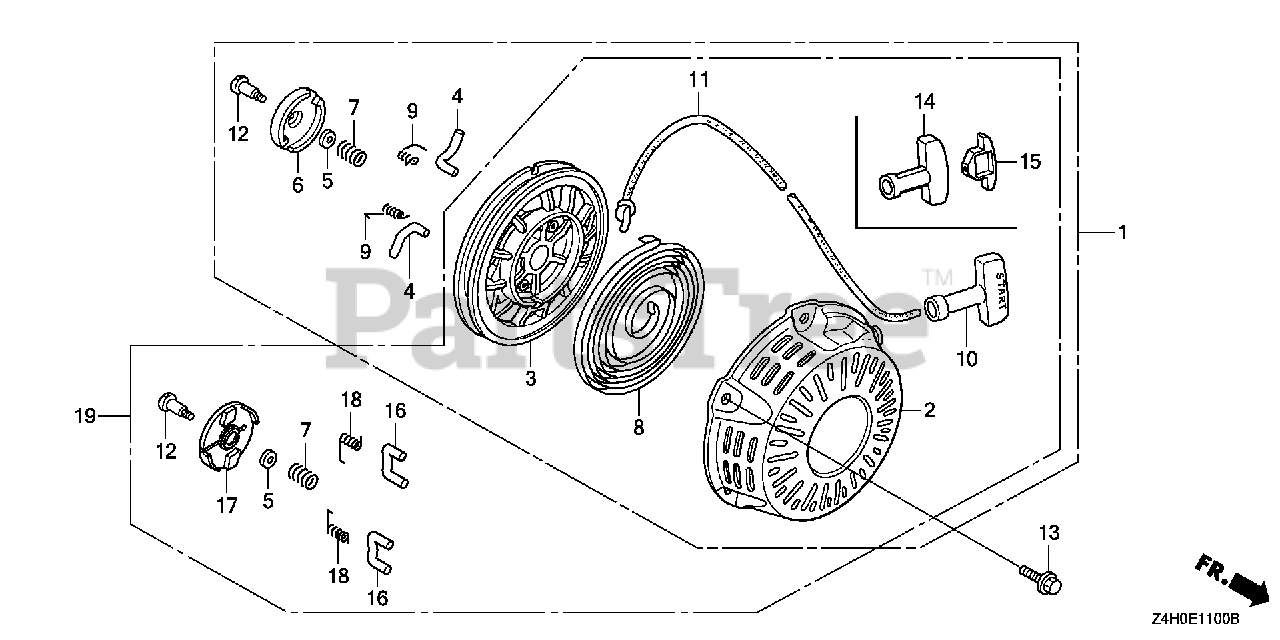

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z0T-003ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$101.99

$

In Stock, Qty 8

0

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (Honda Code 7346836). (POWER RED)

$133.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (Honda Code 7611965).

Note: Use up to Engine SN 1331315.

$39.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0T-003

REEL, RECOIL STARTER (BLACK)

Note: Use from Engine SN 1331316.

$40.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZH8-801

RATCHET, STARTER (Honda Code 7611973).

$7.49

$

In Stock, only 4 left!

0

5

Honda 28431-ZH8-801

PLATE, FRICTION (Honda Code 7611981).

$5.99

$

In Stock, only 2 left!

0

6

Honda 28433-ZH8-801

GUIDE, RATCHET (Honda Code 7611999).

$10.99

$

In Stock, only 1 left!

0

7

Honda 28441-ZH8-801

SPRING, FRICTION (Honda Code 7612005).

$4.99

$

In Stock, Qty 5

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

$20.99

$

In Stock, Qty 6

0

9

Honda 28443-ZH8-801

SPRING, RETURN (Honda Code 7612013).

$4.49

$

Usually ships in 3-6 days

0

10

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

Note: Use up to Engine SN 1278007.

$9.49

$

In Stock, only 3 left!

0

10

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use from Engine SN 1278008.

$9.49

$

In Stock, only 3 left!

0

11

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55") (Honda Code 3683968).

$13.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-801

SCREW, SETTING (Honda Code 7613474).

$4.99

$

In Stock, Qty 5

0

13

Honda 90008-ZE2-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 6437289).

$2.49

$

In Stock, Qty 20+

0
