GX140 QXE (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

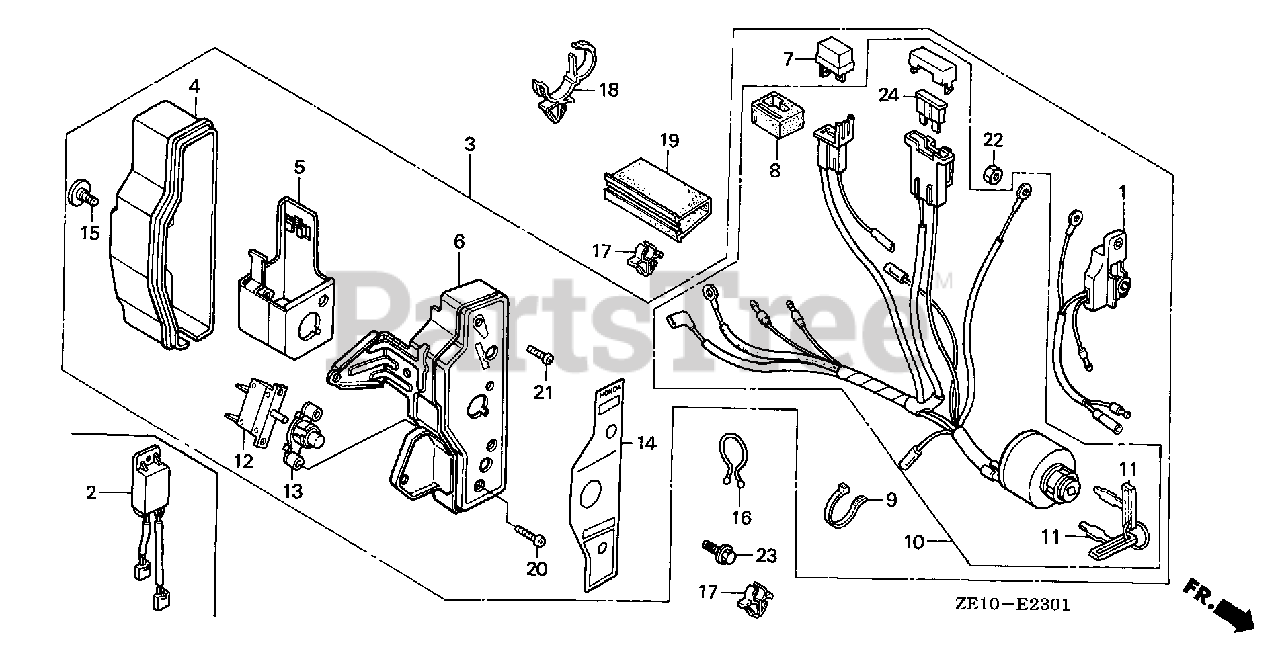

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 15520-ZE1-822

ALERT UNIT, OIL

$95.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE1-833ZB

SEE PART DETAILS - PRI; BOX ASSY., CONTROL *R8* (EXP-ALERT) (BRIGHT RED)

$250.99

$

Usually ships in 3-6 days

0

4

Honda 31612-ZE2-003

CASE, CONTROL

$20.99

$

In Stock, only 1 left!

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$17.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

$55.99

$

Usually ships in 3-6 days

0

7

Honda 31700-124-003

SEE PART DETAILS - SUP; RECTIFIER ASSY., SILICON (STANLEY)
(Superseded to 31700-124-008)

$36.99

$

In Stock, only 1 left!

0

8

Honda 32127-738-700

SUSPENSION, CONNECTOR

$4.49

$

Usually ships in 3-6 days

0

9

Honda 32902-892-003

BAND

$4.49

$

Usually ships in 3-6 days

0

10

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

Note: Use up to Engine SN 2983150.

$141.99

$

Usually ships in 3-6 days

0

10

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION Use from Engine SN 2983151.

$141.99

$

Usually ships in 3-6 days

0

11

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

$10.99

$

In Stock, Qty 8

0

11

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$10.99

$

In Stock, Qty 8

0

12

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

$31.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

14

Honda 87529-ZE2-831

PANEL, CONTROL BOX (EXTERNAL-ALERT)

$

$

Not available

15

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90682-ZE1-000

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SCREW, PAN (3X12)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

22

Honda 94001-04390-0S

NUT, HEX. (4MM)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

24

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0
