GX140 TX (GX140) - Honda Engine, Made in Japan (SN: GX140-1000001 - GX140-3263982) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

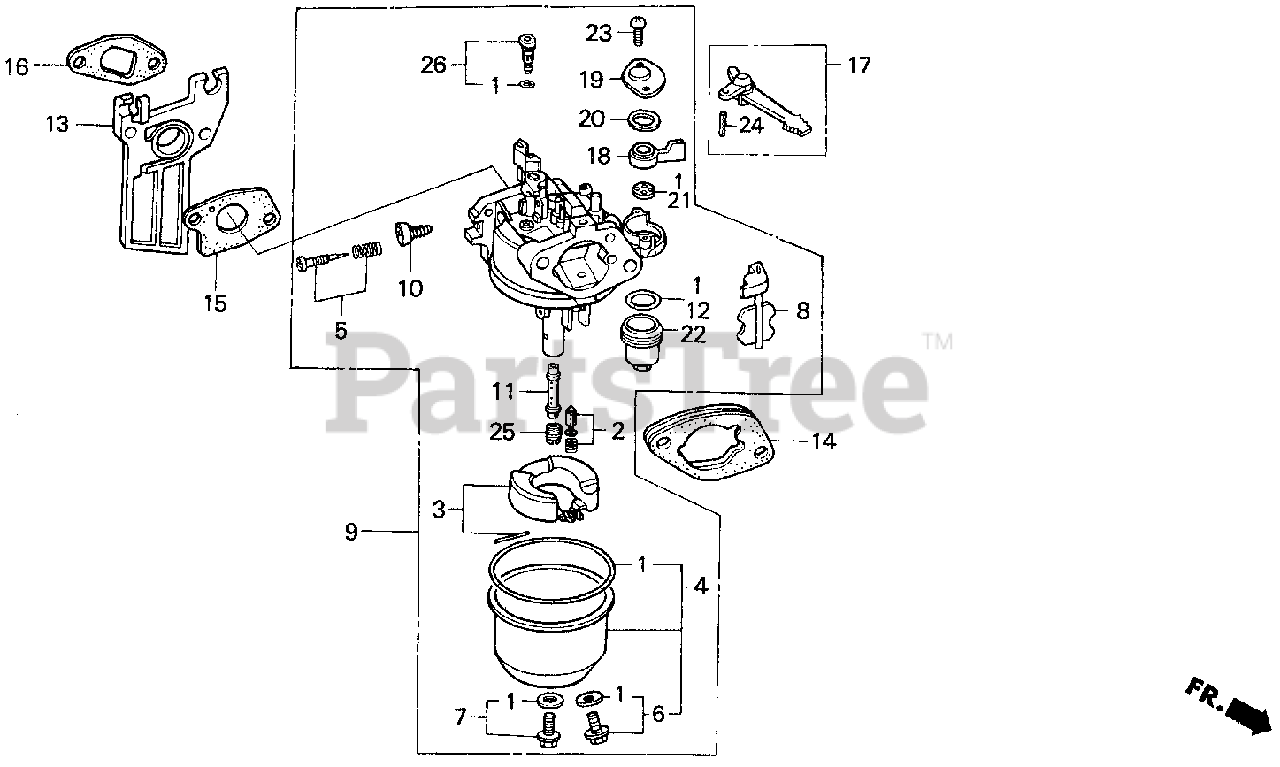

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 1672179).
(Superseded to 16010-ZE1-812)

Note: Use up to Engine SN BE05B D.

$22.99

$

In Stock, Qty 20+

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3477171).

Note: Use up to Engine SN BE05B D.

$22.99

$

In Stock, Qty 20+

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3477171).

Note: Use from Engine SN BE05B E.

$22.99

$

In Stock, Qty 20+

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (Honda Code 1441476).

$33.99

$

In Stock, Qty 7

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$35.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (Honda Code 2464287).
(Superseded to 16015-ZE0-831)

$42.99

$

In Stock, only 3 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187).

$12.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$15.99

$

In Stock, only 2 left!

0

8

Honda 16044-ZE0-005

CHOKE SET (Honda Code 1441526).

$40.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE1-814

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE05B D) (Honda Code 3178076).
(Superseded to 16100-ZE1-825)

Note: Use from Engine SN 2559751.

$138.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE1-815

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE05B E) (Honda Code 3416054).
(Superseded to 16100-ZE1-825)

Note: Use from Engine SN 2559751.

$138.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE1-815

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE05B E) (Honda Code 3416054).
(Superseded to 16100-ZE1-825)

$138.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE1-822

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE05C B) (W/STRAINER) (Honda Code 1893593).

Note: Use up to Engine SN 1378034.

$

$

Not available

9

Honda 16100-ZE1-825

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3521754).

Note: Use from Engine SN 2559751.

$138.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE1-825

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3521754).

$138.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE1-825

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3521754).

Note: Use from Engine SN 1378035 to 2559750.

$138.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 2 left!

0

11

Honda 16166-ZE1-005

NOZZLE, MAIN (Honda Code 1441575).

$30.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$8.49

$

In Stock, Qty 13

0

13

Honda 16211-ZE1-000

INSULATOR, CARBURETOR (Honda Code 1427137).

$27.99

$

In Stock, only 2 left!

0

14

Honda 16220-ZE1-000

SEE PART DETAILS - SUP; SPACER, CARBURETOR (Honda Code 1427152).
(Superseded to 16220-ZE1-020)

Note: Use up to Engine SN 1786084.

$9.99

$

In Stock, Qty 20+

0

14

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$9.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4301172).
(Superseded to 16221-ZH8-801)

$2.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZE0-800

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357315).

$

$

Currently unavailable

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.99

$

In Stock, Qty 20+

0

16

Honda 16223-ZE1-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4537353).

$4.49

$

In Stock, only 2 left!

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$12.99

$

In Stock, Qty 18

0

18

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

Note: Use from Engine SN BE05C B.

$16.99

$

Usually ships in 3-6 days

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (Honda Code 5148135).

Note: Use from Engine SN BE05C B.

$4.99

$

In Stock, only 2 left!

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

Note: Use from Engine SN BE05C B.

$4.99

$

In Stock, Qty 10

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use from Engine SN BE05C B to BE05B D.

$4.99

$

In Stock, only 3 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE05C B to BE05B D.

$4.99

$

In Stock, only 3 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE05B E.

$4.99

$

In Stock, only 3 left!

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$24.99

$

In Stock, only 1 left!

0

23

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0420505).

Note: Use from Engine SN BE05B E.

$

$

Not available

23

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use from Engine SN BE05C B to BE05B D.

$1.49

$

In Stock, only 4 left!

0

24

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 9

0

25

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482).

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0

25

Honda 99101-124-0650

JET, MAIN (#65) (Honda Code 0636126).

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

25

Honda 99101-124-0680

JET, MAIN (#68) (Honda Code 0636134).

$12.99

$

In Stock, only 1 left!

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$26.99

$

In Stock, only 4 left!

0
