GX160 H1 QX2 (GCAAH) - Honda Engine, Made in China (SN: GCAAH-1000001 - GCAAH-9999999) PISTON Parts Diagram

Engine, Made in China

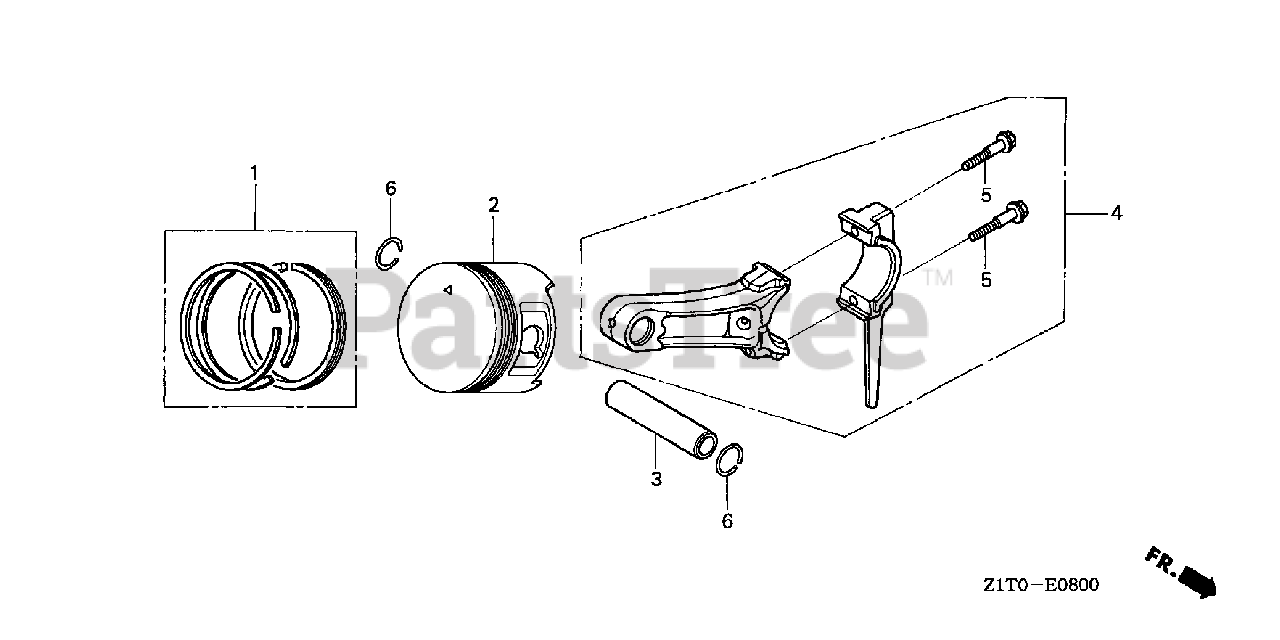

PISTON Parts Diagram

  • Title

1

Honda 13010-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$64.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD) (NIPPON)

$42.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z1T-003

RING SET, PISTON (STD) (RIKEN) (NA USE ALT:13010-ZL0-003)

Note: Use up to Engine SN 1401859.

$

$

Currently unavailable

1

Honda 13010-Z1T-801

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (RIKEN)

Note: Use from Engine SN 1401860.

$

$

Currently unavailable

1

Honda 13011-ZL0-003

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use from Engine SN 1401860.

$

$

Not available

1

Honda 13012-ZL0-003

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$71.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON)

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z1T-801

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional). Use from Engine SN 1401860.

$

$

Not available

1

Honda 13013-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$68.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZH8-010

SEE PART DETAILS - PRI; PISTON (STD)

$53.99

$

In Stock, only 2 left!

0

2

Honda 13102-ZH8-010

PISTON (0.25)

Note: (Optional).

$54.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH8-010

SEE PART DETAILS - PRI; PISTON (0.50)

Note: (Optional).

$54.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZH8-010

SEE PART DETAILS - PRI; PISTON (0.75)

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z1T-000

PIN, PISTON

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$14.99

$

In Stock, only 2 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 3 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 20+

0
