GX160 K1 AR (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) REDUCTION Parts Diagram

Engine, Made in Japan

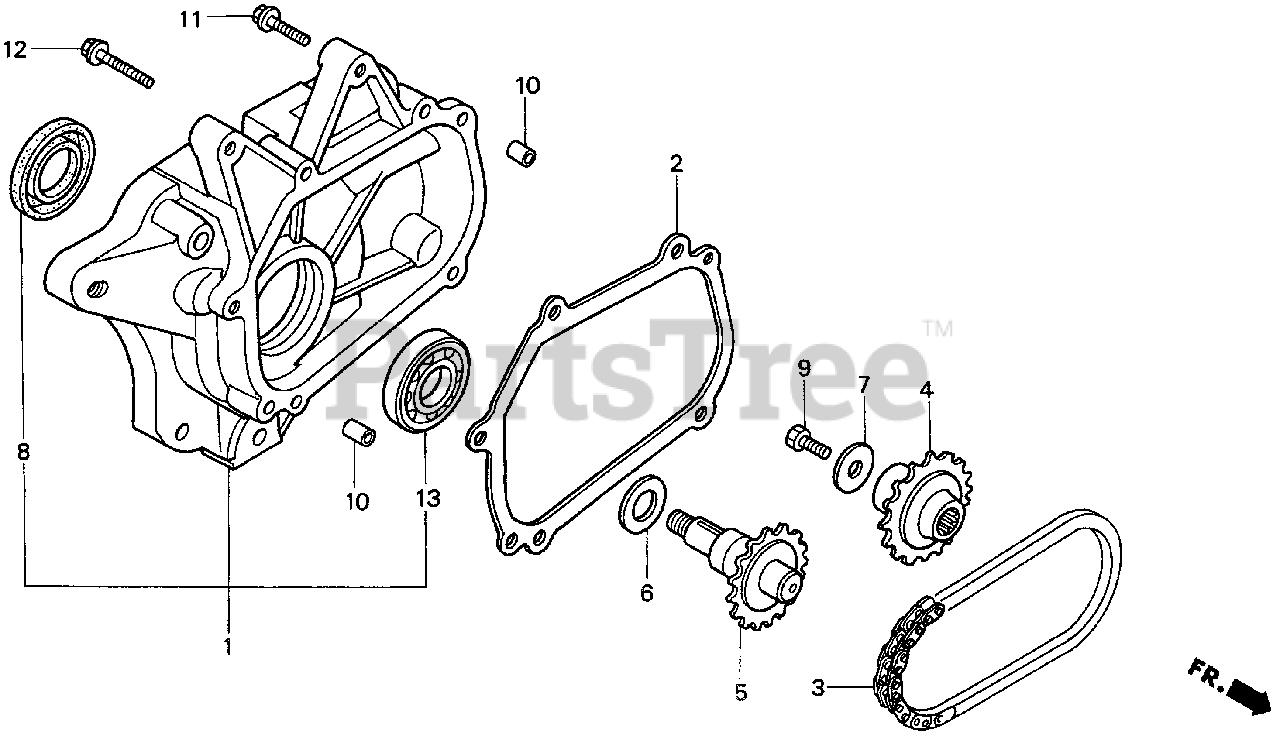

REDUCTION Parts Diagram

  • Title

1

Honda 11500-ZK7-V00

COVER ASSY., CHAIN CASE

Note: (Honda Code 5337969).

$224.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZK7-V00

GASKET, CHAIN CASE COVER

Note: (Honda Code 5318605).

$15.99

$

Usually ships in 3-6 days

0

3

Honda 14411-ZK7-V01

CHAIN, P.T.O. DRIVE

Note: (Honda Code 5337993).

$39.99

$

Usually ships in 3-6 days

0

4

Honda 23121-ZK7-V00

SPROCKET, DRIVE (17T)

Note: (Honda Code 5338157).

$67.99

$

Usually ships in 3-6 days

0

5

Honda 23151-ZK7-V00

SHAFT, P.T.O.

Note: (Honda Code 5338165).

$174.99

$

Usually ships in 3-6 days

0

6

Honda 90456-ZE1-000

SPRING, THRUST

Note: (Honda Code 2946226).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90471-ZE1-610

WASHER (8MM)

Note: (Honda Code 1904366).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 91201-ZG9-U71

OIL SEAL (25X38X7)

Note: (Honda Code 5230073).

$4.49

$

In Stock, only 3 left!

0

8

Honda 91252-888-003

OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

Note: (Honda Code 0671628).

$4.49

$

In Stock, only 3 left!

0

9

Honda 92101-08025-0A

BOLT, HEX. (8X25)

Note: (Honda Code 2651537).

$2.49

$

In Stock, Qty 7

0

10

Honda 94303-08140

PIN C, DOWEL (8X14)

Note: (Honda Code 0256800).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

12

Honda 95701-08055-00

BOLT, FLANGE (8X55)

Note: (Honda Code 2774438).

$2.99

$

In Stock, only 2 left!

0

13

Honda 96100-60050-00

BEARING, RADIAL BALL (6005)

Note: (Honda Code 0722181).

$13.99

$

Usually ships in 3-6 days

0
