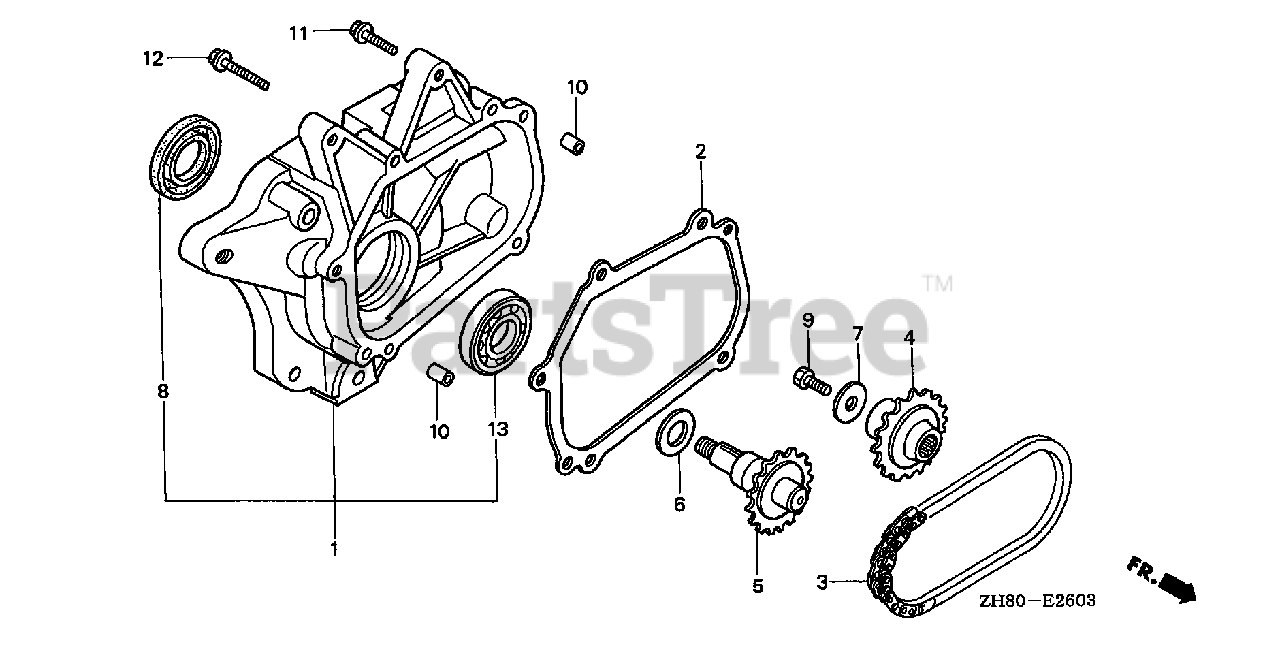

GX160 K1 AR (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) REDUCTION (4) Parts Diagram

Engine, Made in Japan

REDUCTION (4) Parts Diagram

  • Title

1

Honda 11500-ZK7-V00

COVER ASSY., CHAIN CASE

$254.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZK7-V00

GASKET, CHAIN CASE COVER

$19.99

$

Usually ships in 3-6 days

0

3

Honda 14411-ZK7-V01

CHAIN, P.T.O. DRIVE

$50.99

$

Usually ships in 3-6 days

0

4

Honda 23121-ZK7-V00

SPROCKET, DRIVE (17T)

$82.99

$

Usually ships in 3-6 days

0

5

Honda 23151-ZK7-V00

SHAFT, P.T.O. (16T)

$212.99

$

Usually ships in 3-6 days

0

6

Honda 90456-ZE1-000

SPRING, THRUST

$6.49

$

Usually ships in 3-6 days

0

7

Honda 90471-ZE1-610

WASHER (8MM)

$5.99

$

Usually ships in 3-6 days

0

8

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$5.49

$

In Stock, Qty 12

0

8

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$5.49

$

In Stock, Qty 12

0

9

Honda 92101-08025-0A

BOLT, HEX. (8X25)

$2.49

$

In Stock, only 2 left!

0

10

Honda 94303-08140

PIN, DOWEL (8X14)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$3.49

$

In Stock, Qty 15

0

12

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$3.99

$

In Stock, only 4 left!

0

13

Honda 96100-60050-00

BEARING, RADIAL BALL (6005)

$17.99

$

Usually ships in 3-6 days

0
