GX160 K1 HG1 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) MUFFLER (SILENT) Parts Diagram

Engine, Made in Japan

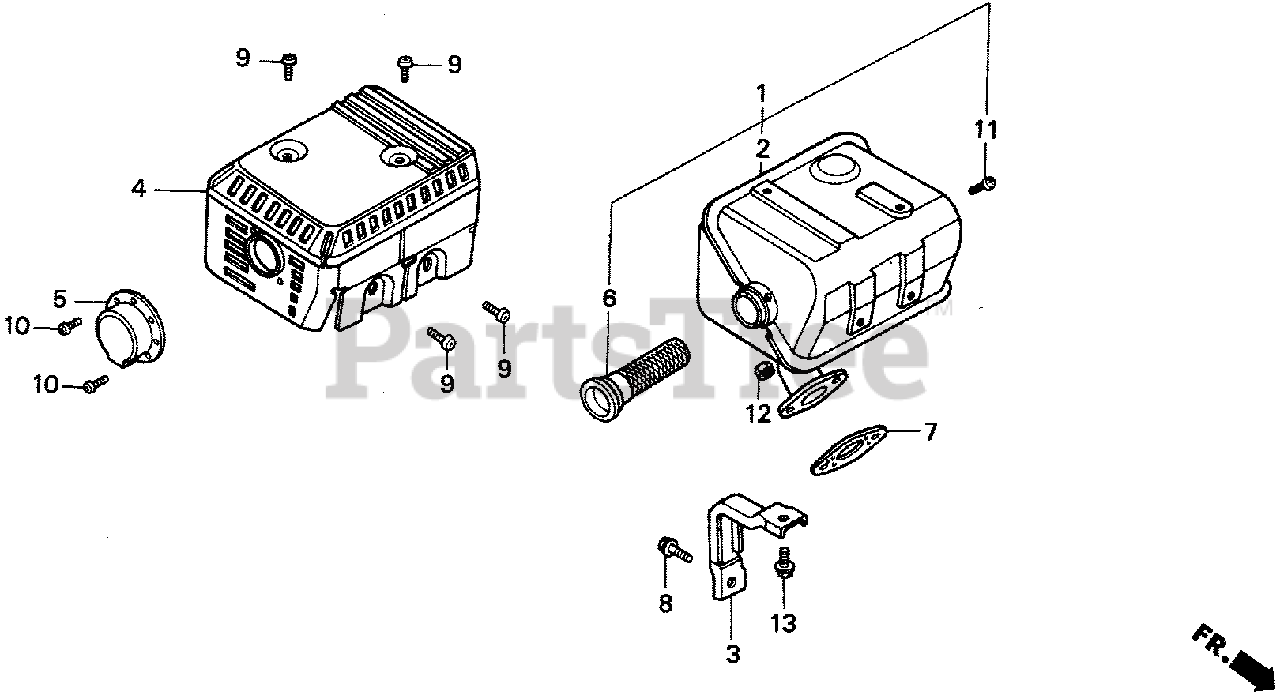

MUFFLER (SILENT) Parts Diagram

  • Title

2

Honda 18310-ZE1-821

MUFFLER (SILENT)

Note: (Honda Code 2574135).

$156.99

$

In Stock, only 1 left!

0

3

Honda 18315-ZE1-000

STAY, MUFFLER

Note: (Honda Code 1540830).

$21.99

$

In Stock, only 2 left!

0

4

Honda 18320-ZF1-H51

PROTECTOR, MUFFLER
(Superseded to 18320-ZF1-H52)

Note: Use from Engine SN 3240676. (Honda Code 4640850).

$49.99

$

In Stock, only 2 left!

0

4

Honda 18320-ZF1-H51

PROTECTOR, MUFFLER
(Superseded to 18320-ZF1-H52)

Note: Use up to Engine SN 3240675. (Honda Code 4640850).

$49.99

$

In Stock, only 2 left!

0

5

Honda 18331-883-810

CAP, MUFFLER

Note: (Honda Code 0636563).

$12.99

$

In Stock, Qty 12

0

6

Honda 18355-ZE1-000

ARRESTER, SPARK

Note: (Optional). (Honda Code 1427780).

$17.99

$

In Stock, only 3 left!

0

7

Honda 18381-ZH8-800

GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

Note: (Honda Code 3683745).

$4.99

$

In Stock, Qty 9

0

8

Honda 90016-ZE1-000

BOLT, FLANGE (6X13)

Note: (Honda Code 1541002).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90050-ZE3-H00

SCREW, TAPPING (5X8)

Note: (Honda Code 3831138).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

11

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional). (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

12

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: (Honda Code 0167338).

$1.99

$

In Stock, Qty 20+

0

13

Honda 95700-06012-00

BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

Note: (Honda Code 0487025).

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
