GX160 K1 HG12/A (GCAAK) - Honda Engine, Made in Japan (SN: GCAAK-1000001 - GCAAK-9999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

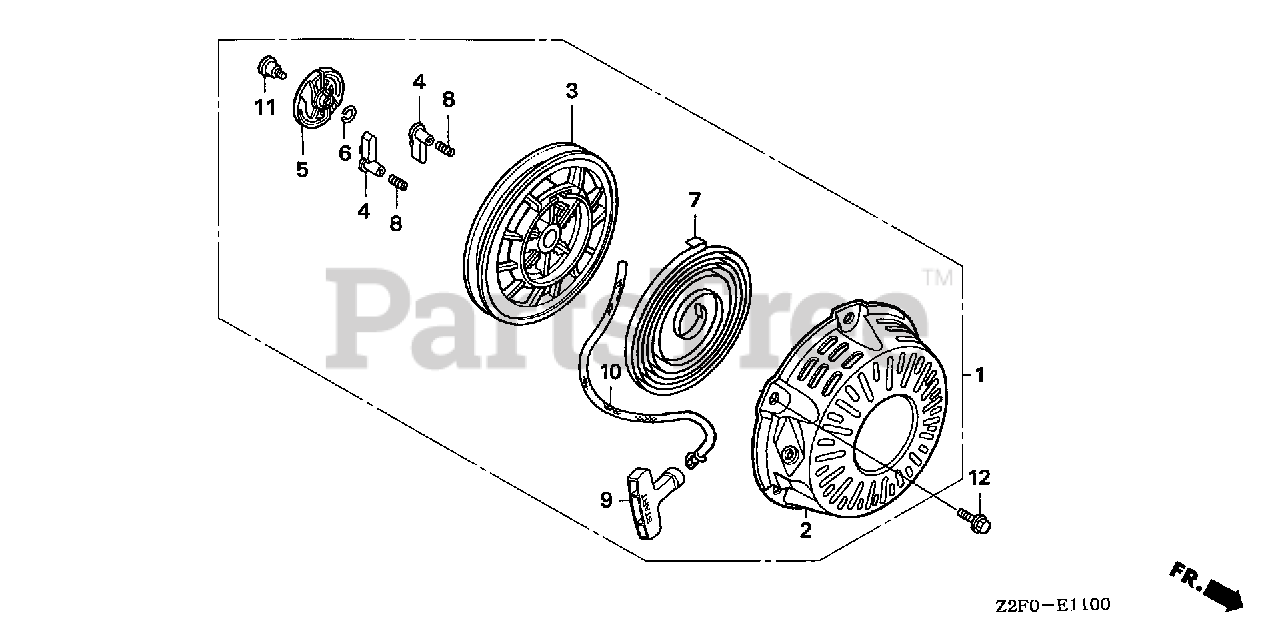

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZH8-R10ZD

STARTER ASSY., RECOIL *R280* (TURFCO) (POWER RED)

Note: Use up to Engine SN 1052604.

$

$

Not available

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use up to Engine SN 1052604.

$133.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

REEL, RECOIL STARTER (NATURAL)

Note: Use up to Engine SN 1052604.

$51.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

RATCHET, STARTER

Note: Use up to Engine SN 1052604.

$9.99

$

Usually ships in 3-6 days

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

Note: Use up to Engine SN 1052604.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

Note: Use up to Engine SN 1052604.

$6.99

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use up to Engine SN 1052604.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 28443-ZH8-003

SPRING, RETURN

Note: Use up to Engine SN 1052604.

$6.99

$

In Stock, only 3 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

Note: Use up to Engine SN 1052604.

$9.49

$

In Stock, only 2 left!

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

Note: Use up to Engine SN 1052604.

$9.49

$

In Stock, only 2 left!

0

10

Honda 28462-ZH8-R10

ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

Note: Use up to Engine SN 1052604.

$

$

Currently unavailable

11

Honda 90003-ZH8-003

SCREW, SETTING

Note: Use up to Engine SN 1052604.

$7.99

$

In Stock, only 2 left!

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 1052604.

$2.49

$

In Stock, Qty 20+

0
