GX160 K1 QXE (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

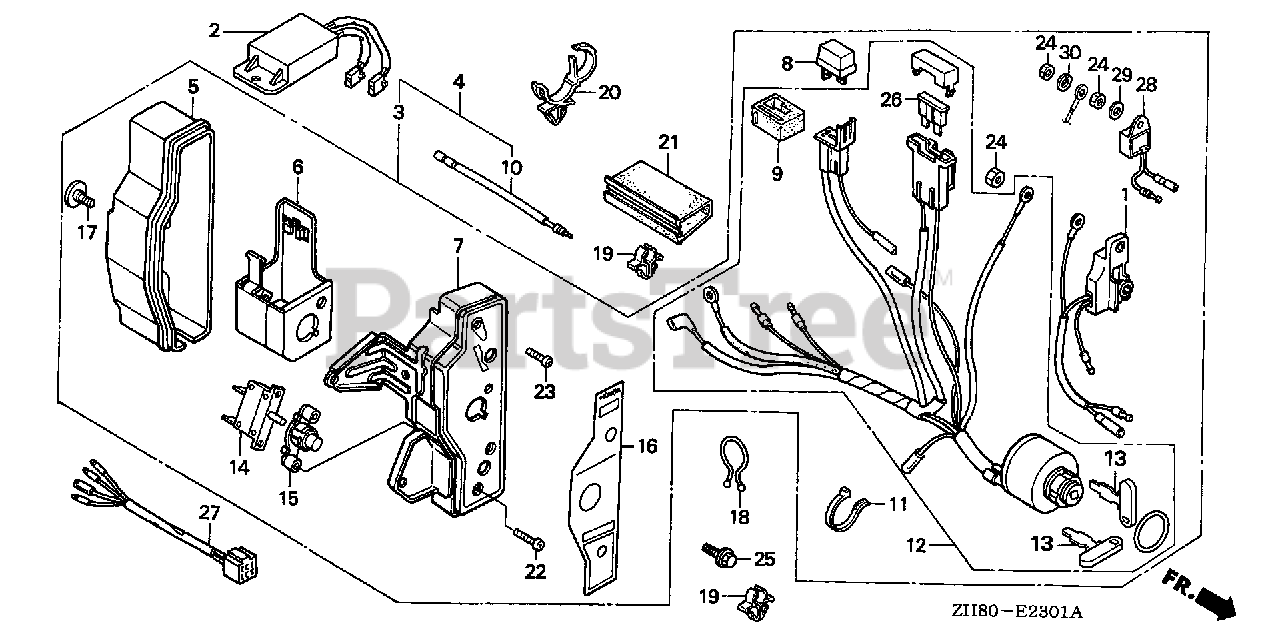

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 15520-ZE1-822

ALERT UNIT, OIL

Note: (Optional). Use up to Engine SN 2468252.

$

$

Not available

3

Honda 31610-ZE1-833ZB

BOX ASSY., CONTROL *R8* (EXP-ALERT) (BRIGHT RED)

Note: (Optional). Use up to Engine SN 2468252.

$305.99

$

Usually ships in 3-6 days

0

4

Honda 31610-ZE1-835ZG

SEE PART DETAILS - SUP; BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

Note: Use from Engine SN 2468253 to 8373305.

$

$

Not available

4

Honda 31610-ZE1-836ZG

SEE PART DETAILS - PRI; BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

Note: Use from Engine SN 2468253 to 8373305.

$258.99

$

Usually ships in 3-6 days

0

5

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

6

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

7

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

$68.99

$

Usually ships in 3-6 days

0

8

Honda 31700-124-008

RECTIFIER ASSY., SILICON (SHINDENGEN)

Note: (Optional).

$45.99

$

In Stock, only 2 left!

0

9

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 32197-ZE1-003

SUB-WIRE HARNESS

Note: Use from Engine SN 2468253.

$13.99

$

Usually ships in 3-6 days

0

11

Honda 32902-892-003

BAND

Note: (Optional).

$5.49

$

In Stock, Qty 9

0

12

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

Note: (Optional).

$174.99

$

Usually ships in 3-6 days

0

13

Honda 35111-880-013

KEY (HONDALOCK)

Note: (Optional).

$13.99

$

In Stock, only 2 left!

0

14

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

15

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

16

Honda 87529-ZE2-812

MARK, CONTROL BOX (EXP)

Note: Use from Engine SN 2468253.

$15.99

$

Usually ships in 3-6 days

0

16

Honda 87529-ZE2-831

PANEL, CONTROL BOX (EXTERNAL-ALERT) (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 2468252.

$

$

Not available

17

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90682-ZE1-000

CLIP, CORD

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

21

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

22

Honda 93500-03012-0H

SCREW, PAN (3X12)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0

24

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use up to Engine SN 5372718.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use from Engine SN 5372719.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

26

Honda 98200-30500

FUSE, BLADE (5A)

Note: (Optional).

$1.99

$

In Stock, only 3 left!

0

28

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 5372719.

$59.99

$

In Stock, only 3 left!

0

29

Honda 94101-04800

WASHER, PLAIN (4MM)

Note: Use from Engine SN 5372719.

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Engine SN 5372719.

$1.49

$

Usually ships in 3-6 days

0
