GX160 K1 QXE2 (GC02) - Honda Engine, Made in Japan (SN: GC02-2000001 - GC02-8669999) CONTROL BOX Parts Diagram

Engine, Made in Japan

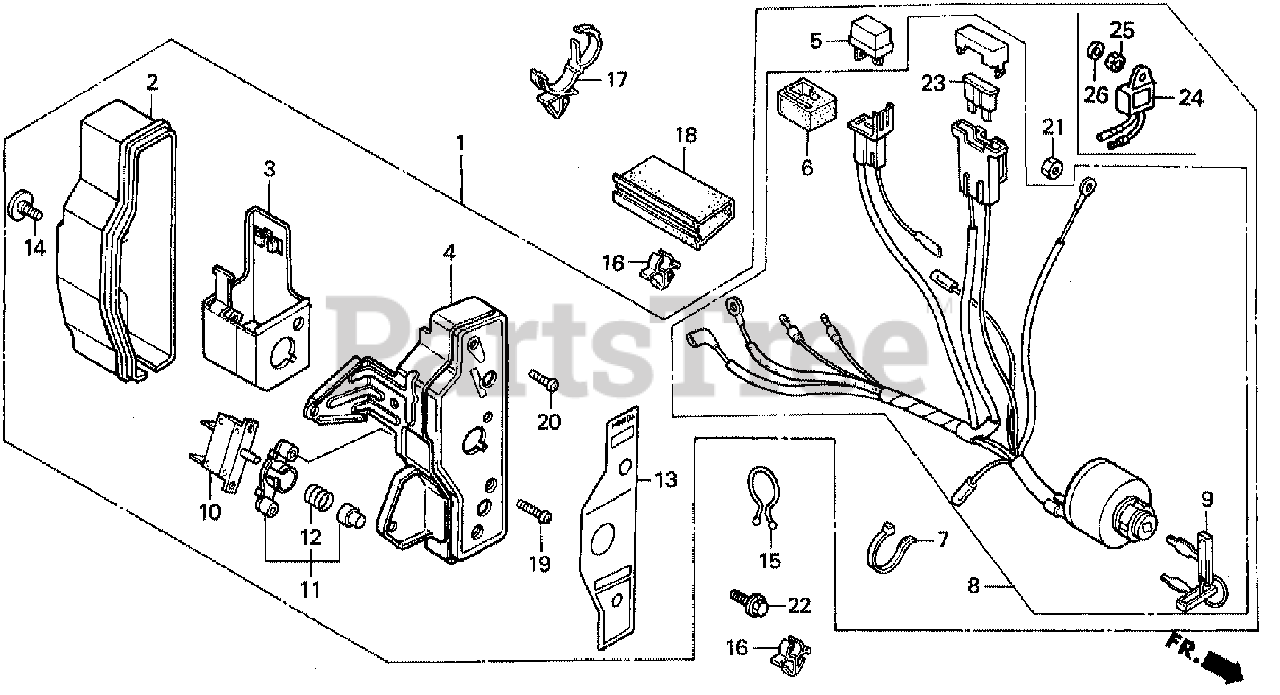

CONTROL BOX Parts Diagram

  • Title

1

Honda 31610-ZE1-835ZA

BOX ASSY., CONTROL *R8* (EXTERNAL-ALERT) (BRIGHT RED)
(Superseded to 31610-ZE1-836ZA)

Note: (Honda Code 6014765).

$238.99

$

Usually ships in 3-6 days

0

1

Honda 31610-ZE1-835ZB

BOX ASSY., CONTROL *R8* (EXTERNAL-ALERT) (BRIGHT RED)

Note: (Honda Code 6014740).

$

$

Currently unavailable

2

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Honda Code 2095875).

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Honda Code 2095883).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZA

PANEL, CONTROL *NH1* (BLACK)

Note: (Honda Code 4313300).

$74.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZB

PANEL, CONTROL *R8* (BRIGHT RED)

Note: (Honda Code 4089207).

$

$

Currently unavailable

5

Honda 31700-124-003

RECTIFIER ASSY., SILICON (STANLEY)
(Superseded to 31700-124-008)

Note: (Honda Code 0351346).

$43.99

$

In Stock, only 2 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Honda Code 2026631).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 32902-892-003

BAND

Note: (Honda Code 0947457).

$5.49

$

In Stock, Qty 11

0

8

Honda 35100-ZE1-812

SWITCH ASSY., COMBINATION

Note: (Honda Code 3629060).

$169.99

$

Usually ships in 3-6 days

0

9

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: (Honda Code 0485706).

$12.99

$

In Stock, only 3 left!

0

10

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: (Honda Code 1751288).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Honda Code 1888676).

$22.99

$

Usually ships in 3-6 days

0

12

Honda 38253-898-000

SPRING, COIL

Note: (Honda Code 2085595).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 87529-ZE2-811

PANEL, CONTROL BOX (EXTERNAL)

Note: (Honda Code 4214185).

$

$

Currently unavailable

14

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Honda Code 1490648).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Honda Code 2159598).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90682-ZE1-000

CLIP, CORD

Note: (Honda Code 3629169).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

Note: (Honda Code 1181965).

$10.99

$

Usually ships in 3-6 days

0

18

Honda 91406-ZE2-003

TUBE, FASTENER (30)

Note: (Honda Code 2159762).

$7.99

$

Usually ships in 3-6 days

0

19

Honda 93500-03012-0H

SCREW, PAN (3X12)

Note: (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Honda Code 0285643).

$1.49

$

In Stock, Qty 6

0

21

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use from Engine SN 5380586. (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

23

Honda 98200-30500

FUSE, BLADE (5A)

Note: (Honda Code 1938737).

$1.99

$

In Stock, Qty 5

0

24

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 5380586. (Honda Code 5858444).

$57.99

$

In Stock, only 3 left!

0

25

Honda 94101-04800

WASHER, PLAIN (4MM)

Note: Use from Engine SN 5380586. (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Engine SN 5380586. (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0
