GX160 U1 QXE8 (GCACK) - Honda Engine, Made in Japan (SN: GCACK-1000001 - GCACK-9999999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

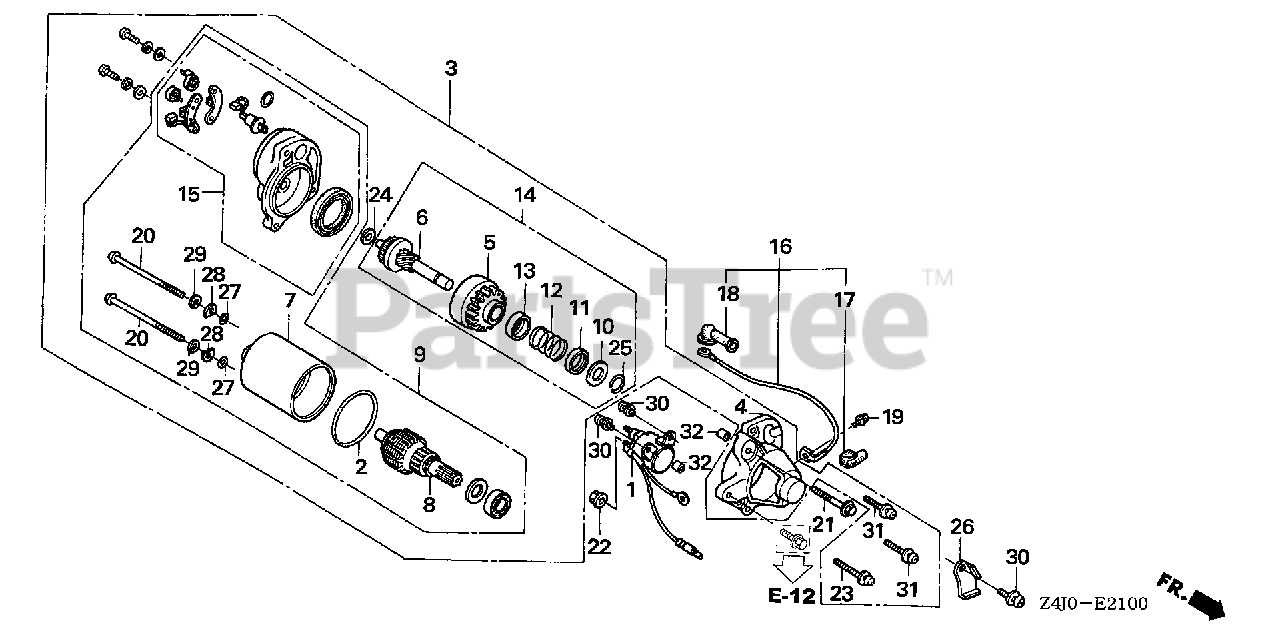

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31204-ZE1-013

SWITCH, STARTING MAGNET

$94.99

$

Usually ships in 3-6 days

0

2

Honda 31206-KN7-670

O-RING

$3.49

$

Usually ships in 3-6 days

0

3

Honda 31210-ZE1-023

STARTER MOTOR UNIT (SM-11203) (162MM)

$338.99

$

Usually ships in 3-6 days

0

4

Honda 31212-ZE1-003

COVER, GEAR

$105.99

$

Usually ships in 3-6 days

0

5

Honda 31214-ZE1-003

PINION ASSY.

$180.99

$

Usually ships in 3-6 days

0

6

Honda 31215-ZE1-003

SHAFT UNIT, GEAR

$123.99

$

Usually ships in 3-6 days

0

7

Honda 31216-ZE1-003

YOKE ASSY.

$52.99

$

Usually ships in 3-6 days

0

8

Honda 31217-ZE1-013

ROTOR ASSY.

$75.99

$

Usually ships in 3-6 days

0

9

Honda 31220-ZE1-013

MOTOR ONLY

$324.99

$

Usually ships in 3-6 days

0

10

Honda 31221-ZE1-003

PIECE A, STOPPER

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31222-ZE1-003

PIECE B, STOPPER

$13.99

$

Usually ships in 3-6 days

0

12

Honda 31223-ZE1-003

SPRING, RETURN

$9.99

$

Usually ships in 3-6 days

0

13

Honda 31224-ZE1-003

COVER, SPRING

$12.99

$

Usually ships in 3-6 days

0

14

Honda 31230-ZE1-003

GEAR ASSY.

$308.99

$

Usually ships in 3-6 days

0

15

Honda 31235-ZE1-013

BRACKET, FR.

$183.99

$

Usually ships in 3-6 days

0

16

Honda 32410-ZE1-010

WIRE, MAGNETIC SWITCH

$16.99

$

Usually ships in 3-6 days

0

17

Honda 32411-ZE1-000

COVER, MAGNETIC SWITCH

$4.49

$

Usually ships in 3-6 days

0

18

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90010-ZE1-003

SCREW-WASHER (5X8)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90012-ZE1-003

BOLT, SETTING

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.99

$

In Stock, only 4 left!

0

22

Honda 90071-MB0-000

NUT-WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 93892-05030-08

SCREW-WASHER (5X30)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90502-187-701

WASHER, PINION

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90603-ZE1-003

CIRCLIP (10.2MM)

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90631-ZE1-003

HOLDER, HARNESS

$5.99

$

Usually ships in 3-6 days

0

27

Honda 91301-ZE1-003

O-RING

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91402-ZE6-003

WASHER, SPECIAL

$2.99

$

Usually ships in 3-6 days

0

29

Honda 91403-ZE6-003

WASHER, SPRING

$2.49

$

Usually ships in 3-6 days

0

30

Honda 93892-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 93892-05020-08

SCREW-WASHER (5X20)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 94301-08100

SEE PART DETAILS - PRI; PIN, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0
