GX160 UH2 QX2 (GCBCH) - Honda Engine, Made in China (SN: GCBCH-1000001 - GCBCH-9999999) FUEL TANK Parts Diagram

Engine, Made in China

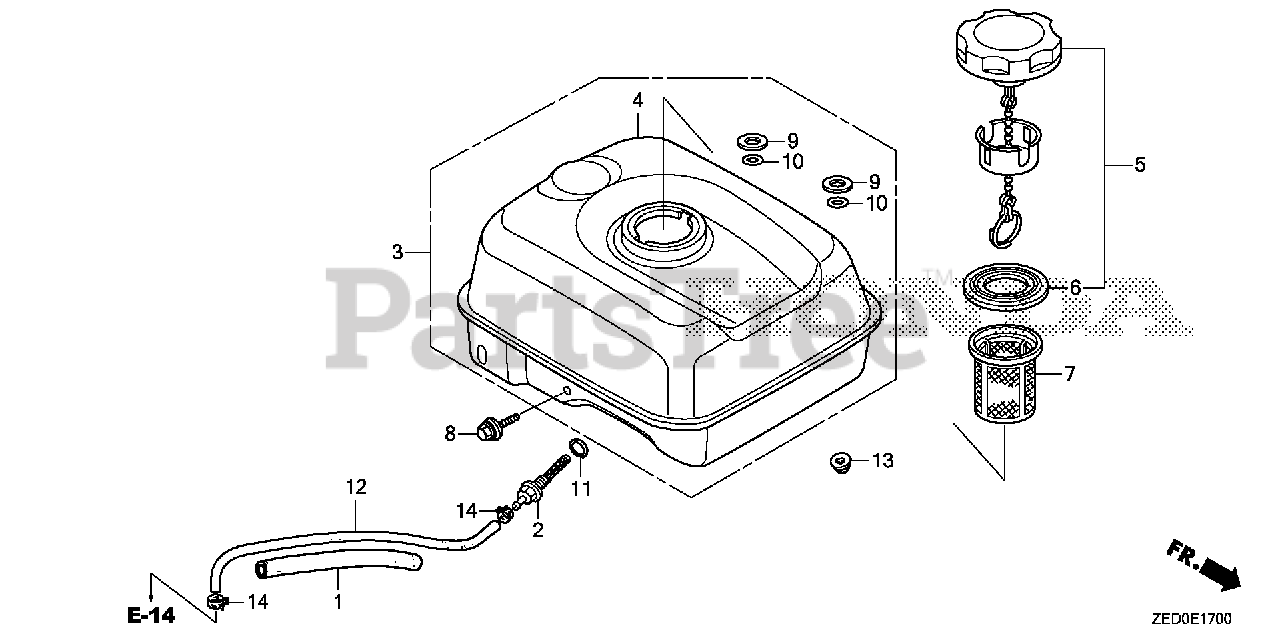

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

Note: (Optional)

$9.99

$

In Stock, Qty 13

0

2

Honda 16955-Z1T-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, only 2 left!

0

4

Honda 17510-Z1T-930ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$209.99

$

Usually ships in 3-6 days

0

4

Honda 17510-Z1T-930ZB

TANK, FUEL *NH1* (BLACK)

$209.99

$

Usually ships in 3-6 days

0

5

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$82.99

$

Usually ships in 3-6 days

0

6

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, only 3 left!

0

8

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

Note: (Optional)

$1.99

$

In Stock, only 4 left!

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

12

Honda 91424-Z4M-003

TUBE, FUEL (4.5X145) (FKM)
(Superseded to 91424-Z4M-013)

Note: Use up to Engine SN 1101308.

$

$

Not available

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

14

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

In Stock, only 3 left!

0

6

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

12

Honda 91424-Z4M-013

TUBE, FUEL (4.5X145) (FKM)
(Superseded to 91424-Z4M-023)

$8.99

$

In Stock, only 2 left!

0
