GX160 UT1 SG24 (GCAFT) - Honda Engine, Made in Thailand (SN: GCAFT-1000001 - GCAFT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

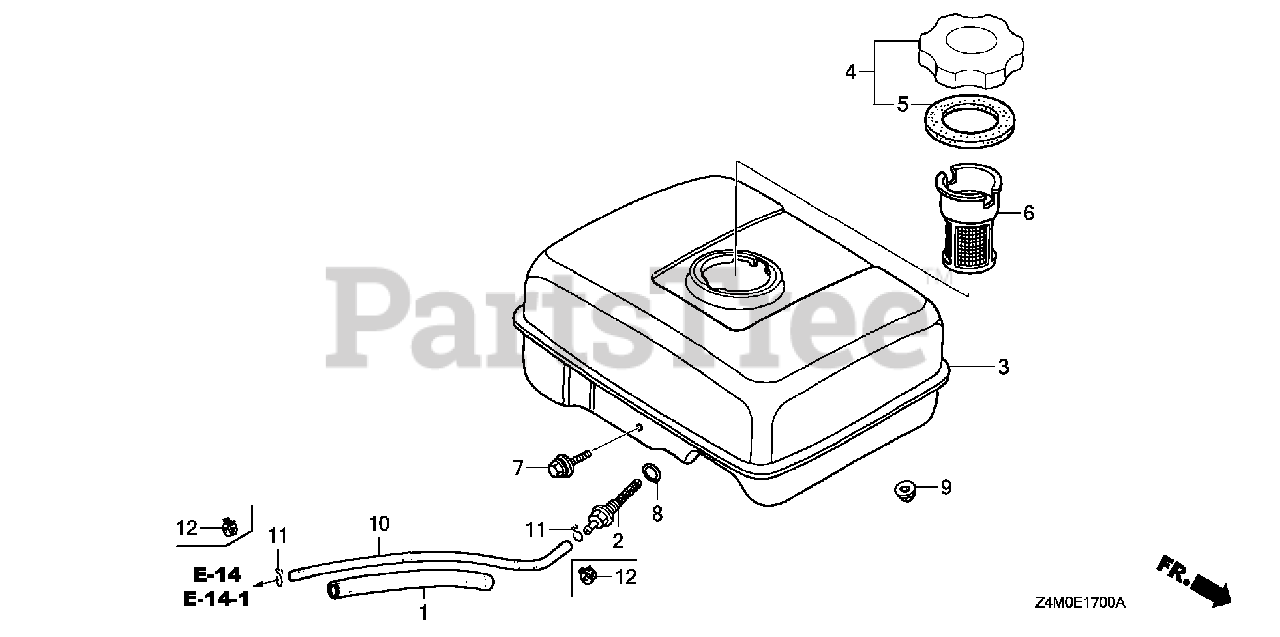

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, Qty 10

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK (Honda Code 1427459).
(Superseded to 16955-ZE1-010)

$9.99

$

In Stock, Qty 10

0

3

Honda 17510-Z0T-000ZA

TANK, FUEL *NH1* (Honda Code 7983620). (BLACK)

$

$

Currently unavailable

3

Honda 17510-Z0T-000ZC

TANK, FUEL *NH31* (Honda Code 7983646). (MCKINLEY WHITE)

$

$

Currently unavailable

4

Honda 17620-Z0T-813

CAP, FUEL FILLER (Honda Code 7441934).
(Superseded to 17620-Z1T-801)

$22.99

$

In Stock, only 2 left!

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, only 3 left!

0

7

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.99

$

In Stock, only 4 left!

0

8

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI) (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

10

Honda 91424-Z4F-801

TUBE, FUEL (4.5X140) (FKM) (Honda Code 8298150).
(Superseded to 91424-Z4F-802)

Note: Use from Engine SN 1268514.

$

$

Not available

10

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Engine SN 1268513.

$59.99

$

In Stock, only 4 left!

0

11

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1268513.

$2.99

$

In Stock, Qty 20+

0

12

Honda 95002-40800-08

CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1268514.

$3.49

$

In Stock, only 3 left!

0
