GX200 DX QAPW (GCAFD) - Honda Engine, Made in India (SN: GCAFD-1000001 - GCAFD-9999999) CRANKCASE COVER Parts Diagram
Engine, Made in India

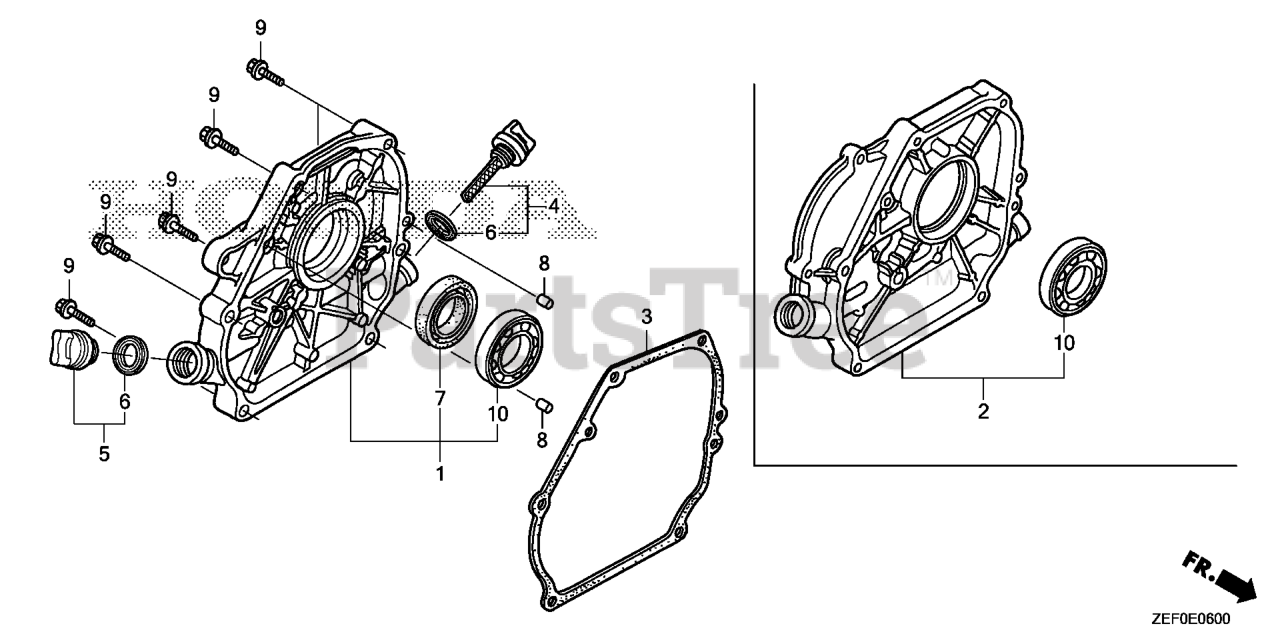

CRANKCASE COVER Parts Diagram
Honda 11300-Z4M-640
COVER ASSY., CRANKCASE
$239.99
$
Usually ships in 3-6 days
Honda 11381-ZH8-801
SEE PART DETAILS - PRI; GASKET, CASE COVER (NON-ASBESTOS) (Honda Code 4723144).
$8.49
$
In Stock, Qty 20+
Honda 15600-Z0T-810
CAP ASSY., OIL FILLER (Honda Code 7346562).
$1.49
$
In Stock, Qty 20+
Honda 15600-Z0T-820
CAP ASSY., OIL FILLER (Honda Code 7346570).
$1.49
$
In Stock, Qty 10
Honda 15625-Z0T-800
GASKET, OIL FILLER CAP (Honda Code 7346588).
$5.99
$
In Stock, Qty 14
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).
$10.99
$
In Stock, Qty 6
Honda 91202-YA0-P01
OIL SEAL (25X41X6) (ARAI) (NOT AVAILABLE)
$0.99
$
Usually ships in 3-6 days
Honda 91202-Z1T-003
OIL SEAL (25X41X6)
$11.99
$
In Stock, only 4 left!
Honda 94301-08140
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).
$3.49
$
In Stock, only 2 left!
Honda 95701-08032-08
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2602241).
$3.49
$
Usually ships in 3-6 days
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).
$27.99
$
In Stock, only 4 left!
