GX200 QTP2 (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) CONTROL BOX Parts Diagram

Engine, Made in Japan

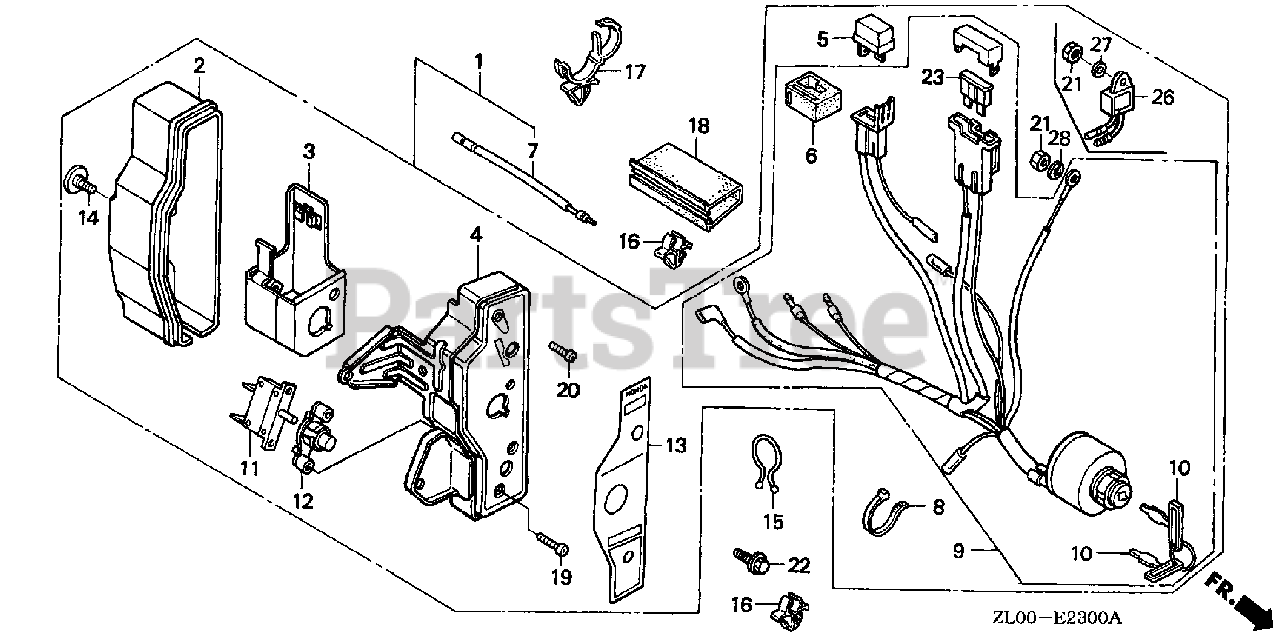

CONTROL BOX Parts Diagram

  • Title

1

Honda 31610-ZH8-W52ZB

BOX ASSY., CONTROL (EXP,10A) *R8* (BRIGHT RED)

Note: Use from Engine SN 1156171. (Honda Code 6064687).

$

$

Currently unavailable

2

Honda 31612-ZE2-003

CASE, CONTROL

Note: Use from Engine SN 1156171. (Honda Code 2095875).

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: Use from Engine SN 1156171. (Honda Code 2095883).

$20.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZB

PANEL, CONTROL *R8* (BRIGHT RED)

Note: Use from Engine SN 1156171. (Honda Code 4089207).

$

$

Currently unavailable

7

Honda 32197-ZE1-003

SUB-HARNESS

Note: Use from Engine SN 1156171. (Honda Code 4331096).

$13.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

Note: Use from Engine SN 1156171. (Honda Code 0947457).

$5.49

$

In Stock, Qty 9

0

9

Honda 35100-ZH8-R90

SWITCH ASSY., COMBINATION (10A CHG/RCM)

Note: Use from Engine SN 1156171. (Honda Code 4786422).

$176.99

$

Usually ships in 3-6 days

0

10

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: Use from Engine SN 1156171. (Honda Code 0485706).

$13.99

$

In Stock, only 2 left!

0

13

Honda 87529-ZE2-860

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

Note: Use from Engine SN 1156171. (Honda Code 4212486).

$

$

Currently unavailable

14

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: Use from Engine SN 1156171. (Honda Code 1490648).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 91406-ZE2-003

TUBE, FASTENER (30)

Note: Use from Engine SN 1156171. (Honda Code 2159762).

$7.99

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: Use from Engine SN 1156171. (Honda Code 0285643).

$1.49

$

In Stock, Qty 20+

0

21

Honda 94001-04390-0S

NUT, HEX. (4MM)

Note: Use from Engine SN 1156171. (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Engine SN 1156171. (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

23

Honda 98200-31500

FUSE, BLADE (15A)

Note: Use from Engine SN 1156171. (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

26

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 1156171. (Honda Code 5858444).

$59.99

$

In Stock, only 3 left!

0

27

Honda 94101-04800

WASHER, PLAIN (4MM)

Note: Use from Engine SN 1156171. (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Engine SN 1156171. (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0
