GX200 UH2 VXU1 (GCBDH) - Honda Engine, Made in China (SN: GCBDH-1000001 - GCBDH-9999999) CONTROL Parts Diagram
Engine, Made in China

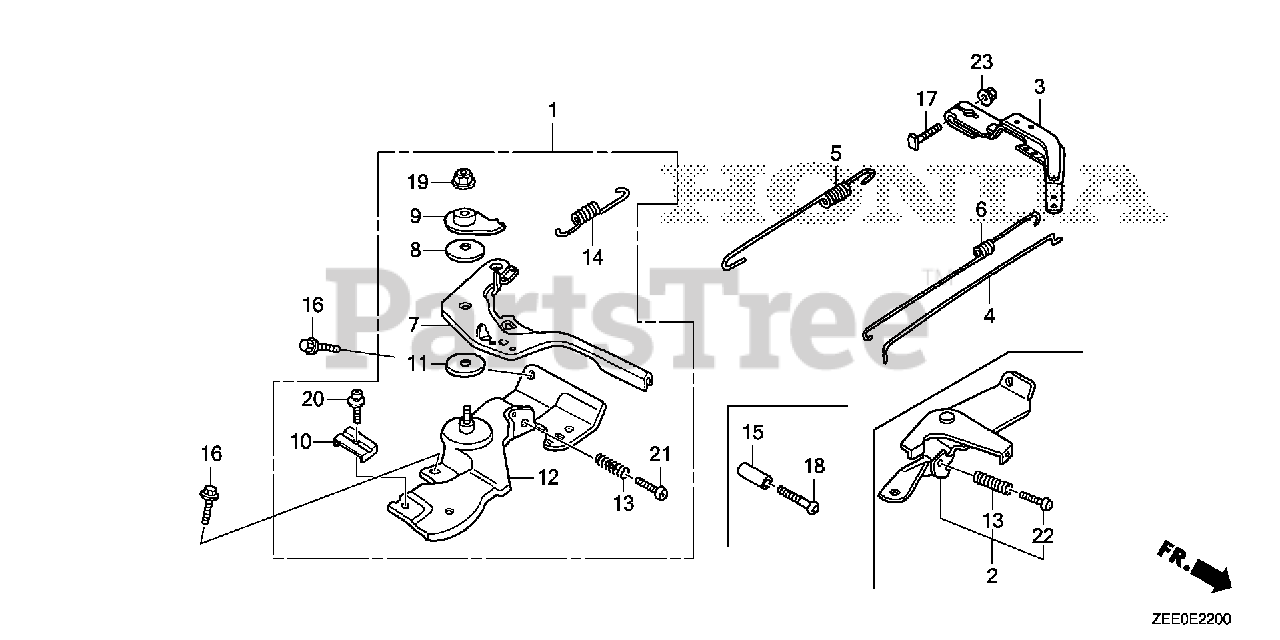

CONTROL Parts Diagram
Honda 16500-ZCW-930
CONTROL ASSY.
$21.99
$
Usually ships in 3-6 days
Honda 16551-ZL0-000
ARM, GOVERNOR
$16.99
$
In Stock, only 1 left!
Honda 16555-ZE1-000
ROD, GOVERNOR (Honda Code 1427319).
$4.49
$
In Stock, Qty 12
Honda 16561-ZL0-U30
SPRING, GOVERNOR
$4.49
$
Usually ships in 3-6 days
Honda 16562-ZE1-020
SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).
$3.99
$
In Stock, Qty 15
Honda 16584-883-300
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.
$4.99
$
In Stock, only 1 left!
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 20+
Honda 90015-ZE5-010
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).
$2.99
$
In Stock, only 2 left!
Honda 93500-05030-0A
SEE PART DETAILS - PRI; SCREW, PAN (5X30)
$1.49
$
Usually ships in 3-6 days
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
