GX200 UT2 TXD1/A (GCBTT) - Honda Engine, Made in Thailand (SN: GCBTT-2000001 - GCBTT-9999999) CONTROL BOX Parts Diagram

Engine, Made in Thailand

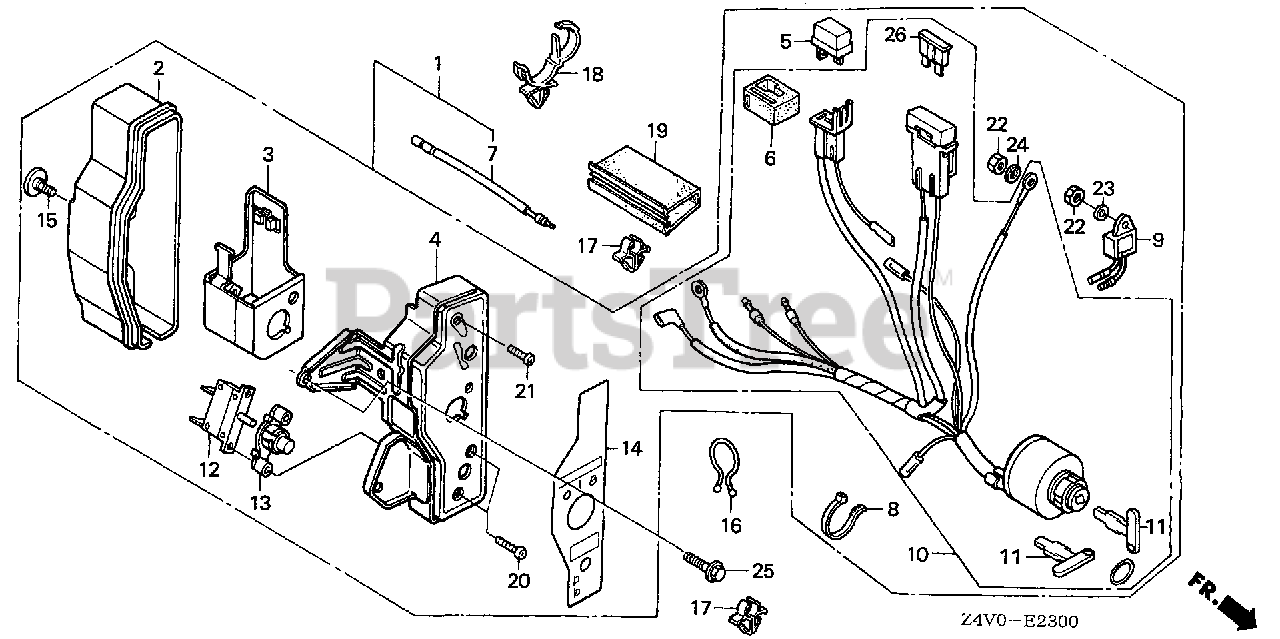

CONTROL BOX Parts Diagram

  • Title

1

Honda 31610-Z4T-843ZB

BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

$229.99

$

Usually ships in 3-6 days

0

2

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$24.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$20.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE1-003ZG

PANEL, CONTROL *R280* (POWER RED)

$68.99

$

Usually ships in 3-6 days

0

5

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$45.99

$

In Stock, only 2 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR (Honda Code 2026631).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$13.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND (Honda Code 0947457).

$5.49

$

In Stock, Qty 9

0

9

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$59.99

$

In Stock, only 4 left!

0

10

Honda 35100-ZE1-812

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3629060).

$174.99

$

Usually ships in 3-6 days

0

11

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$13.99

$

In Stock, only 2 left!

0

12

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A) (Honda Code 1751288).

$38.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$22.99

$

Usually ships in 3-6 days

0

14

Honda 87529-Z4T-840

MARK, CONTROL BOX (EXTERNAL)

$17.99

$

Usually ships in 3-6 days

0

15

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90682-ZE1-000

CLIP, CORD (Honda Code 3629169).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK) (Honda Code 1181965).

$10.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$7.99

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 20+

0

22

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

26

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

$1.99

$

In Stock, only 3 left!

0
