GX200 VAA (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

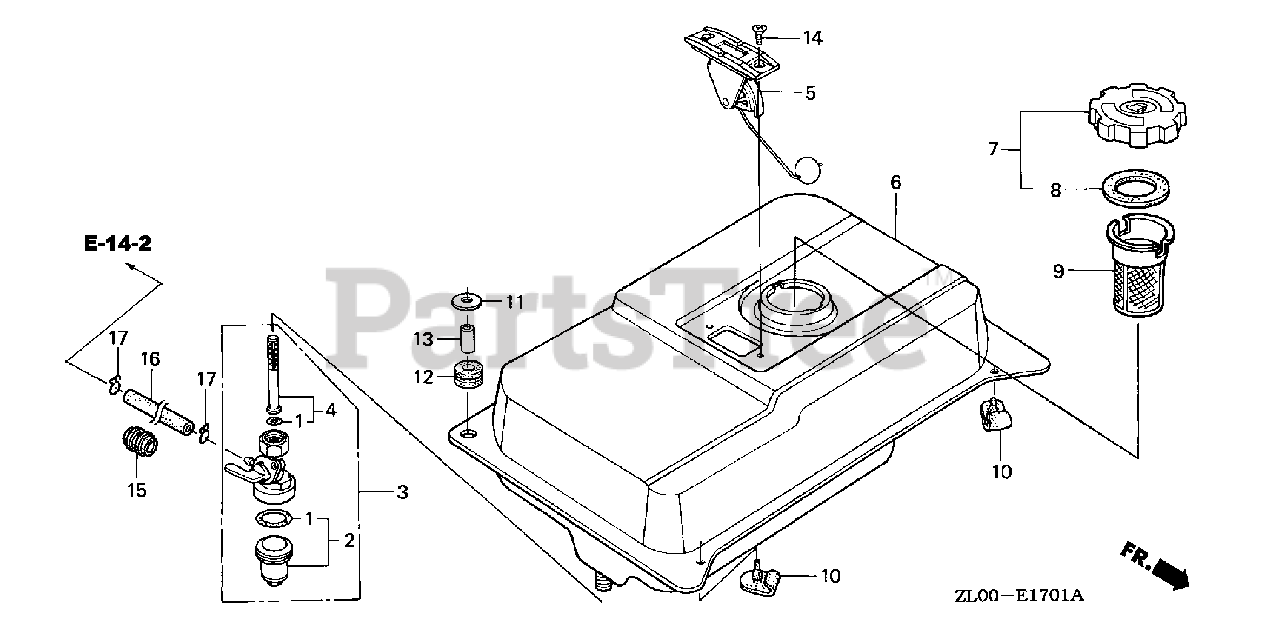

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL; USE AS NEEDED)

Note: (Honda Code 1176726).

$32.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

CUP, FUEL STRAINER

Note: (Honda Code 1076439).

$33.99

$

In Stock, only 2 left!

0

3

Honda 16950-898-632

PETCOCK ASSY.
(Superseded to 16950-898-633)

Note: (Honda Code 3416468).

$64.99

$

In Stock, only 3 left!

0

4

Honda 16952-883-005

SCREEN SET

Note: (Honda Code 0674580).

$21.99

$

Usually ships in 3-6 days

0

5

Honda 17505-ZB2-003

METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

Note: (Honda Code 1496660).

$29.99

$

In Stock, only 2 left!

0

6

Honda 17510-ZB2-000ZB

TANK, FUEL *R8* (BRIGHT RED)
(Superseded to 17510-ZB2-000ZM)

Note: (Honda Code 4031761).

$248.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: (Honda Code 5344817).

$

$

Not available

8

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: (Honda Code 4608725).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17672-ZE2-W01

FILTER, FUEL

Note: (Honda Code 4270864).

$14.99

$

In Stock, only 2 left!

0

10

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

Note: (Honda Code 1497346).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

Note: (Honda Code 0512277).

$

$

Not available

12

Honda 90852-898-000

RUBBER, CONTROL BOX

Note: (Honda Code 1106814).

$5.99

$

In Stock, only 2 left!

0

13

Honda 91552-898-000

COLLAR, CONTROL BOX

Note: (Honda Code 1106855).

$5.99

$

In Stock, only 3 left!

0

14

Honda 93600-05010-0A

SCREW, FLAT (5X10)

Note: (Honda Code 0181529).

$1.49

$

In Stock, Qty 10

0
