GX200 VX/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-9999999) RECOIL STARTER (3) Parts Diagram

Engine, Made in Japan

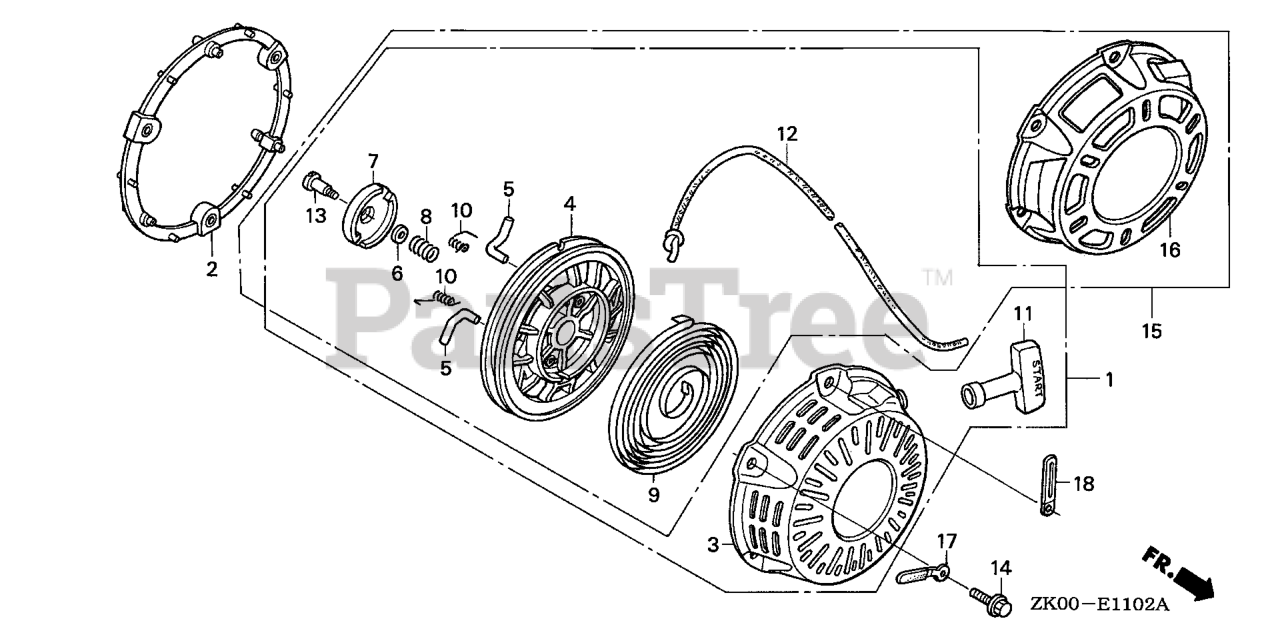

RECOIL STARTER (3) Parts Diagram

  • Title

1

Honda 28400-Z0T-003ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 1937023.

$85.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0T-003ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 1937023.

$98.99

$

In Stock, only 1 left!

0

2

Honda 28405-ZL0-000ZA

SPACER, RECOIL STARTER MOUNTING *NH1* (BLACK)

Note: Use from Engine SN 1937023.

$28.99

$

Usually ships in 3-6 days

0

2

Honda 28405-ZL0-000ZD

SPACER, RECOIL STARTER MOUNTING *R280* (POWER RED)

Note: Use from Engine SN 1937023.

$11.99

$

Usually ships in 3-6 days

0

3

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (Honda Code 7346836). (POWER RED)

Note: Use from Engine SN 1937023.

$111.99

$

In Stock, only 1 left!

0

3

Honda 28410-ZH8-003ZB

CASE, RECOIL STARTER *NH1* (Honda Code 4193058). (BLACK)

Note: Use from Engine SN 1937023.

$135.99

$

Usually ships in 3-6 days

0

4

Honda 28421-ZH8-801

REEL, RECOIL STARTER (Honda Code 7611965).

Note: Use from Engine SN 1937023.

$32.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZH8-801

RATCHET, STARTER (Honda Code 7611973).

Note: Use from Engine SN 1937023.

$6.49

$

In Stock, Qty 6

0

6

Honda 28431-ZH8-801

PLATE, FRICTION (Honda Code 7611981).

Note: Use from Engine SN 1937023.

$4.99

$

In Stock, only 3 left!

0

7

Honda 28433-ZH8-801

GUIDE, RATCHET (Honda Code 7611999).

Note: Use from Engine SN 1937023.

$8.49

$

Usually ships in 3-6 days

0

8

Honda 28441-ZH8-801

SPRING, FRICTION (Honda Code 7612005).

Note: Use from Engine SN 1937023.

$3.99

$

In Stock, only 2 left!

0

9

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

Note: Use from Engine SN 1937023.

$17.99

$

In Stock, Qty 12

0

10

Honda 28443-ZH8-801

SPRING, RETURN (Honda Code 7612013).

Note: Use from Engine SN 1937023.

$3.49

$

In Stock, Qty 6

0

11

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use from Engine SN 1937023.

$7.99

$

In Stock, only 2 left!

0

12

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55") (Honda Code 3683968).

Note: Use from Engine SN 1937023.

$11.99

$

In Stock, Qty 15

0

13

Honda 90003-ZH8-801

SCREW, SETTING (Honda Code 7613474).

Note: Use from Engine SN 1937023.

$3.99

$

In Stock, only 4 left!

0

14

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

Note: Use from Engine SN 1937023.

$1.99

$

In Stock, Qty 6

0
