GX240 HA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

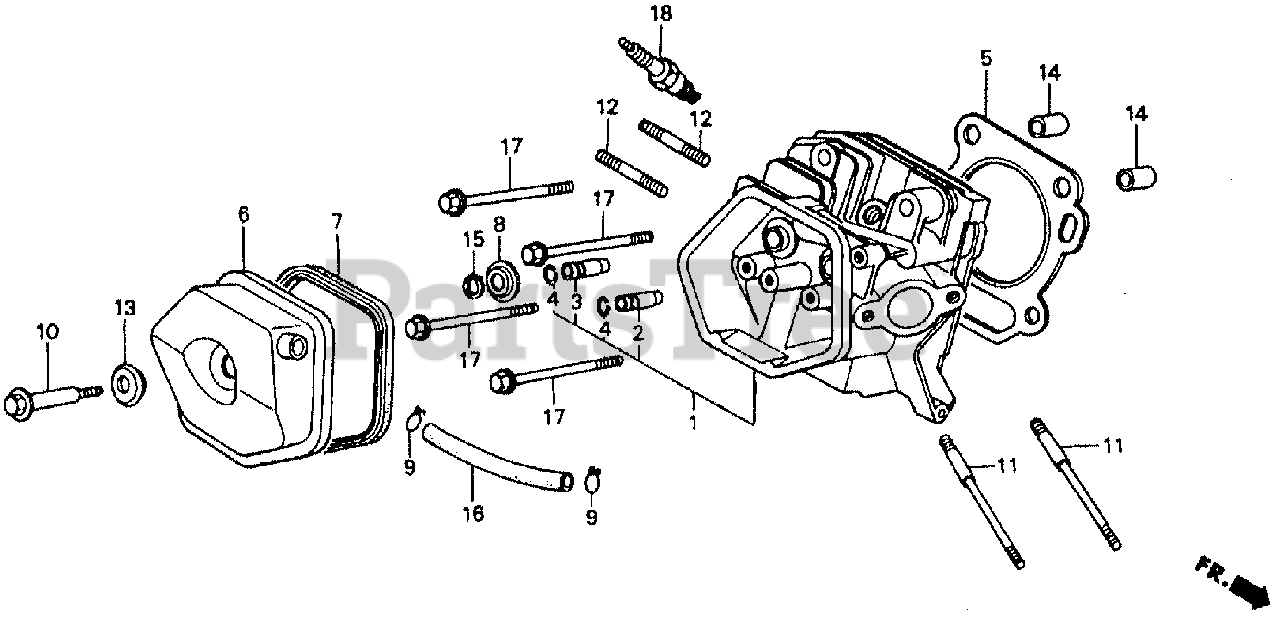

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE2-030

CYLINDER HEAD (Honda Code 2157311).

$

$

Not available

2

Honda 12204-ZE2-306

GUIDE, VALVE (OS) (Honda Code 4179164).

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS) (Honda Code 2089563).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3678539).
(Superseded to 12251-ZE2-801)

$13.99

$

In Stock, only 1 left!

0

6

Honda 04108-ZE2-000

SEE PART DETAILS - PRI; COVER KIT, HEAD (Honda Code 4342820).

Note: Use from Engine SN 1014290.

$

$

Not available

6

Honda 12310-ZE2-000

COVER, HEAD (Honda Code 2025401). (NOT AVAILABLE)

Note: Use up to Engine SN 1014289.

$

$

Currently unavailable

7

Honda 12391-ZE2-000

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD COVER (Honda Code 2025419).
(Superseded to 12391-ZE2-020)

Note: Use up to Engine SN 1086328.

$10.99

$

In Stock, Qty 20+

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$10.99

$

In Stock, Qty 20+

0

8

Honda 14775-ZE2-010

SEAT, VALVE SPRING (Honda Code 2157485).

$3.49

$

In Stock, only 4 left!

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90042-ZE2-000

BOLT, STUD (8X123) (Honda Code 2027043).

$8.49

$

In Stock, only 3 left!

0

12

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (Honda Code 2027050).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32) (Honda Code 2663433).

$2.99

$

In Stock, Qty 7

0

13

Honda 90441-ZE2-010

WASHER, HEAD COVER (Honda Code 2293918).

$5.99

$

In Stock, Qty 5

0

14

Honda 94301-12200

PIN A, DOWEL (12X20) (Honda Code 0165324).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 94510-11000

CIRCLIP (OUTER) (11MM) (Honda Code 0229633).

$0.99

$

Usually ships in 3-6 days

0

16

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (Honda Code 4537312). (11X105)

Note: Use from Engine SN 1014290.

$35.99

$

In Stock, only 1 left!

0

16

Honda 95005-80001-30M

BULK HOSE, VACUUM (8X1000) (Honda Code 5339163). (8X100)

Note: Use up to Engine SN 1014289.

$16.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

BOLT, FLANGE (10X80) (Honda Code 2545341).

$3.99

$

In Stock, only 1 left!

0

18

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

Note: (Optional).

$3.49

$

In Stock, only 1 left!

0

18

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, only 1 left!

0
